IP Fabric v7.2

Upgrade Version Policy

We support the following upgrade paths:

  • The latest version in the previous major line → any version in the current major line (for example, 6.10.7 → 7.2.20).
  • Any version in the current major line → any newer version in the current major line (for example, 7.0.15 → 7.2.20).

Clearing Browser Cache

After upgrading IP Fabric to a newer version, you should see the Your application has been updated and must be refreshed dialog in the main GUI.

It is usually sufficient to just click the Refresh button.

However, in case of issues with the main GUI or if you did not see the mentioned dialog, please force refresh your browser cache.

The key combination for doing this depends on your operating system. In your browser window with your IP Fabric appliance’s URL open, use one of the following key combinations:

  • Windows: Ctrl + F5
  • macOS: Command + Shift + R
  • Linux: Ctrl + F5

This will only affect the browser cache for the IP Fabric appliance.

Known Issues

License or Database Errors After Upgrade

If the IP Fabric GUI redirects to the status page after an upgrade and displays errors such as License Error, ArangoDB Disconnected, or Failed to load initial app data, this may indicate an issue with the ArangoDB configuration.

"Failed to load initial app data" error

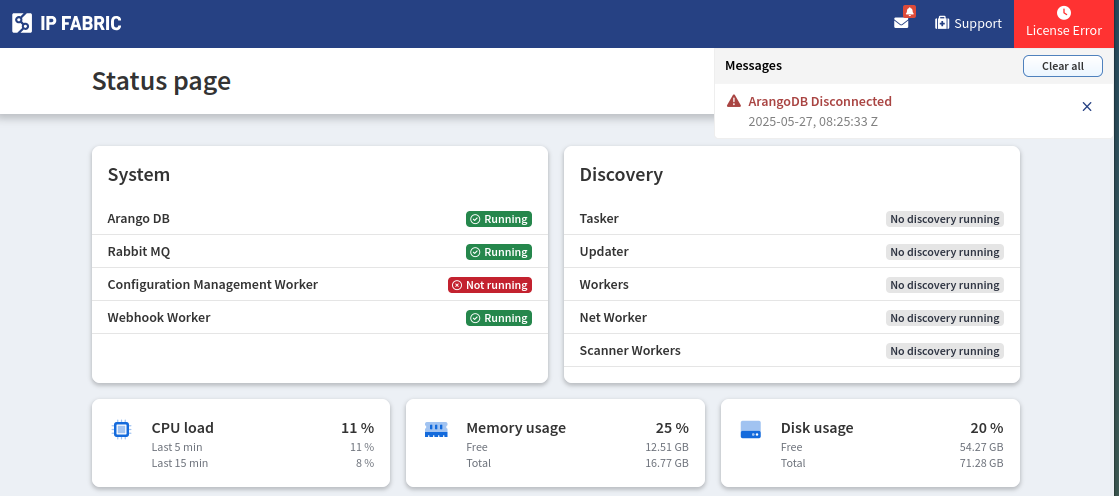

License error

To diagnose the issue:

  1. Log in to the IP Fabric appliance via CLI and switch to the root user using sudo -i.

  2. Check if ArangoDB is listening on port 8529 via IPv6 (expected for IP Fabric 7.2):

    root@IPF:~# lsof -i | grep 8529 | grep LISTEN
arangod      952    arangodb   26u  IPv6   19501      0t0  TCP *:8529 (LISTEN)

    If ArangoDB is bound to IPv4 instead, this likely causes the error:

    root@IPF:~# lsof -i | grep 8529 | grep LISTEN
arangod     874 arangodb   26u  IPv4  20599      0t0  TCP *:8529 (LISTEN)

  3. Verify the arangod.conf file in /etc/arangodb3 is a symbolic link to arangod.conf.ipf. The directory should show:

    root@IPF:~# cd /etc/arangodb3
root@IPF:/etc/arangodb3# ls -lsa | grep arangod.conf
0 lrwxrwxrwx   1 root root    16 Nov 27  2023 arangod.conf -> arangod.conf.ipf
4 -rw-r--r--   1 root root  1687 Feb 11 12:07 arangod.conf.ipf
4 -rw-r--r--   1 root root  1696 Nov 27  2023 arangod.conf.ipf-orig

If the symlink is missing (i.e., arangod.conf is a regular file):

  1. Run these commands to restore the symlink:

    cd /etc/arangodb3/
mv arangod.conf arangod.conf.bkp
ln -s arangod.conf.ipf arangod.conf
systemctl restart arangodb3

  2. Confirm the symlink exists and ArangoDB uses IPv6:

    root@IPF:/etc/arangodb3# ls -lsa | grep arangod.conf
0 lrwxrwxrwx   1 root root    16 May 27 09:30 arangod.conf -> arangod.conf.ipf
4 -rw-r--r--   1 root root  1697 May 27 09:22 arangod.conf.bkp
4 -rw-r--r--   1 root root  1693 Jan 22  2021 arangod.conf.dpkg-old
4 -rw-r--r--   1 root root  1687 Apr 23 13:42 arangod.conf.ipf
4 -rw-r--r--   1 root root  1696 Mar  4 10:44 arangod.conf.ipf-orig

root@IPF:~# lsof -i | grep 8529 | grep LISTEN
arangod    876 arangodb   26u  IPv6  17979      0t0  TCP *:8529 (LISTEN)

After these steps, the GUI should function correctly.

Fortinet NAT44 and Zone Firewall Tasks Causing Discovery Issues

When NAT44 and Zone Firewall tasks are enabled, discovery processes may hang or experience significant delays when handling Fortinet devices. This can result in failed discoveries or cause devices to be missing from snapshots.

Temporarily disabling both NAT44 and Zone firewall discovery tasks for the fortigate Family (in Settings → Discovery & Snapshots → Discovery Settings → Disabled Discovery Tasks) is the recommended hotfix until this issue is resolved in one of the upcoming releases.

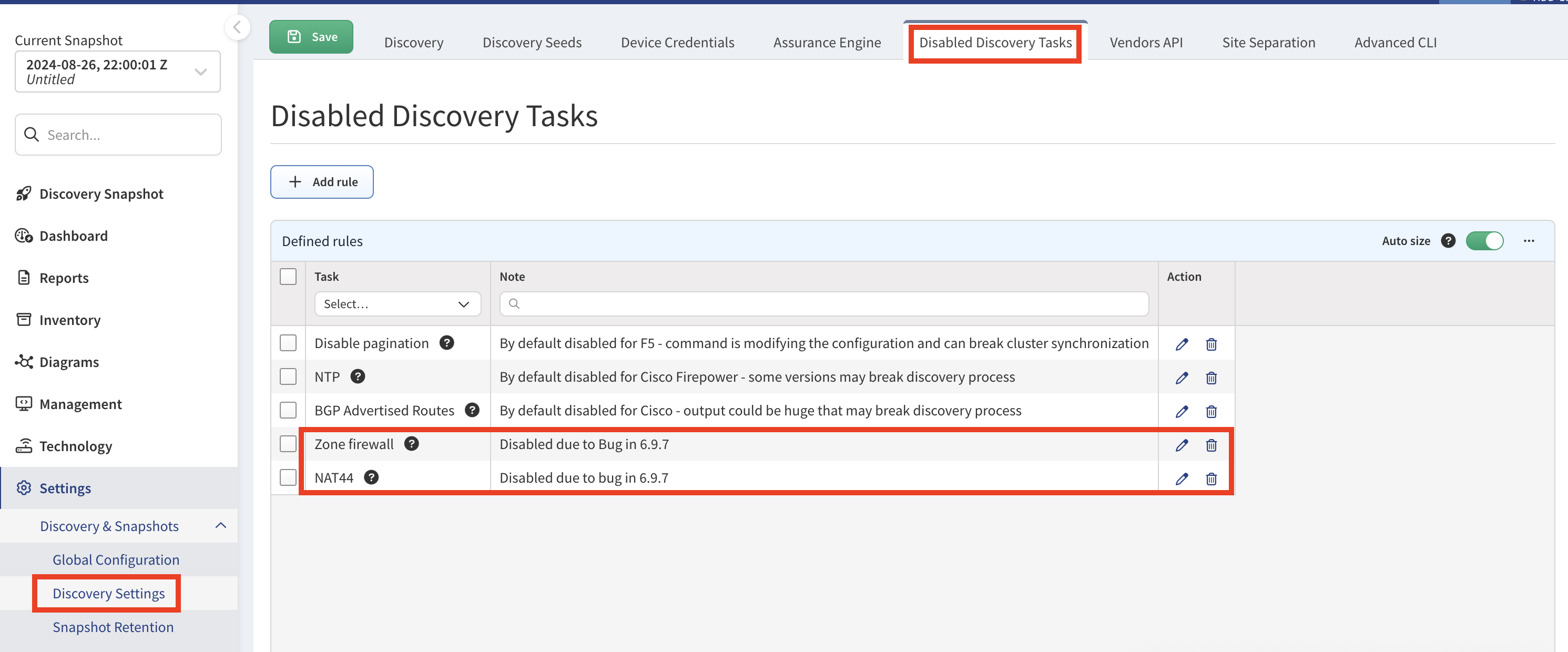

Disabled Discovery Tasks

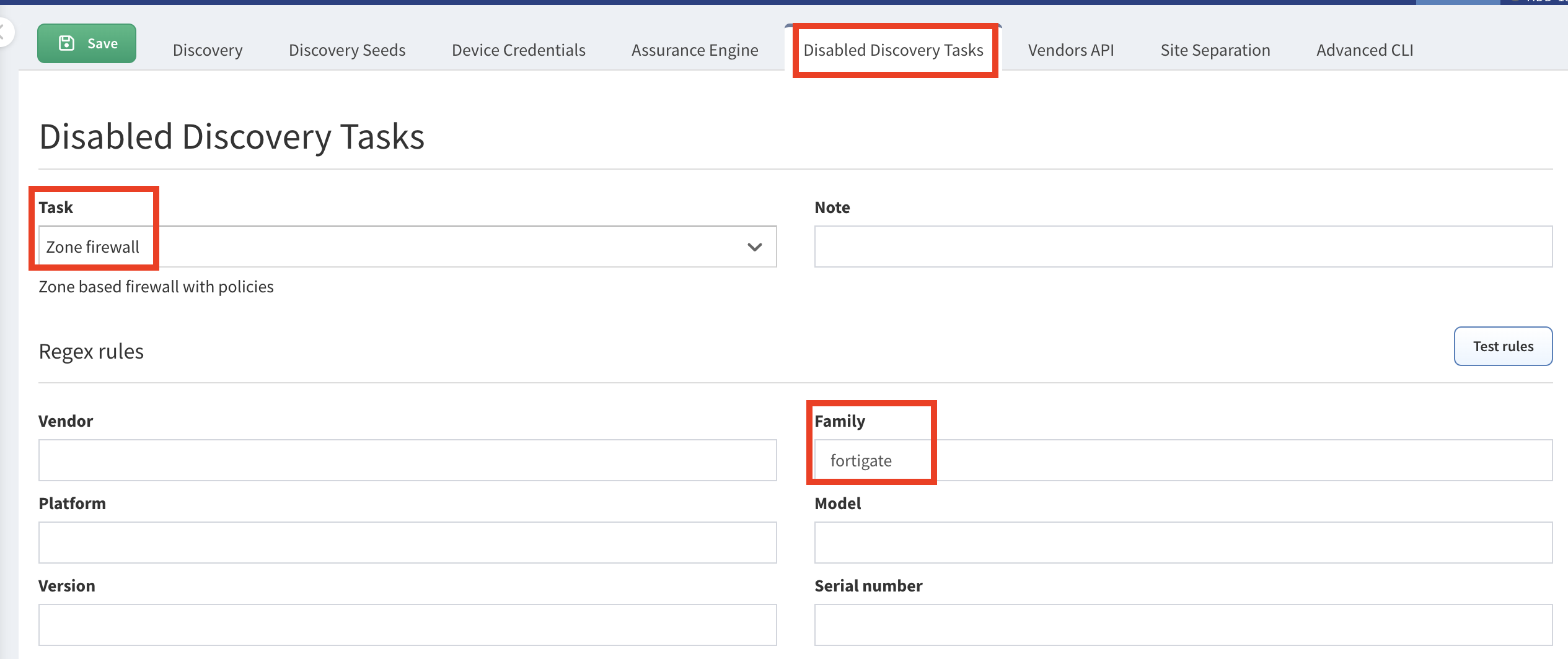

Disable Zone firewall discovery task for FortiGate

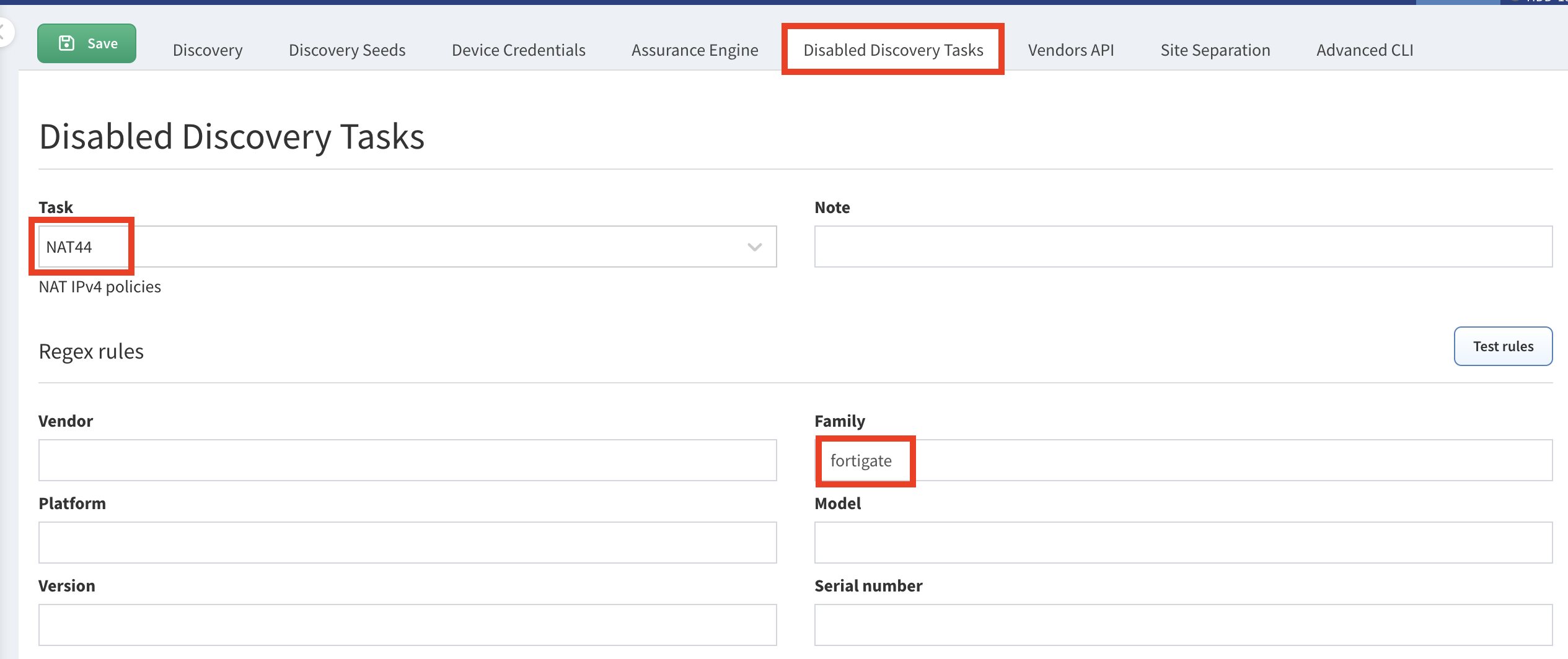

Disable NAT44 discovery task for FortiGate

v7.2.20 (July 9th, 2025; GA)

SHA256 (ipfabric-update-7-2-20+0.tar.zst.sig) = 0e333e98126b9a34e23cd8ee2ff5db416aee9aac2614d129157f57c97717bc67
MD5 (ipfabric-update-7-2-20+0.tar.zst.sig) = 67622e100795fee37e584f87feeb1359
SHA256 (ipfabric-7-2-20+0.qcow2) = 5ac9c60cf289381dcba2bd1b03bea17522b1f122159448cc385ac626cf794a0d
MD5 (ipfabric-7-2-20+0.qcow2) = bd5314a6f06515dfac2f5ff57b5d8dee
SHA256 (ipfabric-7-2-20+0.vmdk) = e13861e6a982f39411093d0d3e3795da2ea398bf44cb902f638881b15e3f92e8
MD5 (ipfabric-7-2-20+0.vmdk) = b400e595c62ed8cbb652c3100678eb3a
SHA256 (ipfabric-7-2-20+0.vhdx.zst) = 3c8968cf8806993d29434c3d5665e5b769fd1f1d02e11de9d06b8cb25099e97f
MD5 (ipfabric-7-2-20+0.vhdx.zst) = 7be005a373e337576afecd846761bb3e
SHA256 (unsupported-ESXi6.7U2-ipfabric-7-2-20+0.ova) = 25e9f95389c5f3ca6f5ff18ec804331323650c41f61473a1ce82870528d0bbcd
MD5 (unsupported-ESXi6.7U2-ipfabric-7-2-20+0.ova) = 7b018c568896450dde8d08b61d790199
SHA256 (unsupported-ESXi7.0-ipfabric-7-2-20+0.ova) = 829a6a602464d2dfb6d1c7aad74bab39c43ec5f753fc55707cadf0334e5f3e75
MD5 (unsupported-ESXi7.0-ipfabric-7-2-20+0.ova) = 009d62b348d54f988f34f5393f5979ee
SHA256 (ESXi8.0-ipfabric-7-2-20+0.ova) = 6d478c4d13495ec38d1d8f10533f34dca0220c475eb9f54bf596699a1c77d1d8
MD5 (ESXi8.0-ipfabric-7-2-20+0.ova) = e6ab51e846ad0d30f6154d37078457db

Fixes

Aruba Central AP Discovery

In this release, we reverted the Aruba Central AP discovery logic from version 6.10 due to issues that arose when Central-managed APs functioned as controllers for other APs, rather than operating solely as individual devices.

v7.2.19 (June 30th, 2025; GA)

Fixes

BGP Communities Filtering

Starting with release 7.2.19, the new BGP communities filtering feature is fully supported on both manual and automated snapshots. Cisco IOS-XR compatibility has also been added.

Configuration Management Process Fails to Close SSH Sessions

Since 7.2.19, the Configuration Management process for HPE arubasw devices now properly terminates SSH connections and correctly detects login banners.

v7.2.17 (June 9th, 2025; GA)

Fixes

Something went wrong Error

After an upgrade a Something went wrong error when accessing the IP Fabric GUI after upgrading was shown. This issue was resolved in the 7.2.17 release but may still occur in rare situations. Clear the browser cache to resolve this issue.

"Something went wrong." error

v7.2.13 (May 21st, 2025; GA)

v7.2.5 (March 17th, 2025; EA)

API Endpoints Deprecation

The below API endpoints have been marked as deprecated and the intention is to remove them in version 7.5.

  • /tables/networks/gatewayRedundancy
  • /tables/networks/networks

System Administration UI Removal

The System Administration UI on port 8443 has been deprecated in version 7.0 and is no longer accessible. All its functionalities have been replaced by an alternative:

RBAC Fixes

After reviewing our built-in RBAC policies, we have made the following changes. This is to ensure that the policies are more consistent with the intended use cases. If your roles require access to these endpoints, please create a custom RBAC policy and assign it to the required role(s).

These policies have been removed from the built-in others (ID of read) and moved to settings:

  • POST /os/generate-nimpee-cert: Generate IP Fabric certificate
  • POST /os/upload-nimpee-cert: Upload certificate to platform
  • POST /os/maintenance: Trigger platform maintenance
  • POST /os/snapshots-retention: Trigger snapshot retention
  • POST /os/techsupport: Generate techsupport file
  • POST /os/clean-db: Clean system database
  • POST /jobs/{key}/cancel: Cancel specific job
  • POST /jobs/{key}/force-stop: Force stop running system job
  • POST /jobs/{key}/stop: Stop running system job
  • GET /jobs/{key}/download: Return result of system job
    • With the introduction of the new Configuration Import/Export users without settings policies are able to download and view all settings.
    • Our team is working on a feature to provide RBAC based on the type of file (configuration, snapshot, techsupport). This will be available in a future release.

System upgrade improvements

  • The upgrade UI has switched from basic HTTP authentication to cookie/session-based authentication.
  • Downloading a remote upgrade package via the UI now displays download progress, which is also logged in the systemd journal.
  • Improved timeout management provides better handling on systems with slow disk I/O or during network interruptions.

Layout Optimization for Large Circular Graphs

Circular graphs with over 100 nodes experienced slow rendering and oversized layouts due to complex line-crossing minimization calculations. This also impacted snapshot discovery/loading performance due to prolonged node position caching.

For graphs exceeding 100 nodes, we now automatically apply the universal layout instead of the circular layout. This ensures:

  • Faster rendering (reduced layout computation time)
  • Improved readability of large graphs
  • Optimized snapshot performance (quicker node position caching)

The layout type change (circular → universal) is not yet reflected in API responses or the UI. This visibility will be added in an upcoming release.

New Features

Configuration Import/Export

  • We have developed a new feature that allows you to import and export configurations of the IP Fabric application across multiple IP Fabric instances. More details can be found on the Configuration Import/Export page.

Azure Network Load Balancers (NLB) support

  • Data collection and end-to-end path lookup via NLB nodes are supported. However, path lookup via Azure private links is not supported yet.

    Do not forget to update IAM policy

    To collect Azure Network Load Balancers, the corresponding IAM policy must be updated. You can download the new policy here.

Enhanced BGP Community Controls for Optimized Discovery

  • Introduced per-device, per-protocol (IPv4/IPv6), and per-VRF BGP community configurations to limit downloaded routes during discovery.
  • This feature prioritizes community-based filtering over global thresholds, ensuring precise data collection while reducing processing time. Ideal for large-scale networks with extensive BGP tables. For more information see Routing

Connections between IPsec & VXLAN tunnel endpoints now visible in path-lookup

  • For easier identification of where IPsec and VXLAN tunnels start and end, especially when traversing multiple devices, direct links between tunnel endpoints are now visible in path lookups. More details can be found in IPsec & VXLAN tunnel endpoints.

BGP Route Collection Enhancement

We have introduced filtered BGP route collection support, allowing network administrators to explicitly define which networks to collect. This enables focused BGP route analysis while optimizing system resources across Cisco IOS/IOS-XE, IOS-XR, NX-OS, Juniper JunOS and Arista EOS platforms.

For detailed information about the new API endpoints and configuration options, see BGP Route Collection API.

Improvements

GUI

  • We have updated default tabs settings for consoleServer devices in Device Explorer: added Serial Ports, removed QoS, MAC and Port Channel. This resets previous tab settings for this device type.
  • Edges in topology graphs now support multiple labels, which can be displayed either inline or on separate lines. These settings are customizable in the Visualization Setup panel of the Network Viewer, allowing configuration for each protocol or group type individually.
  • Additional columns were added to Inventory → Interfaces table, all hidden by default:
    • Clearing Type
    • Clearing Value
    • Last Input Type
    • Last Input Value
    • Last Output Type
    • Last Output Value
  • An additional column was added to the Inventory → Devices table and is hidden by default:
    • Credentials Notes
  • Global filter now allows for selecting all possible values of given attribute using the Select all option.

Advanced Filters

  • Device Attribute-Based Advanced Filters now supports Attributes as a device property.

    This allows you to:

    • Filter data using predefined Attributes, such as siteName.
    • Use custom Attributes for more specific filtering.

Discovery Settings

  • Saving discovery settings with missing or expired credentials is now allowed. Users can decide whether the missing data is important for running the discovery or can add the data later. Clear messages and dialogs will inform users of any potential issues.

Network Discovery

  • New Capabilities – Cisco (FTD), Fortinet (FortiGate), PaloAlto (PAN-OS)

    • Support for URL filtering has been added.
    • In Path Lookup under Advanced Packet Options, new search fields are now available:
      • Site category: Matches the name of a URL filter category. Works for both built-in and custom categories. The field accepts regex if multiple categories are needed in the result.
      • URL / DOMAIN: Matches a specific URL against applicable security rules.
  • New Capabilities – PaloAlto (PAN-OS)
    • Support for URL-type objects of External Dynamic List has been added.
  • New Capabilities – Fortinet (FortiGate)
    • Support for URL-type objects of External Resource has been added.

Vendor Support and Improvements

  • Added Silver Peak API key authentication support.
  • Added IPv6 BGP neighbors support for Arista (EOS), Cisco (IOS, IOS-XE, NX-OS), FS (FSOS), PaloAlto (PAN-OS).
  • Added support for IPv6 BGP Route limit - see documentation
    • Arista: EOS
    • Cisco: NX-OS, IOS, IOS-XE, IOS-XR, Viptela
    • Juniper: JunOS
    • Nokia: TiMOS
  • Added URL filtering support in firewall rules for Cisco (FTD), Fortinet (FortiGate), PaloAlto (PAN-OS).
  • Added support for SR-MPLS TE with BGP On-Demand Next Hop (ODN) functionality for Cisco (IOS-XR).
  • Added threat feeds support for FortiGate firewalls (IP lists only).
  • The HP vendor has been renamed to HPE.
  • The bookmark Detail for all AWS devices has changed. The differences are:
    • The Family column value is now empty (previously was set to ec2)
    • The Version column value is now empty (previously was set to 2016-11-15)
  • Added support for Nokia TiMOS version 23 and above

Technology Tables

  • Unmanaged Neighbors Detail – Fixed an issue in the Technology → Interfaces → Connectivity matrix → Unmanaged Neighbors Detail table where Intent Verification rules could incorrectly highlight rows for specific datasets. Unique row IDs have been enforced to resolve the inconsistency.

    Important

    If Intent Verification rules were configured for this table, you may need to trigger their recalculation. To do this, you can either:

    • In local settings of the relevant snapshot(s), toggle “Compute Intent Verification” off, save settings, then toggle the rule back on; or

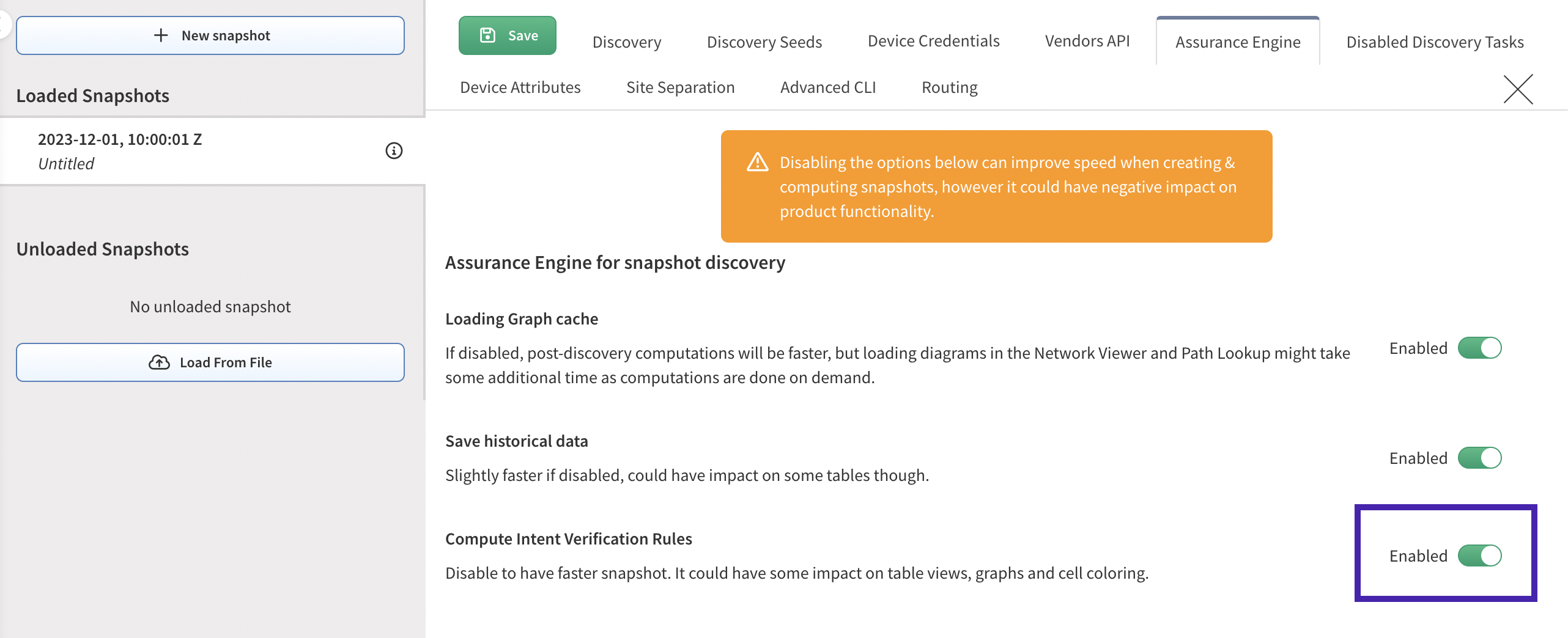

    Toggle "Compute Intent Verification"

    • Manually unload and reload the relevant snapshot(s)

Site separation

  • Devices now automatically inherit their site name from connected peers via CDP/LLDP, STP topology neighbors, or devices in the same L3 network, in order of priority, when rule Try to assign devices without sites based on device neighborship is enabled.

Experimental Features

Newly added features which need to be explicitly enabled in service files. You can enable these yourself using our feature documentation or if you are not comfortable self-enabling these features or need further clarification, contact our Support or Solution Architect team. We will gladly help you.

Configuration Management Optimizations

To accelerate device configuration retrieval, you can try to enable different Git performance optimizations for configuration management.
