Filter by Label

Experimental Feature

Labels are an experimental feature introduced in 8.1, disabled by default. To enable labels, set the ENABLE_LABELS feature flag. See Labels for details.

The Labels Column

Device and interface technology tables include a Labels column showing every label on the object. Where a table has both a device and an interface side, the columns are Device Labels and Interface Labels.

The column lists labels regardless of assignment source. To see each label’s source or edit manual labels, click a row’s labels to open the Labels tab in Device Explorer. See Edit Labels in Device Explorer.

Filtering

To filter by label, click Filters and add a rule for the Labels column. The following operators are available:

  • includes – The object carries at least one of the selected labels, such as region: uk.
  • excludes – The object carries none of the selected labels.
  • includes group – The object carries a label with the selected name, with any value. For example, includes group region matches both region: uk and region: us.
  • excludes group – The object carries no label with the selected name.
  • is empty / is not empty – The object carries no labels, or at least one label.

To need several labels at once, add one rule per label and combine the rules with And.

Autocomplete Shows Assigned Labels Only

When you type a label in the filter value, autocomplete suggests only the labels that are assigned to at least one object in the current snapshot. Labels that exist only in the catalog, and are not assigned to anything in the current snapshot, are not suggested.

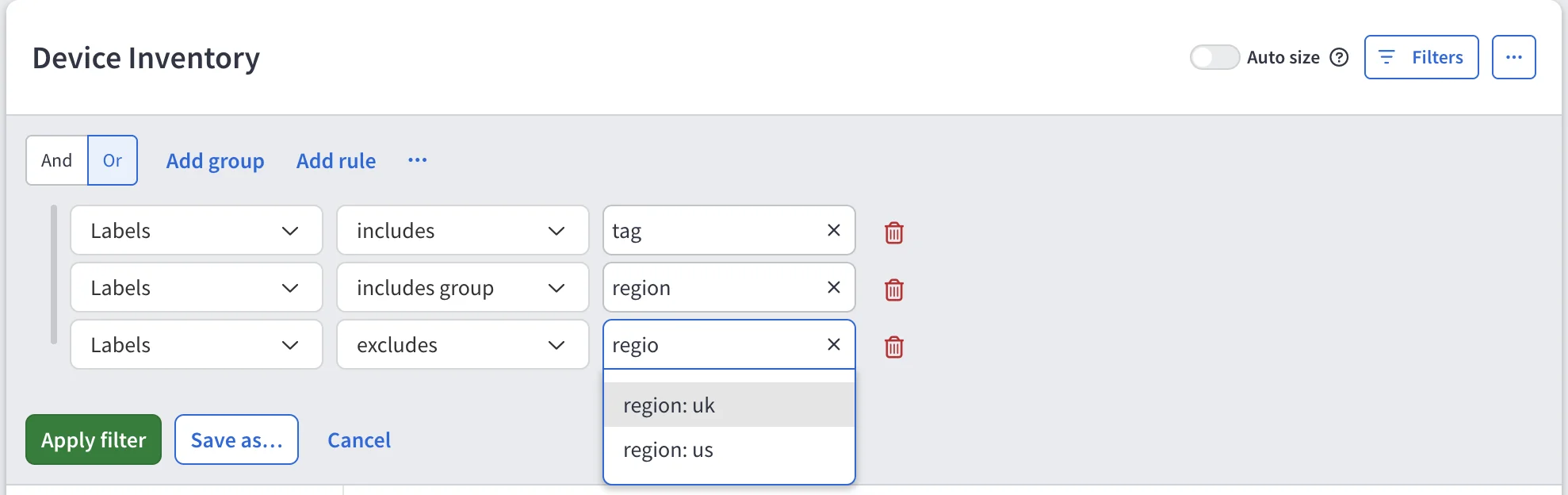

Label filters in Device Inventory

Label filters combine with other filters in the table. You can narrow a technology view to one region, one compliance zone, or one service. Export the result like any other table.

The Labels column is not sortable.

Intent Checks

You can scope an intent check by label. The check then runs only against devices carrying that label, not the whole network. For example, scope a password policy check to devices labeled pci.

Changing label assignments recalculates intent checks that filter on labels. A new discovery is not needed.
