IP Fabric Tables to Excel

In version 7.5.0 of the ipfabric Python SDK a new ipf_to_excel CLI tool was added. After installing the package it can be run from the command line.

This has replaced ipfabric-tables-to-excel which is now deprecated.

Requirements

Required environment variables exported (IPF_URL and IPF_TOKEN or IPF_USERNAME & IPF_PASSWORD) or a .env file located in the current working directory or your home directory.

Requires installing the ipfabric Python SDK with CLI dependencies: pip install ipfabric[cli].

Documentation

IPF Tables to Excel Help

> ipf_to_excel -h
🚀 IP Fabric Tables to Excel Exporter! 🚀
usage: ipf_to_excel.cmd [-h] [-d hostname [hostname ...]] [-sn sn [sn ...]] [-P] [-D] [-f FILENAME] [-s SNAPSHOT] [-b BASE_URL] [-t TOKEN] [-u USERNAME] [-p PASSWORD] [-k] table [table ...]

Fetch tables from IP Fabric and insert into a single excel file with multiple sheets.

positional arguments:
  table                 API or Front end URL for IP Fabric tables to fetch. Can be used multiple times.

options:
  -h, --help            show this help message and exit
  -d hostname [hostname ...], --device-hostname hostname [hostname ...]
                        Device Hostname to fetch data for. Can be used multiple times; default to return all devices.
  -sn sn [sn ...], --device-sn sn [sn ...]
                        Device Serial Number to fetch data for. Can be used multiple times; default to return all devices.
  -P, --preview         Print first 3 rows of each table fetched
  -D, --device-separate
                        Creates a unique Excel Worksheet separately for each device for each table requested. Default is False and will return a single Worksheet for each table requested.
  -f FILENAME, --filename FILENAME
                        Name or Path of the output file
  -s SNAPSHOT, --snapshot SNAPSHOT
                        Snapshot to use which can be a UUID or one of ['last', 'prev', 'lastLocked']with or without `$` for *nix compatability.
  -b BASE_URL, --base-url BASE_URL
                        Base URL for IPFabric API or IPF_URL env variable.
  -t TOKEN, --token TOKEN
                        IP Fabric API Token or IPF_TOKEN env variable.
  -u USERNAME, --username USERNAME
                        IP Fabric username (requires --password) or IPF_USERNAME env variable.
  -p PASSWORD, --password PASSWORD
                        IP Fabric password or IPF_PASSWORD env variable.
  -k, --insecure        Disable SSL Verification.

Usage

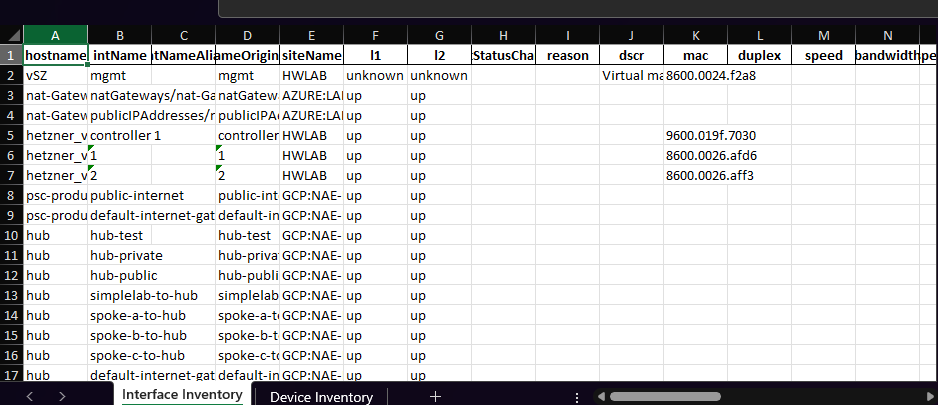

Export multiple tables into a single Excel file with multiple sheets:

Export Multiple Tables.

> ipf_to_excel tables/inventory/devices tables/inventory/interfaces

🚀 IP Fabric Tables to Excel Exporter! 🚀
Exporting data to excel...
Export complete. Check C:\Code\python-ipfabric\output.xlsx
👋 Bye!

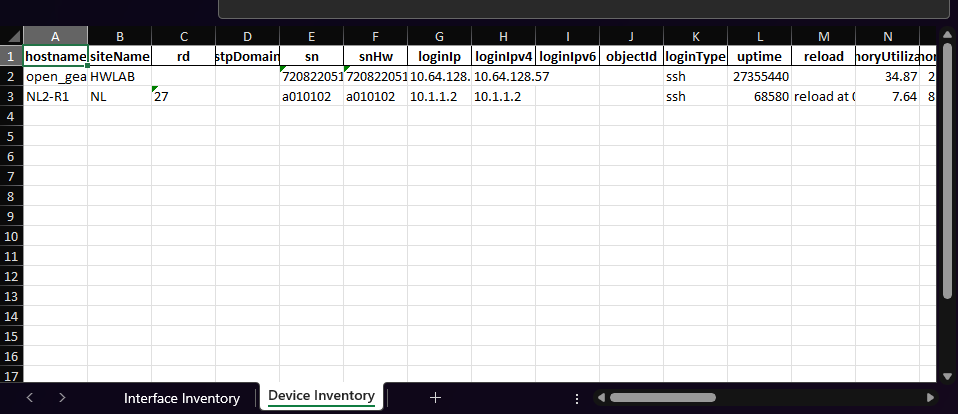

Export multiple tables for specific device(s) based on hostname or IP Fabric unique serial number:

Export Filtered Tables by Hostname.

> ipf_to_excel tables/inventory/devices tables/inventory/interfaces  -d NL2-R1  open_gear.123
> ipf_to_excel tables/inventory/devices tables/inventory/interfaces  -sn 72082205170340  a010102

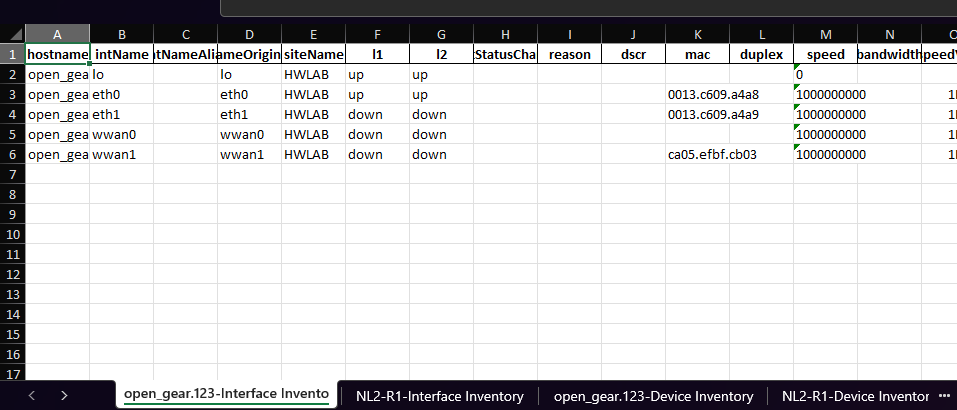

Export multiple tables for specific device(s) based on hostname and create separate Worksheets for each device table combination:

Export Filtered Tables by Hostname with Separate Sheets.

> ipf_to_excel tables/inventory/devices tables/inventory/interfaces  -d NL2-R1  open_gear.123 -D
🚀 IP Fabric Tables to Excel Exporter! 🚀
Exporting data to excel...
Sheet name open_gear.123-Interface Inventory is too long. Truncating to 31 characters.
Export complete. Check C:\Code\python-ipfabric\output.xlsx
👋 Bye!
