IP Fabric v7.9

Upgrade Version Policy

We support the following upgrade paths:

  • The latest version in the previous major line → any version in the current major line (for example: 6.10.7 → 7.3.25).
  • Any version in the current major line → any newer version in the current major line (for example: 7.0.15 → 7.3.25).
  • An upgrade to 7.5 can be only performed from version 7.3.25 or newer.
  • An upgrade to 7.10 can be only performed from version 7.5.14 or newer.

Clearing Browser Cache

After upgrading IP Fabric to a newer version, you should see the Your application has been updated and must be refreshed dialog in the main GUI.

It is usually sufficient to just click the Refresh button.

However, in case of issues with the main GUI or if you did not see the mentioned dialog, please force refresh your browser cache.

The key combination for doing this depends on your operating system. In your browser window with your IP Fabric appliance’s URL open, use one of the following key combinations:

  • Windows: Ctrl + F5
  • macOS: Command + Shift + R
  • Linux: Ctrl + F5

This will only affect the browser cache for the IP Fabric appliance.

Known Issues

Google Cloud Platform (GCP)

  • Using separate Vendor API configurations to discover the Shared VPC host and service projects leads to inconsistent results. This will be fixed in a future release. More details regarding the issue can be seen here.
  • For GCP interconnect paths, the Cloud Router (control plane) appears in the path lookup. This will be updated in a future release.

Breaking Changes

Data Loss on User Deletion

If a user is deleted, all saved customizations created by that user are permanently deleted and cannot be recovered. For more details, please refer to Delete user page.

v7.9.4 (February 5th, 2026; GA)

SHA256 (ipfabric-update-7-9-4+0.tar.zst.sig) = 9144c144100174baf7a605dfc070c04dab1f732ec7de1a158317c527ef0ded90
MD5 (ipfabric-update-7-9-4+0.tar.zst.sig) = 89ea04a9846d4afef4a24f880aba774f
SHA256 (ipfabric-7-9-4+0.qcow2) = 9f046daa45ba9a5bb076733d302bbab4c79afaf9402007e58375bd70120d8451
MD5 (ipfabric-7-9-4+0.qcow2) = e20203cad7dfa910a588c88c24e0349c
SHA256 (ipfabric-7-9-4+0.vmdk) = 19a41be89028d9325143a915e0d78483c89048cc7bf2cb349b446986d8a05888
MD5 (ipfabric-7-9-4+0.vmdk) = 85441314f6574988e8550f1846763788
SHA256 (ipfabric-7-9-4+0.vhdx.zst) = 8dd2d1a601bcace4b22de9e5dbb32970b72d46cd5f63e3f3d549f648f283d42a
MD5 (ipfabric-7-9-4+0.vhdx.zst) = 667e81724f4abde193d541ded450206c
SHA256 (unsupported-ESXi6.7U2-ipfabric-7-9-4+0.ova) = d169a345755ba3f53768fc4d03785f912f63a82e76d53aef33e702b60e1bb256
MD5 (unsupported-ESXi6.7U2-ipfabric-7-9-4+0.ova) = d55bdbfcd8bff73d381723ebbbd3f02a
SHA256 (unsupported-ESXi7.0-ipfabric-7-9-4+0.ova) = 8c7d2ed9e93341cf0e555800051752a4b2a248d10aedccfb172baaa45d681c28
MD5 (unsupported-ESXi7.0-ipfabric-7-9-4+0.ova) = 84bb3be636282a33cb5c1fc1c2aef45d
SHA256 (ESXi8.0-ipfabric-7-9-4+0.ova) = dcd11ab08ab19d1515f081ec0943527fc78d09a9eef33442b1bf31062755f4ff
MD5 (ESXi8.0-ipfabric-7-9-4+0.ova) = d1b2c67ec60f86cd990bc9aff6eca9f9

Improvements

  • Password changes now require the acting user to verify their own password in addition to setting the new password for the target account. This improves protection against unauthorized changes made from unattended or unlocked admin sessions.
  • Saved diagram views are once again visible to all local users, rather than being limited to the user who created them.

Bug Fixes

  • Fixed upgrade portal getting stuck in Upgrade process initializing status after a failed download and second upgrade attempt.
  • Resolved ipf-connection-tester failure with ValidationError: must not be undefined when running SSH/telnet tests.
  • Fixed missing routes parsing on HPE Aruba CX devices.
  • Fixed CSV download error Couldn't download - Network Issue and restored API export of full JSON for Platforms → Stacks → Members.
  • Fixed missing HPE Aruba APs in Inventory → Devices caused by uiVendorList.find is not a function.
  • Fixed error Could not find data for the gallery ID for Azure mapping.
  • Corrected parsing errors for commands/huawei/_vrp/mpls/lspVerbose on Huawei VRP devices.
  • Corrected parsing errors for commands/cisco/_nxos/interface on Cisco NX-OS devices.
  • Corrected parsing errors for commands/cisco/controllersOptics on Cisco devices.
  • Corrected parsing errors for commands/fs/_fsos/mlagPeer to handle MLAG peer absence on FSOS devices.
  • Corrected LLDP neighbor port mapping and restored missing neighbors on HPE Comware devices.

v7.9.3 (January 14th, 2026; GA)

Improvements

Path Lookup

  • Fixed a performance regression that caused path lookup queries to return results significantly slower compared to previous versions.

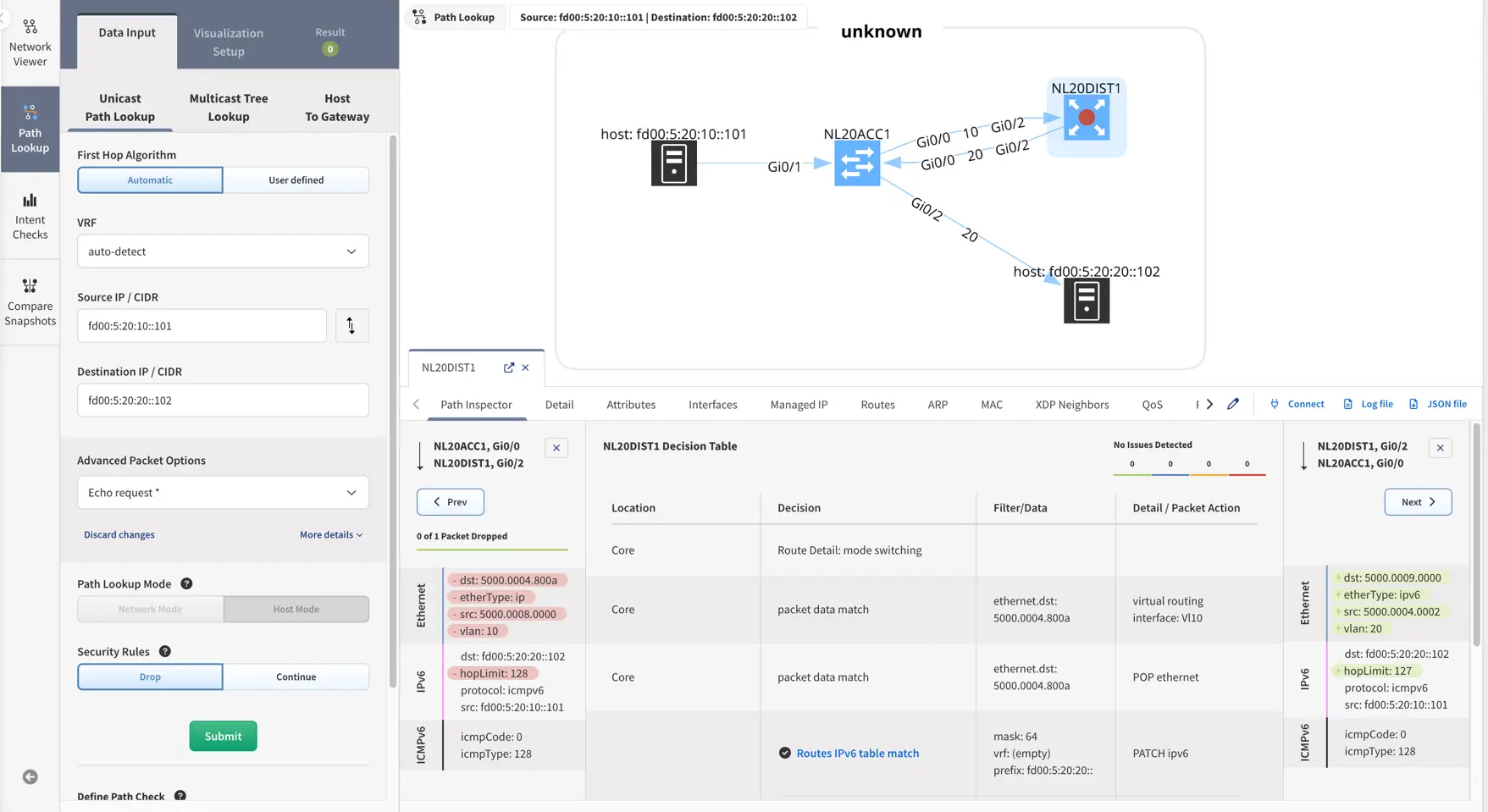

  • Path Lookup has been extended to support IPv6 for both Unicast and Host to Gateway scenarios. The following technologies are now supported for IPv6 path analysis: routing, security evaluation, 6in4, GRE, and IPsec.


Limitations

NAT and PBR are not yet supported for IPv6 lookups.

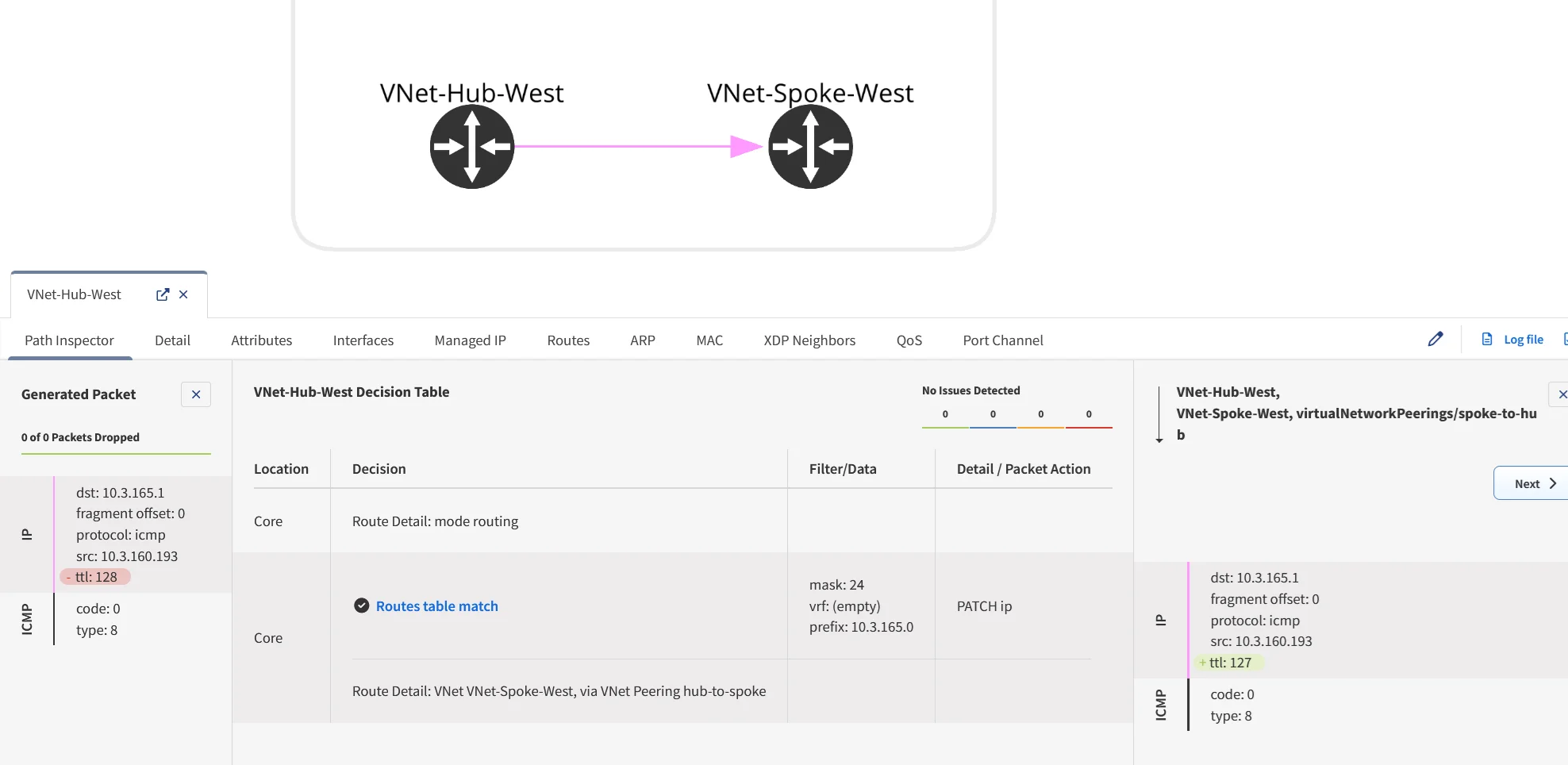

  • Path Lookup has been extended to support Layer 3 routing between cloud-only devices with no interface names.


  • It is now possible to display interface descriptions on diagram edges in the form of line cap labels. Example can be seen on this page.
Cloud
  • New device icons for the AWS and Azure clouds in network and path-lookup diagrams to improve navigation.

AWS icons Azure icons

  • Added support for the Azure Firewall - classic rules and policy-based firewall, and support for network, application, and DNAT rules.
    • Limitations:
      • Application rules with FQDN tags are not supported.
      • DNAT rules with FQDN are not supported.
      • Azure Firewall deployed in vWAN is not supported.
  • Added support for GCP Partner Interconnect.
Meraki

Technology Tables

Vendor Support

  • Check Point Gaia – Improved NTP data collection by supporting the extended ntpq command, providing detailed NTP source information. For more details, see Extend command to get better NTP results.
  • GCP – Added support for VPC Network Peering configured between VPC networks in different Google Cloud projects.
  • Azure – Improved security evaluation for Azure Firewall.
  • Palo Alto
    • Now supports AAA, NTP, SNMP, Syslog, OSPFv3 tasks and IPv4 and IPv6 route summary tables.
  • Fortinet
    • Now supports IPv4 and IPv6 route summary tables.
  • Meraki
    • Now supports switchports on LAN side for firewalls, port-channel and management interface for switches.
    • Corrected xDP interface numbering for firewalls.
  • Cisco
    • Now supports IPv6 AAA, ACL, SNMP and Syslog tasks on NX-OS and IPv6 route summary tables on ASA, ACI, IOS XR, NX-OS.
  • Aruba IAP - AOS 10+
    • Virtual Controllers are no longer created as devices in IP Fabric due to architectural changes introduced in AOS 10.
    • The cluster group name is now displayed in a new column, AP Cluster Name, within the table: Technology/Wireless/Access points.

Password Security

  • Password validation has been strengthened in both the UI and API. Passwords must be 8–200 characters long and include at least 3 of 5 character categories (uppercase, lowercase, numerals, special ASCII, Unicode alphabetic). More details on Authentication page.
  • When changing a password, users are now required to provide their current password for verification. This additional security measure helps prevent unauthorized password changes if a session is compromised or left unattended. The user must have admin privileges, and the password must match the current session. If an incorrect password is provided, the session will be immediately invalidated and the user will be logged out.

Upgrade & System Stability

  • We have addressed edge cases where PostgreSQL might not have been configured correctly during upgrades. Additional checks and safeguards now ensure consistent and reliable system configuration. The installation process has also been improved to better handle dependencies between the product and PostgreSQL.
  • Added a pre-upgrade check for available disk space to prevent the appliance from running out of space during an upgrade.

TechSupport Exports

  • Logs from cloud-init are now excluded from TechSupport exports.
  • The ipf-jumphost service, which has logged to /var/log/ipf/ipf-jumphost/ since release 7.0 to keep its logs separate from system logs, now includes these logs in TechSupport exports to assist with troubleshooting.

Platform & Infrastructure

  • Memory limits for API and discovery services are now configurable and no longer fixed. This gives better control over resource usage and makes it easier to tune the system for different environments.

    The configured memory limits are logged and visible in the UI, providing better transparency during discoveries.

    If you encounter out-of-memory issues or need to adjust memory limits for your deployment, please contact IP Fabric Customer Support for guidance.

  • The ipf-api component now writes logs to /var/log/ipf/ipf-api/ instead of forwarding them to syslog.
  • All JavaScript-based services are now running on Node.js version v22.19.0.

New Features

  • Device Attributes Import/Export: Added the ability to bulk import and export device attributes using CSV files for easier management.
  • Added support for GCP multi-project environments. Available projects are fetched at the very beginning of the discovery.

System Upgrade via CLI

A new command-line tool /opt/ipf-system-upgrade/bin/cli now enables performing system upgrades in the same way as through the web interface.

API Changes

  • Introduced a new API error code: API_VENDOR_CONNECTION_TEST_FAILED. Updated the AWS API connection tester to use this new error code instead of the previous API_URL_NOT_REACHABLE.

Endpoint Payload Size Limit

The payload size limit has been introduced with a default of 20 MB, except for the following endpoints with their respective limits:

  • /appliance-configuration/import -> 100 MB
  • /extensions/docker-image -> 2 GB
  • /extensions/docker-zip -> 10 GB
  • /licenses/upload -> 5 MB
  • /snapshots/upload -> 10 GB
  • /graphs/vsdx -> 25 MB
  • /os/upload-nimpee-cert -> 5 MB
  • PATCH /settings -> 100 MB

Experimental Features

Dedicated API Discovery Worker

An experimental dedicated worker for API-based discovery is available. When enabled, it improves scalability and discovery performance for API-only devices by running API discovery independently from other discovery processes.

Discovery behavior and results remain unchanged. The solution includes built-in protections to respect vendor API rate limits and is designed to scale independently.

This feature is disabled by default. Customers interested in evaluating it can contact IP Fabric Customer Support for more information and assistance with enabling it.

Other Changes

  • Added documentation for a known limitation with RFC 5549 (IPv4 routes with IPv6 as next hop).
  • BGP AS number format can be changed to ASplain using a Configuration Flag.
  • Discovery and API system logs are now available under separate journald namespaces.
  • The system status page is now accessible only after login.
  • The license upload endpoint is now protected by authentication and accessible only to admin users.
  • When a user changes their password, all active sessions for that user are invalidated.
  • Session token is now invalidated upon logout.
  • The default RabbitMQ guest account has been removed.
  • The built-in Role-Based Access Control (RBAC) policy previously named others (ID: read) has been renamed for improved clarity.
    • Despite its ID, this policy also permits write operations for saved filters and graphs. The rename helps better reflect its actual permissions and avoid confusion between read-only and read/write capabilities.
