Cisco FMC (FTD)
Starting from version 4.3, IP Fabric collects zone firewall-related data for Cisco
Firepower devices only via the Cisco FMC API. Cisco Firepower devices are
still discovered via SSH. So, if Cisco Firepower devices are not managed via FMC,
they will still be discovered but without security-related information.
To discover Cisco Firepower security policies and utilize the Zone Firewall feature in IP Fabric, it is necessary to control Cisco Firepower through Cisco FMC (Firewall Management Center) and add Cisco FMC to the global Vendor API settings.

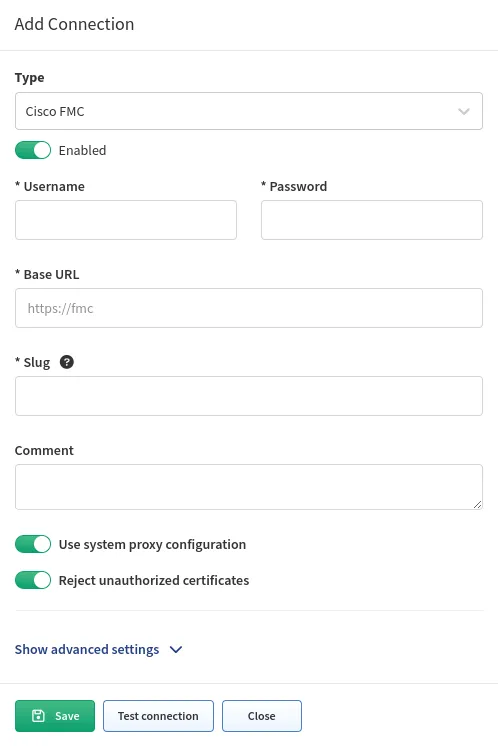

Go to Settings → Discovery & Snapshots → Discovery Settings → Vendors
API, click + Add, select Cisco FMC from the list, and fill in:
- Username and Password used to log in to Cisco FMC
- Base URL of Cisco FMC server (e.g.,
https://cisco-fmc-ip-address) - Slug
Discovery of FMC Hosted by Cisco Defense Orchestrator

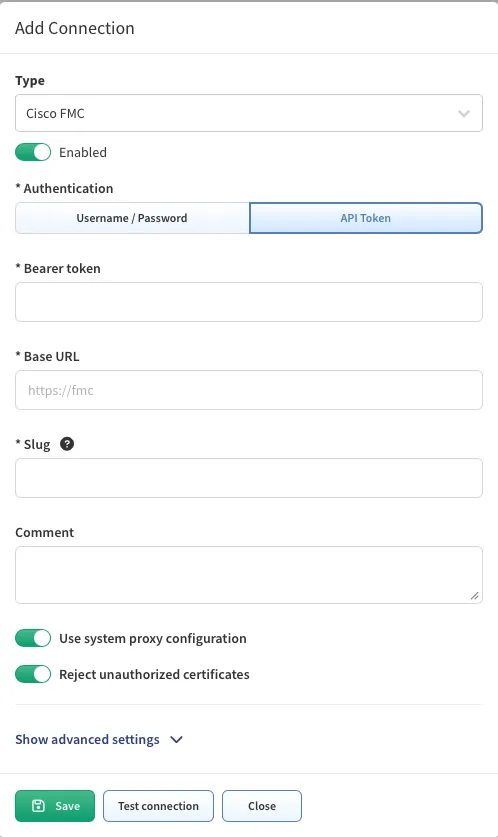

When FMC is hosted by Cisco Defense Orchestrator, discovery and data collection has to be handled differently. The main difference is in using an API key instead of a username/password.
Since 6.7, it is possible to enable API key authentication for FMC by adding the following line to the global environment file /etc/default/ipf-appliance-local:
ENABLE_FMC_TOKEN_AUTH=true
After updating the environment file, you must restart IP Fabric application by running the following command:
sudo systemctl restart ipf-appliance
