LDAP (Lightweight Directory Access Protocol) authentication is a secure and reliable method for authenticating users and granting access to network resources. It is a widely used protocol for authentication and authorization in enterprise networks and is an important component of any secure network infrastructure.

We regularly test our LDAP implementation against Microsoft Active Directory and OpenLDAP.

Authentication Flow

Local authentication takes precedence over other authentication methods. This means that LDAP is consulted only if the user doesn’t have a local account. Therefore, we recommend keeping the number of local accounts to an absolute minimum when an external authentication method (like LDAP) is in use.

IP Fabric authenticates users with LDAP every time they try to log in with a username and password. Accounts are not synchronized or imported in advance. The simplified authentication flow for configured and enabled LDAP is as follows:

graph LR
    LoginStart[User attempts to log in] --> UserLocal{Local account?}

    UserLocal -->|Yes| PswCheck{Correct password?}
      PswCheck -->|Yes| LoginOk[<strong>Login succeeded.</strong>]
      PswCheck --> |No| LoginFailed[<strong>Login failed.</strong>]
    UserLocal -->|No| LDAP{LDAP configured?}

    LDAP -->|No| LoginFailed
    LDAP -->|Yes| LdapSearch[Search for the user in LDAP]

    LdapSearch --> |failure| LoginFailed
    LdapSearch -->|success| LdapBind[Bind as the user]

    LdapBind --> |failure| LoginFailed
    LdapBind -->|success| UserLocalLdap[Create/update a non-local account in the DB]
    UserLocalLdap --> FetchGroups[Fetch Groups from LDAP]
    FetchGroups --> LoginOk

    style LoginOk fill:#33dd00
    style LoginFailed fill:#dd3300

If a user is successfully authenticated through LDAP, basic information about this user is then passed from LDAP and stored in the database as a non-local account. Information about groups and memberships is also fetched and stored within the database.

Local accounts have the isLocal attribute set to true. You may see accounts for external authentication methods also being created, but these will have isLocal set to false, and they will not be considered for local authentication. Records are created for housekeeping reasons, primarily to maintain a consistent mapping to local groups and roles.

Enable LDAP Authentication

LDAP Configuration

  1. Log in to IP Fabric as a user with admin rights.

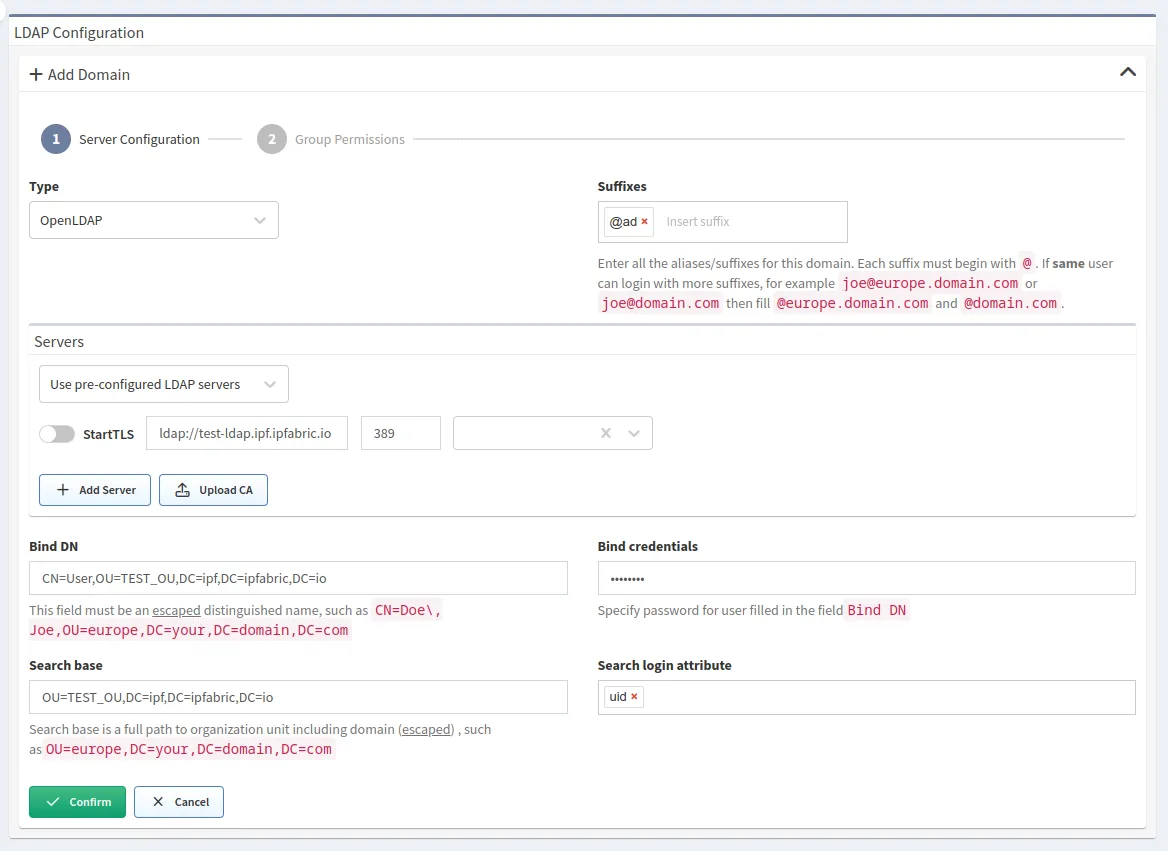

  2. Navigate to Settings → Administration → LDAP.

  3. Click + Add Domain.

  4. In the Type drop-down list, select the LDAP server type (Active Directory or OpenLDAP).

  5. In the Suffixes field, enter all the aliases/suffixes for this domain.

    1. Each suffix must begin with @.
    2. If the same user can log in with other suffixes (for example, joe@europe.domain.com and joe@domain.com), then fill in @europe.domain.com and @domain.com.

  6. Add servers for the domain:

    1. As an explicit list of addresses:

      1. In the Servers drop-down list, select Use pre-configured LDAP servers.

      2. Specify the full FQDN (including domain) or IP address of the LDAP server, including the protocol prefix. For example, ldap://your.domain.com or ldaps://your.domain.com.

      3. Specify the port. The default ports for LDAP and LDAPS are 389 and 636, respectively.

      4. For LDAPS (LDAP over SSL), also upload the Root CA certificate used for the LDAP certificate.

      5. Click + Add Server if you want to add backup servers.

    2. Using DNS service records:

      1. In the Servers drop-down list, select Use DNS to find LDAP servers.

      2. Select or upload a certificate (recommended in a production environment).

      3. Define the DNS domain value (DNS address).

      4. Define the Service location name (common names are ldap and ldaps). This is the network service that constructs the final name of the record. The construction is done as follows: \_{{service location name}}.\_tcp.{{dns address}}

  7. In the Bind DN field, specify a service account with LDAP read permissions. This field must be an escaped LDAP-style distinguished name.

    Examples:

    1. CN=Doe\, Joe,OU=europe,DC=your,DC=domain,DC=com
    2. CN=User,OU=europe,DC=your,DC=domain,DC=com

  8. In the Bind credentials field, enter the bind user’s (defined in step 7) password.

  9. In the Search base field, enter a whole domain or specific organization unit (container) to specify where users and groups are found in the LDAP tree. For example, OU=NetworkAdmins,DC=your,DC=domain,DC=com.

  10. In the Search email attribute field, enter the attribute where the email address is stored in the LDAP user object.

  11. Only for Active Directory:

    For nested group permission lookup, enable Allow nested groups. This uses the Extensible Match operator LDAP_MATCHING_RULE_IN_CHAIN, which might be slow in your local setup.

  12. Click Confirm.

Note

If the LDAP server is not reachable or credentials to the service account are not correct, LDAP authentication cannot be set.

Two or More LDAP Servers

If two or more LDAP server configurations are present, an email suffix needs to be added to the username when logging in.

A username alone works only in a situation when one LDAP server configuration is present.

LDAP Group Permissions

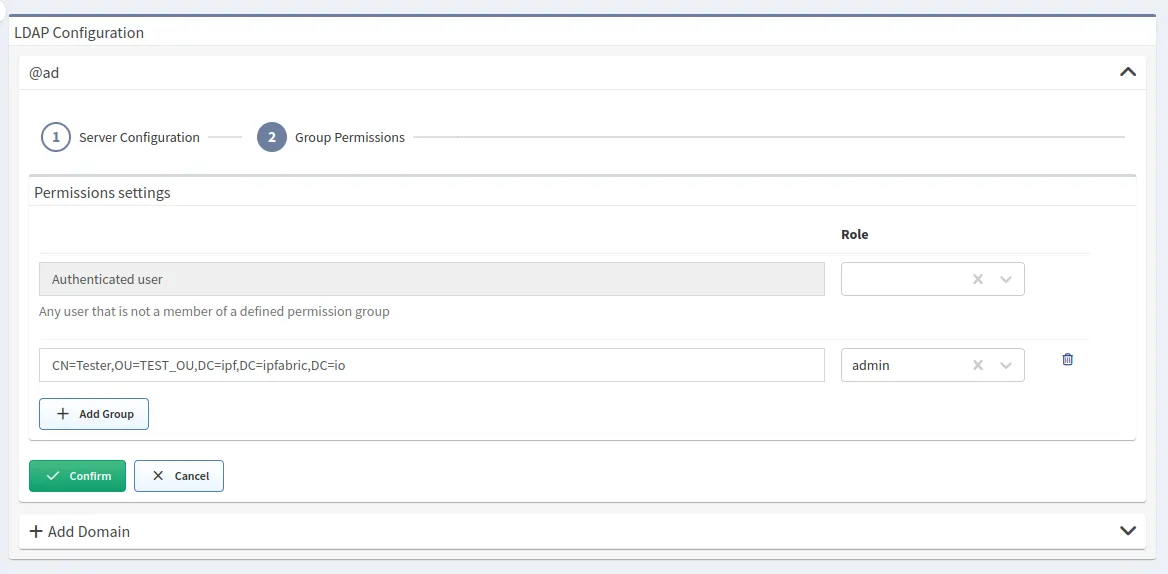

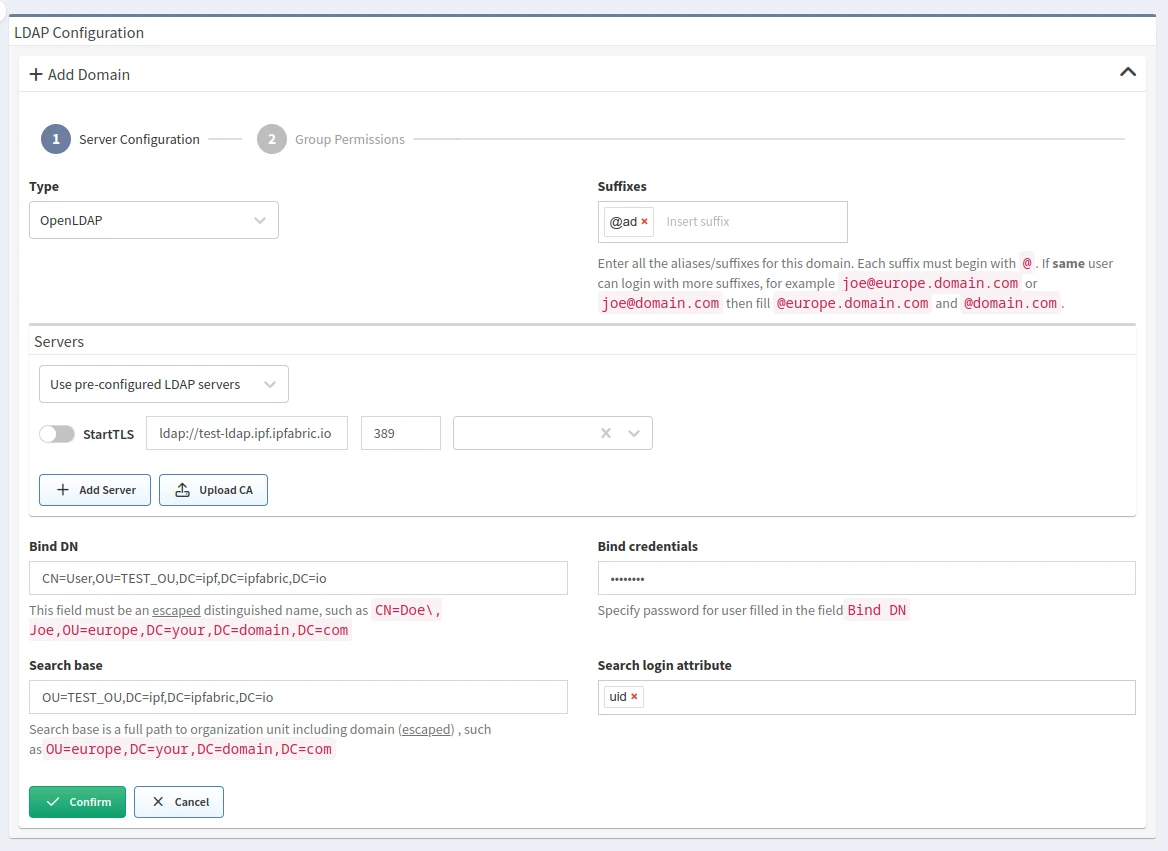

LDAP Configuration - Permissions settings

After the LDAP server is added, group permissions can be set.

All authenticated users will get the assigned role configured for Authenticated user:

  • By leaving this role empty, it is possible to ensure that users logged in via LDAP will get an API_INSUFFICIENT_RIGHTS error upon login / access to the API.
  • Alternatively, this could be set to a read-only role so that any user who authenticates successfully to LDAP will have access to IP Fabric.

Primary User Groups Are Not Supported

It is recommended to create new LDAP groups (such as IP_FABRIC_ADMINISTRATORS, IP_FABRIC_USERS, etc.) and assign them permissions.

Disable LDAP Authentication

To disable LDAP authentication, delete all LDAP configuration domains in Settings → Administration → LDAP.

Troubleshooting

The two most common issues are an incorrectly configured search account (Bind DN or Bind credentials) or an incorrect Search base. These typically result in an LDAP Search Failed error.

For security reasons, all LDAP errors related to server connectivity and user binding are generalized and displayed as LDAP as provided is not reachable.

Before contacting Support Team, please verify that the information entered in the IP Fabric GUI is correct.

Using ldapsearch to Verify LDAP Configuration

You can use the ldapsearch command-line utility to independently query LDAP servers. ldapsearch is available on the IP Fabric appliance (accessible via SSH) or can be installed locally as part of the ldap-utils package on Linux.

It is highly recommended to test the LDAP configuration directly from the IP Fabric appliance to rule out connectivity issues.

Prerequisites

  • Ensure you have SSH access to the IP Fabric appliance.
  • Gather the following information:
    • LDAP server address and port
    • Bind DN
    • Bind password
    • Search base

Testing LDAP

Use the following command to test LDAP connectivity:

ldapsearch \
  -W -H "ldap://your-ldap-server:389" \
  -D "$LDAP_BIND_DN" \
  -b "$LDAP_SEARCH_BASE" \
  -s sub

You will be prompted to enter the bind password interactively. This command returns all records from the specified search base.

User-Specific Filtering

To filter results for a specific user, use attributes such as sAMAccountName:

ldapsearch \
  -W -H "ldap://your-ldap-server:389" \
  -D "$LDAP_BIND_DN" \
  -b "$LDAP_SEARCH_BASE" \
  -s sub sAMAccountName="$USERNAME"

You can also use other attributes for filtering, such as userPrincipalName=$USERNAME or uid=$USERNAME.

To display all members of a specific nested group, use:

ldapsearch \
  -W -H "ldap://your-ldap-server:389" \
  -D "$LDAP_BIND_DN" \
  -b "$LDAP_SEARCH_BASE" \
  -s sub member:1.2.840.113556.1.4.1941:="$NESTED_GROUP_PATH_OR_USER_PATH"

Testing LDAPS

Use the following command to test LDAPS. Note that this example disables SSL certificate verification:

Basic Bind as Search DN (Insecure)
LDAPTLS_REQCERT=never ldapsearch \
  -W -H "ldaps://your-ldap-server:636" \
  -D "$LDAP_BIND_DN" \
  -b "$LDAP_SEARCH_BASE" \
  -s sub

Warning

Disabling certificate verification (LDAPTLS_REQCERT=never) poses a security risk. Use this only for testing purposes in a safe environment.

Login Error Handling

A successful ldapsearch command returns an exit code of zero, indicating a successful connection and bind.

IP Fabric displays all LDAP login errors as Invalid Credentials in the GUI, though the underlying cause may vary.

Common LDAP error codes indicate issues with the AD/LDAP configuration. To retrieve the latest error messages, use:

sudo cat /var/log/ipf/ipf-api/api.log | grep LdapErr

Example Log Entry

Aug 27 08:26:19 warn : {"contextMessage":"LDAP error", ... "message":"80090308: LdapErr: DSID-0C090439, comment: AcceptSecurityContext error, data 52e, v4563\u0000", ... }

This message includes an LDAP error code (e.g., data 52e).

Common error codes and their meanings include:

Data Code Meaning Suggested Action
525 User not found Verify the username and search base
52e Invalid credentials Check the username and password
530 Not permitted to log in at this time Check account time restrictions
531 Not permitted to log in to this workstation Review workstation restrictions
533 Account disabled Enable the user account
534 The user has not been granted the requested login type at this machine Review login rights
701 Account expired Renew the account
773 User must reset password Request a password reset
775 User account locked Unlock the account

For further assistance, provide the relevant error codes and logs to Support Team.
