Policies

Policies contain sets of either attributes or endpoints.

Attributes scope defines devices that are available to end users. Access is defined by a specific attribute such as siteName.

API endpoints scope defines actions that are permitted for end users to perform on allowed devices or on the system. Access is defined only to a specific API endpoint within IP Fabric (e.g., a discovery policy allows access to discovery API endpoints (actions)).

The Policies section (in Settings → Administration → Policies) allows you to create or modify policies.

Attention

Every custom role must have at least two policies configured to see diagrams:

1. An attributes scope policy defining siteNames.

2. An API endpoints scope policy defining access to Graphs API calls.

Users with the admin role have access to all attributes and endpoints by default.

ipf-checker Policy

You may ignore the ipf-checker (API endpoints scope) policy, which is used by our internal diagnostics tool.

Add Attributes Scope Policy

To add a new policy, click + Add policy:

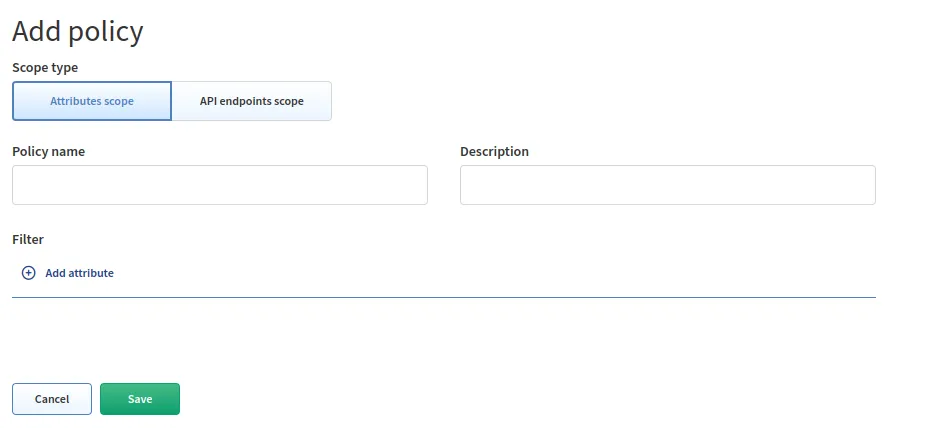

Click Attributes scope:

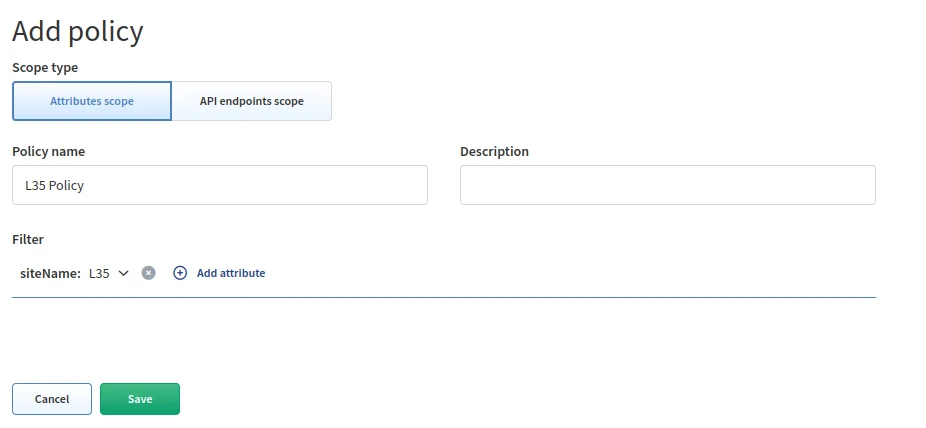

Set a policy name, add attributes (create filters), select values, and click Save:

Add API Endpoints Scope Policy

To add a new policy, click + Add policy:

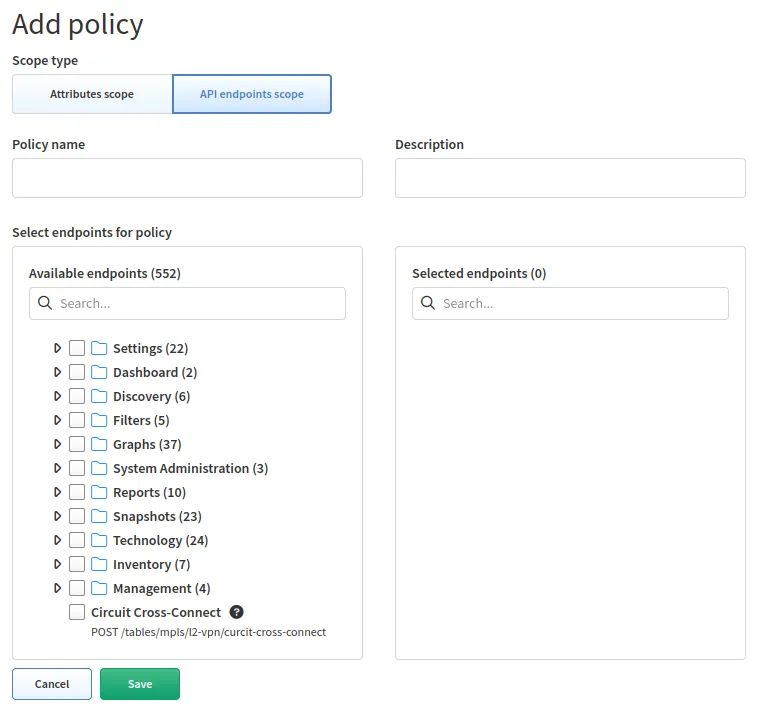

API endpoints scope should be selected by default:

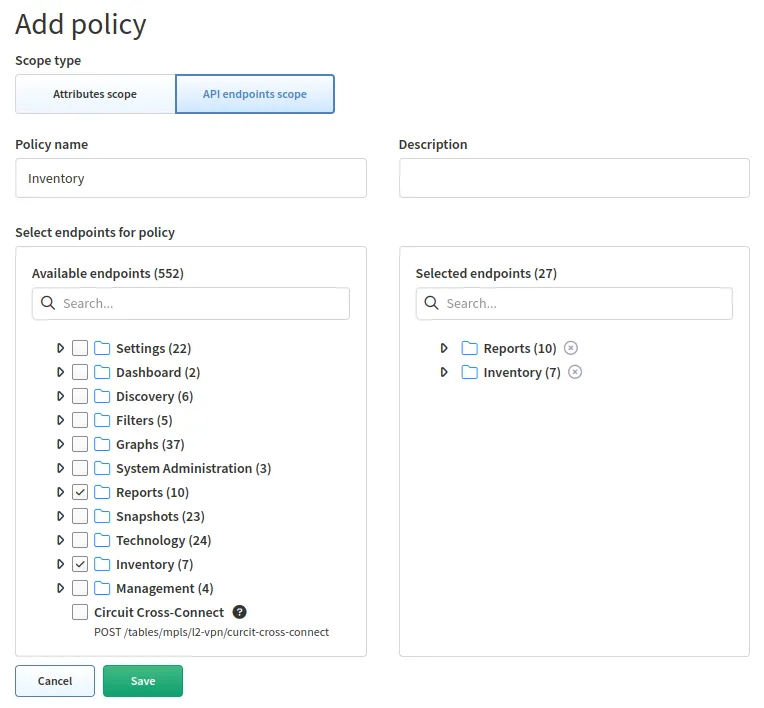

Set a policy name, select API endpoints, and click Save:

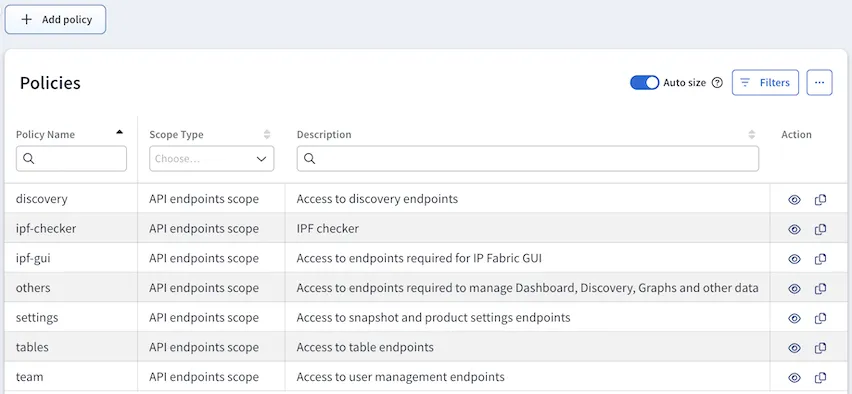

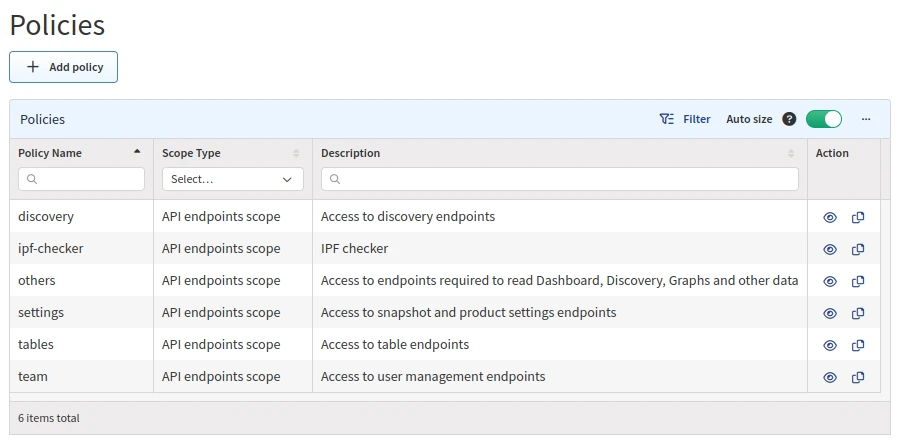

List of Policies

The Policies table lists all policies including their details and allows you to modify or delete them (except for the built-in policies, which cannot be modified or deleted).

Edit Policy

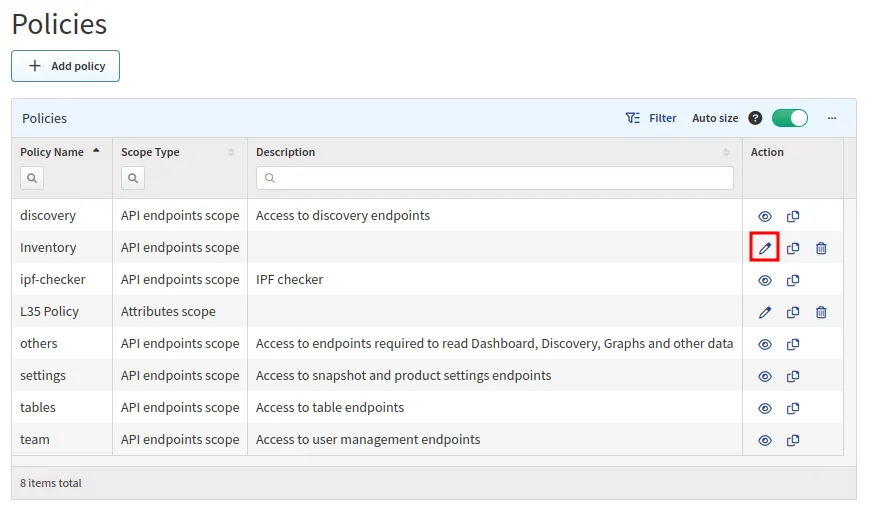

To modify the details of a policy, click the Edit icon next to it in the Policies table:
Update the data in the Edit policy form and click Save:

Copy Policy

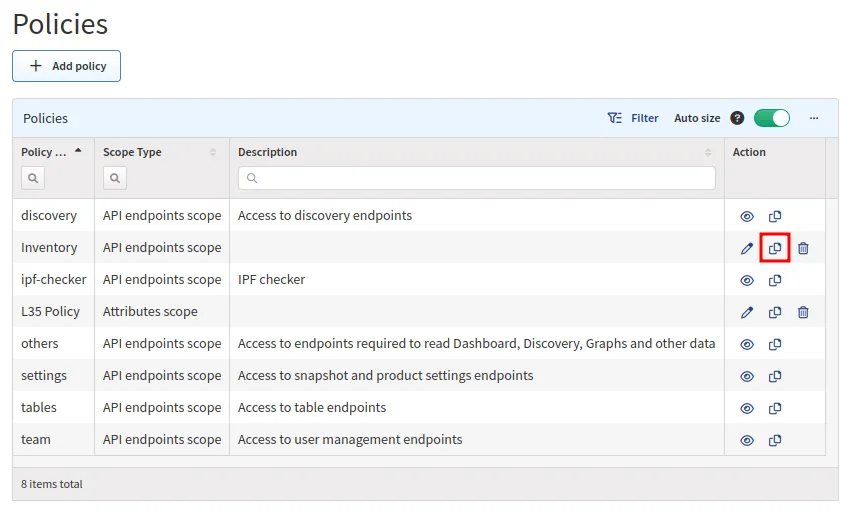

To copy a policy, click the Copy icon next to it in the Policies table:
Update the data in the Copy policy form and click Save:

Delete Policy

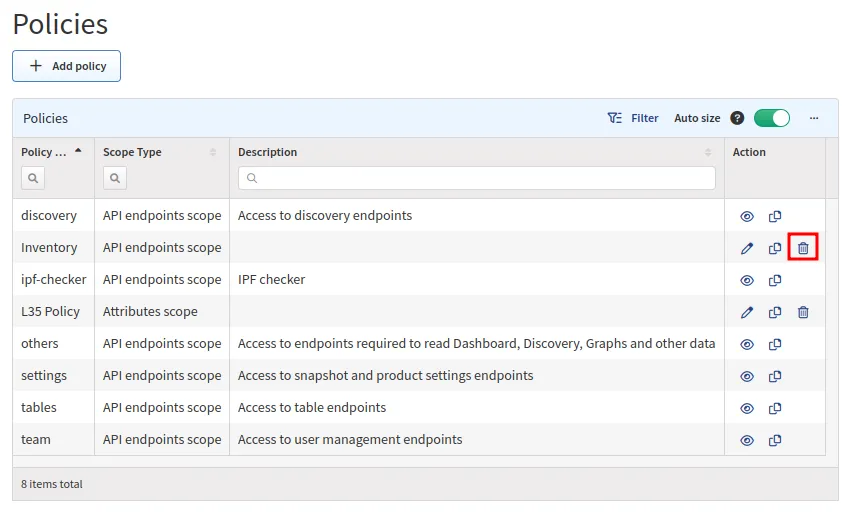

To delete a policy, click the Delete icon next to it in the Policies table:

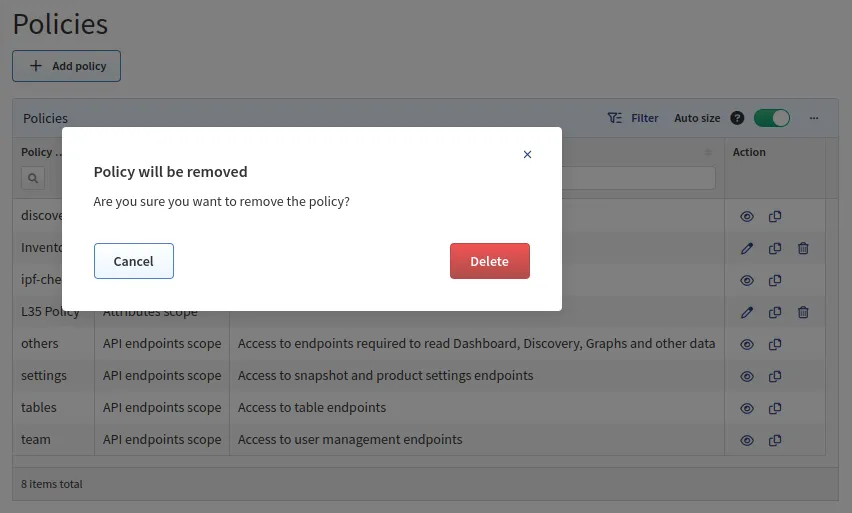

To confirm the action, click Delete:
