Single Sign-On (SSO)

Outdated SSO User Records in IP Fabric Might Cause Login Issues

With SSO configured, each sign-in of a new user into IP Fabric via SSO will create a new (non-local) user record in Settings → Administration → Local Users – with the user’s current username and email from the Identity Provider (IdP).

If the user’s username or email changes on the IdP side, the user will encounter an Authentication Failure while logging in to IP Fabric via SSO – due to a username/email mismatch between the IdP and IP Fabric.

In that case, please remove the outdated user record of that user in Settings → Administration → Local Users.

IP Fabric includes support for Single Sign-On (SSO). We have opted for Dex (a federated OpenID Connect provider) as a key building block to allow a broader set of Identity Providers (IdP).

sequenceDiagram
  IPF->>IPF: User selects SSO on the IPF login page.
  IPF->>Dex: Redirect after starting SSO auth.
  Dex->>IdP: Dex redirects to the selected and configured IdP.
  IdP->>IdP: User authenticates, provides MFA, etc.
  IdP->>Dex: User is redirected back to Dex with code.
  Dex->>IdP: Dex fetches token from the IdP.
  Dex->>IPF: Dex redirects the user back to IPF with code.
  IPF->>Dex: IPF fetches token from Dex.

Complex Configuration

Configuring SSO can be a complex task. Due to that, it is recommended to have it configured by your Solution Architect. If you are unsure who your Solution Architect is, please contact our Support team.

Requirements

Certificate

Prior to configuring SSO, the IP Fabric server must not be using a self-signed certificate. To create a new signed TLS certificate, please see the instructions in IPF Certificates.

Private Certificate Authority (CA)

IP Fabric only trusts certificates issued by CAs listed in the system openssl trust-store. If your company uses certificates signed by an internal CA, please contact your Solution Architect or open a support ticket for further configuration to properly enable SSO.

CLI Access

To make changes to certain files, you must log in to the IP Fabric CLI as the osadmin user and gain root access. For more information, please see the CLI Overview.

justin@ubuntu:~$ ssh osadmin@demo.ipfabric.io
osadmin@demo:~$ sudo -s
[sudo] password for osadmin:
root@demo:/home/osadmin#

API Configuration api.json

The IP Fabric API configuration is stored in /opt/nimpee/conf.d/api.json. This file needs to be created during the initial configuration, as it does not exist in the default image. It will also be persistent during upgrades and will not be changed. Below is a full example of the api.json config file:

{
  "app": {
    "url": "https://<FQDN>/api"
  },
  "web": {
    "url": "https://<FQDN>"
  },
  "dex": {
    "url": "https://<FQDN>/dex",
    "providers": [
      {
        "name": "sso",
        "clientId": "ipfabric",
        "clientSecret": "<RANDOM_SECRET>",
        "roleAssignments": [
          {
            "groupName": "any",
            "roleId": null
          },
          {
            "groupName": "admin",
            "roleId": "admin"
          },
          {
            "groupName": "read",
            "roleId": "2356575453"
          },
          {
            "groupName": "read-only-users",
            "roleName": "read-only-users"
          }
        ]
      }
    ]
  }
}

roleName

In IP Fabric version 6.1.0, we added the option to use roleName in the SSO configuration. For consistency and human readability, we recommend switching from roleId to roleName.

JSON Validation

The example below is a malformed JSON due to the comma after app.url:

{
  "app": {
    "url": "https://demo.ipfabric.io/api",
  },
  "web": {
    "url": "https://demo.ipfabric.io"
  },
  "dex": {
    "url": "https://demo.ipfabric.io/dex",
    "providers": []
  }
}

Using the jq command, it is easy to discover JSON errors instead of searching through log files or journalctl output.

root@demo:~$ jq . /opt/nimpee/conf.d/api.json
parse error: Expected another key-value pair at line 4, column 3

You can reformat and prettify the JSON file by running:

echo "$(jq < /opt/nimpee/conf.d/api.json)" > /opt/nimpee/conf.d/api.json

URL Configuration

Inside the app, web, and dex sections, the url fields need to be updated with the FQDN of the IP Fabric system.

The dex.url must match the ipf-dex.yaml issuer URL.

Example:

{
  "app": {
    "url": "https://demo.ipfabric.io/api"
  },
  "web": {
    "url": "https://demo.ipfabric.io"
  },
  "dex": {
    "url": "https://demo.ipfabric.io/dex"
  }
}

Providers Configuration

The providers section must contain at least one SSO provider (which corresponds to staticClient in the Dex configuration).

{
  "dex": {
    "providers": [
      {
        "name": "sso",
        "clientId": "ipfabric",
        "clientSecret": "jqv-W_khLSwJdJMHCjhJefyu-QdeXq9kcz8sAfMrO1Q",
        "roleAssignments": [
          {
            "groupName": "any",
            "roleId": null
          },
          {
            "groupName": "admin",
            "roleId": "admin"
          },
          {
            "groupName": "read",
            "roleId": "2356575453"
          },
          {
            "groupName": "read-only-users",
            "roleName": "read-only-users"
          }
        ]
      }
    ]
  }
}

• name – User-defined name of the Identity Provider (IdP) displayed in the GUI.

  • Can only contain a-z 0-9 _. Do not use uppercase.
  • Used in ipf-dex.yaml for redirectURIs under staticClients.

  • This name will be displayed on the login page of the GUI. This name will be capitalized (e.g., sso → Sso); therefore, it is recommended to use names such as azure or okta.



• clientId – User-defined value. Suggested to keep ipfabric.
  • Used in ipf-dex.yaml for id under staticClients.

• clientSecret – User-defined value for a secret shared only between IP Fabric and Dex.

  • Can be randomly created for instance using Python:

    python -c "import secrets; print(secrets.token_urlsafe())"


  • Used in ipf-dex.yaml for secret under staticClients.

• roleAssignments – An array of objects.
  • Objects are in the format of {groupName: string, roleId?: string|null, roleName?: string|null }
    • groupName – The name of the group that is configured on the SSO side.
      • any will provide access to any user by default.
      • Multiple mappings with the same groupName will get merged. So the user will receive all corresponding roles on the IP Fabric side.
    • roleId – The ID of the IP Fabric role.
      • A value of null will provide no access.
      • Either roleId or roleName property must be specified, not both.
      • Please do not confuse roleId with roleName as these are different values. roleId must be retrieved using the browser’s Developer Tools or using the API (example below).
    • roleName – The name of the IP Fabric role.
      • A value of null will provide no access.
      • Either roleName or roleId property must be specified, not both.
      • Since version 6.1, you can opt to only use roleName instead of roleId in your configuration.
      • Since version 6.3, roleName can only contain a-z A-Z 0-9 _-. Previously created roles will be automatically modified by removing not-allowed characters from role name according to the new validation rules. Make sure the specified roleName refers to an existing role in the system.

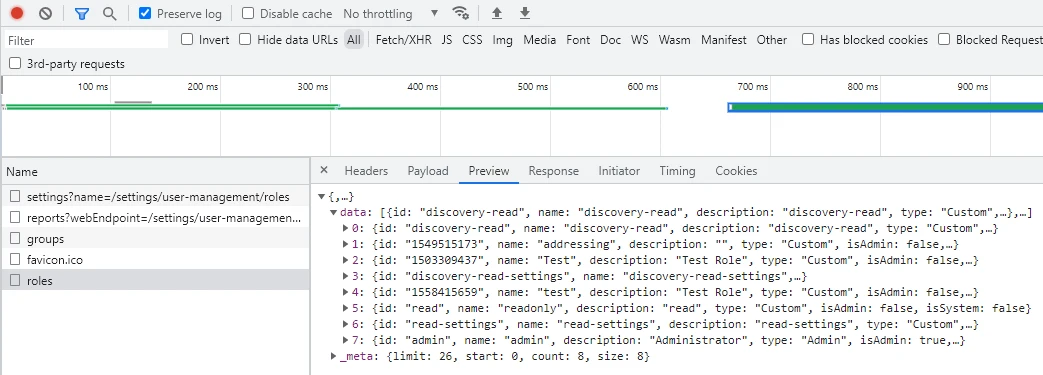

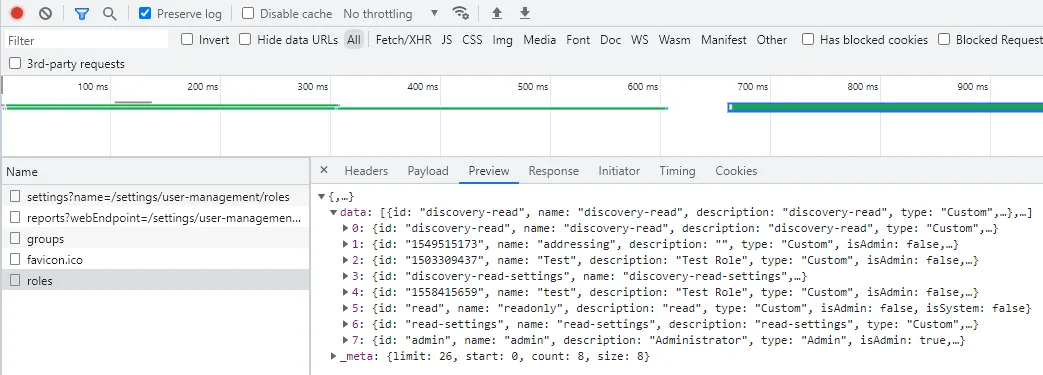

Example how to find roleId:

SSO Configuration ipf-dex.yaml

While Dex supports various connectors, we strongly recommend using OpenID Connect (OIDC) for SSO integration. (Azure uses a special microsoft connector, and an example is provided below along with SAML.) Please check the official Dex documentation for their overview.

The Dex configuration is located in /etc/ipf-dex.yaml on the IP Fabric appliance. It has several configuration sections, and a full example of the file is provided below. Please note that OIDC, SAML, and Azure have different syntaxes for the connectors configuration portion, which are covered separately.

# /etc/ipf-dex.yaml

issuer: https://<FQDN>/dex

staticClients:
  - id: ipfabric
    redirectURIs:
      - "https://<FQDN>/api/oauth2/external/<API-DEX-PROVIDERS-NAME>"
    name: IP Fabric
    secret: <RANDOM_SECRET>

storage:
  type: memory

logger:
  level: debug

web:
  http: 127.0.0.1:5556

telemetry:
  http: 127.0.0.1:5558

grpc:
  addr: 127.0.0.1:5557

oauth2:
  skipApprovalScreen: true

connectors:
  - type: oidc
    id: sso_oidc
    name: SSO OIDC
    config:
      issuer: <SSO_ISSUER>
      redirectURI: https://<FQDN>/dex/callback
      clientID: <SSO_CLIENT_ID>
      clientSecret: <SSO_CLIENT_SECRET>
      getUserInfo: true
      insecureEnableGroups: true
      scopes:
        - openid
        - profile
        - email
        - groups

Keep Default Values

The following lines should be left at the default values:

storage:
  type:
    memory

logger:
  level: debug

web:
  http: 127.0.0.1:5556

telemetry:
  http: 127.0.0.1:5558

grpc:
  addr: 127.0.0.1:5557

Issuer

In the Dex configuration, at the very top, there is an attribute called issuer. This needs to be configured to be equal to the url under dex in api.json.

For example:

issuer: https://demo.ipfabric.io/dex

Skip Approval Screen

The following lines of the configuration control whether you would like a Grant Access screen to be presented to your users on every login. By setting it to true, the message below won’t be displayed.

oauth2:
  skipApprovalScreen: true

Static Clients

The staticClients section contains the configuration for the IP Fabric portal, which acts as a client to dex.

staticClients:
  - id: ipfabric
    redirectURIs:
      # IPF version `<7.0.0` URL can be set to `v<Major>` only
      - "https://demo.ipfabric.io/api/v6/auth/external/sso"
      # IPF version `>=7.0.0` URL can be set without a version of the application
      - "https://demo.ipfabric.io/api/oauth2/external/sso"
    name: IP Fabric
    secret: jqv-W_khLSwJdJMHCjhJefyu-QdeXq9kcz8sAfMrO1Q

• id – Unique ID of the client within the Dex configuration.
  • Found in api.json for clientId under providers.

• redirectURIs – Full path to the callback endpoint of the IP Fabric client.

  • It is in the format of https://<FQDN>/api/oauth2/external/<API-DEX-PROVIDERS-NAME>

  • API-DEX-PROVIDERS-NAME is found in api.json for name under providers.

    • Can only contain a-z 0-9 _. Do not use uppercase.

    redirectURIs After Upgrade to 7.0.0

    In IP Fabric versions <7.0.0, the redirectURIs only included the major version: https://<FQDN>/api/v6/auth/external/sso.

    Starting from version >=7.0.0, the redirect URI has been modified to exclude the application’s version: https://<FQDN>/api/oauth2/external/<API-DEX-PROVIDERS-NAME>, eliminating the need for reconfiguration even after future major updates.

• name – Arbitrary name of the client.

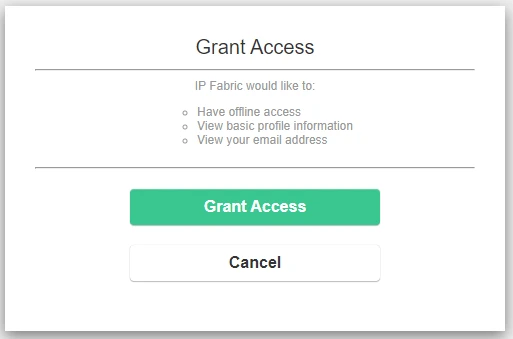

  • This will be displayed in the Grant Access screen.
• secret – User-defined secret.
  • Found in api.json for clientSecret under providers.
  • It is a secret shared only between IP Fabric and Dex.

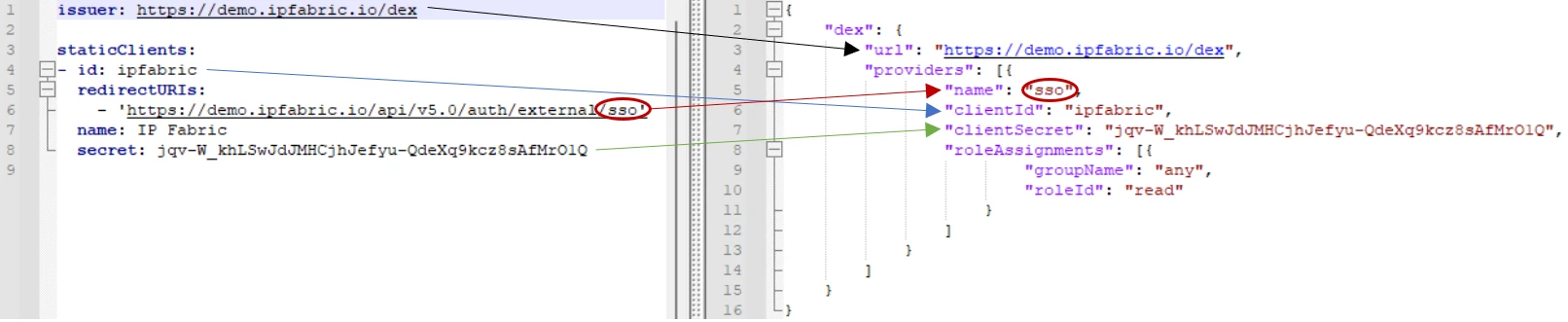

Config File Mapping

Here is a concise illustration of how the /opt/nimpee/conf.d/api.json values map to /etc/ipf-dex.yaml:

OpenID Connect (OIDC)

Please review the Dex documentation on OIDC for all configuration options and potential caveats.

Well-Known Configuration

Many of the required variables can be found in the OIDC well-known configuration endpoint. For example, take a look at Google: .well-known/openid-configuration.

connectors:
  - type: oidc
    id: sso_oidc
    name: SSO OIDC
    config:
      issuer: <SSO_ISSUER>
      redirectURI: https://<FQDN>/dex/callback
      clientID: <SSO_CLIENT_ID>
      clientSecret: <SSO_CLIENT_SECRET>
      getUserInfo: true
      insecureEnableGroups: true
      scopes:
        - openid
        - profile
        - email
        - groups
      claimMapping:
        groups: roles

• type – Dex connector type.
• id – User-defined arbitrary ID. (Not used anywhere.)
• name – User-defined arbitrary name. (Not used anywhere.)
• redirectURI – issuer URL with /callback appended.
  • Can be found in api.json under dex
    OR can be found in ipf-dex.yaml.
• getUserInfo – When enabled, the OpenID Connector will query the UserInfo endpoint for additional claims.
• insecureEnableGroups – Groups claims only refresh when the ID token is refreshed, meaning the regular refresh flow doesn’t update the groups claim. As such, by default, the OIDC connector doesn’t allow groups claims. If you are okay with having potentially stale group claims, you can use this option to enable groups claims through the OIDC connector on a per-connector basis.
• clientID – A client ID configured or generated on the Identity Provider.
• clientSecret – A client secret configured or generated on the Identity Provider.
• scopes – A list of scopes to be returned from the Identity Provider.
  • The ones listed above are the most common. However, these can differ from provider to provider.
  • Scopes are normally found in .well-known/openid-configuration, which is discussed in the OIDC section.
• claimMapping – Some providers return non-standard claims (i.e., roles). Use claimMapping to map those claims to standard claims.

Azure

Warning

Please review the Dex documentation on Azure for all configuration options and potential caveats, as Azure requires special configuration for proper enablement.

Dex Config

connectors:
  - type: microsoft
    id: sso_azure
    name: SSO Azure
    config:
      clientID: <SSO_CLIENT_ID>
      clientSecret: <SSO_CLIENT_SECRET>
      redirectURI: https://<FQDN>/dex/callback
      tenant: <TENANT_ID>
      scopes:
        - openid
        - profile
        - email
      claimMapping:
        groups: roles

• type – Dex connector type.
• id – User-defined arbitrary ID. (Not used anywhere.)
• name – User-defined arbitrary name. (Not used anywhere.)
• redirectURI – issuer URL with /callback appended.
  • Can be found in api.json under dex
    OR can be found in ipf-dex.yaml.
• tenant – UUID or name of the specific tenant to which accounts belong.
  • Required for obtaining the groups claim from Azure.
• clientID – A client ID configured or generated on the Identity Provider.
• clientSecret – A client secret configured or generated on the Identity Provider.
• scopes – A list of scopes to be returned from the Identity Provider.
  • The ones listed above are the most common. However, these can differ from provider to provider.
  • Scopes are normally found in .well-known/openid-configuration, which is discussed in the OIDC section.
• claimMapping – Some providers return non-standard claims (i.e., roles). Use claimMapping to map those claims to standard claims.

Azure AD App Registration Auth Using OIDC

1. From the Azure Active Directory → App registrations menu, select + New registration.

2. Enter a Name for the application. E.g., IP Fabric SSO.

3. Specify who can use the application. E.g., Accounts in this organizational directory only.

4. Enter Redirect URI (optional) as follows (replace IP_FABRIC_FQDN with your IP Fabric URL), then select Add.

   • Platform: Web
   • Redirect URI: https://<IP_FABRIC_FQDN>/dex/callback

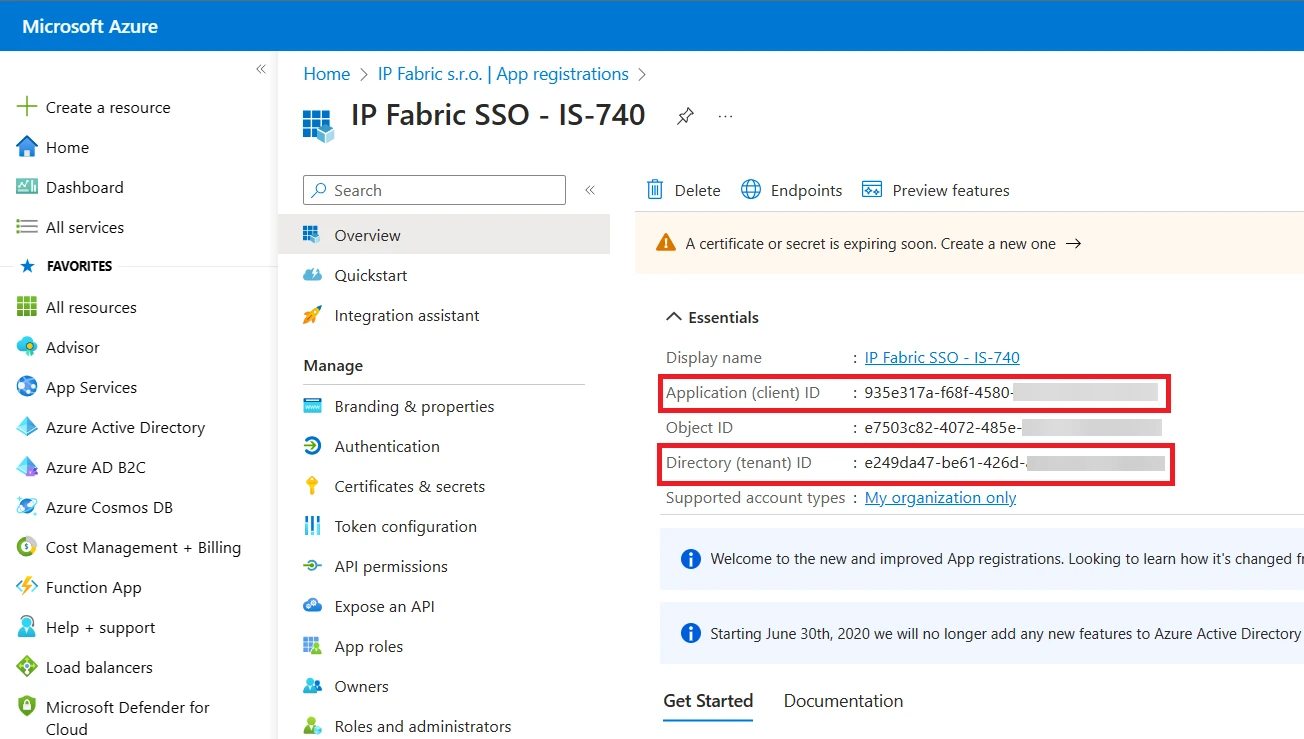

5. When the registration finishes, the Azure portal displays the app registration’s Overview pane. You will see the Application (client) ID.

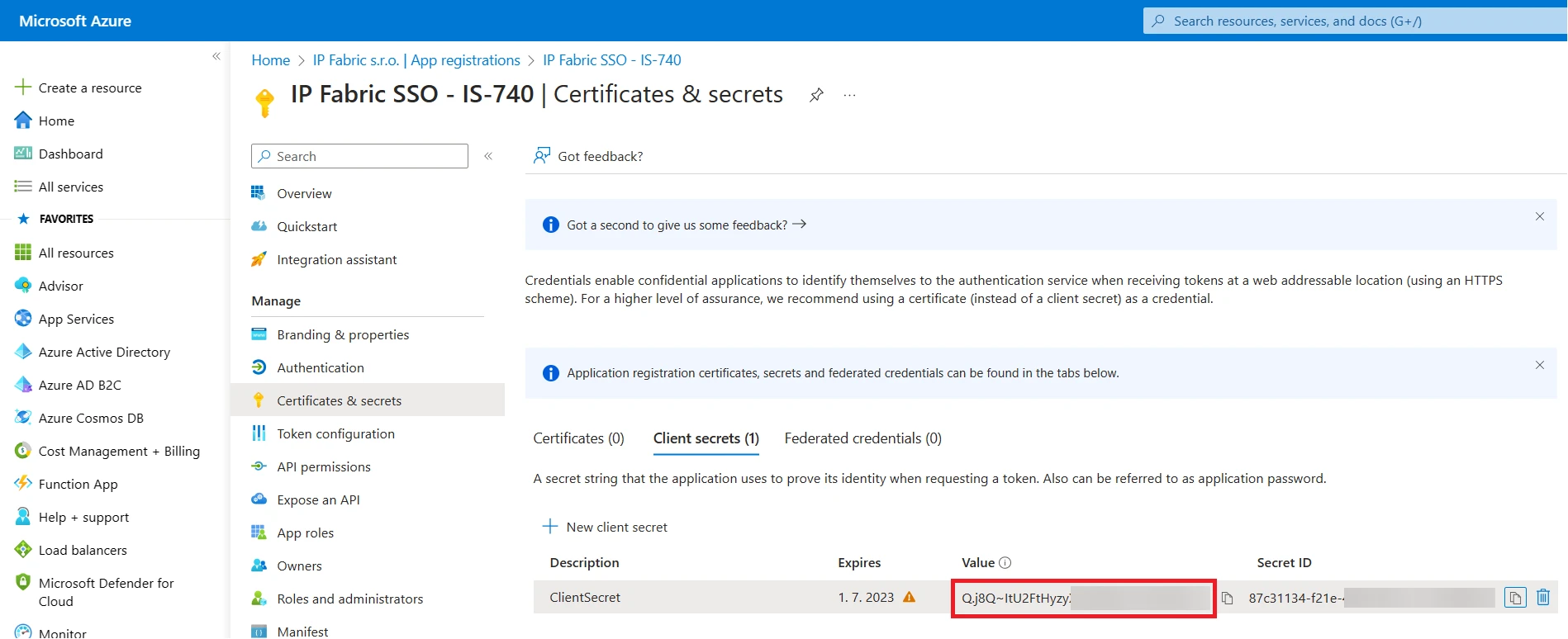

6. From the Certificates & secrets menu, select + New client secret.

7. Enter a Name for the secret. E.g., clientSecret. Make sure to copy and save the generated value for the clientSecret.

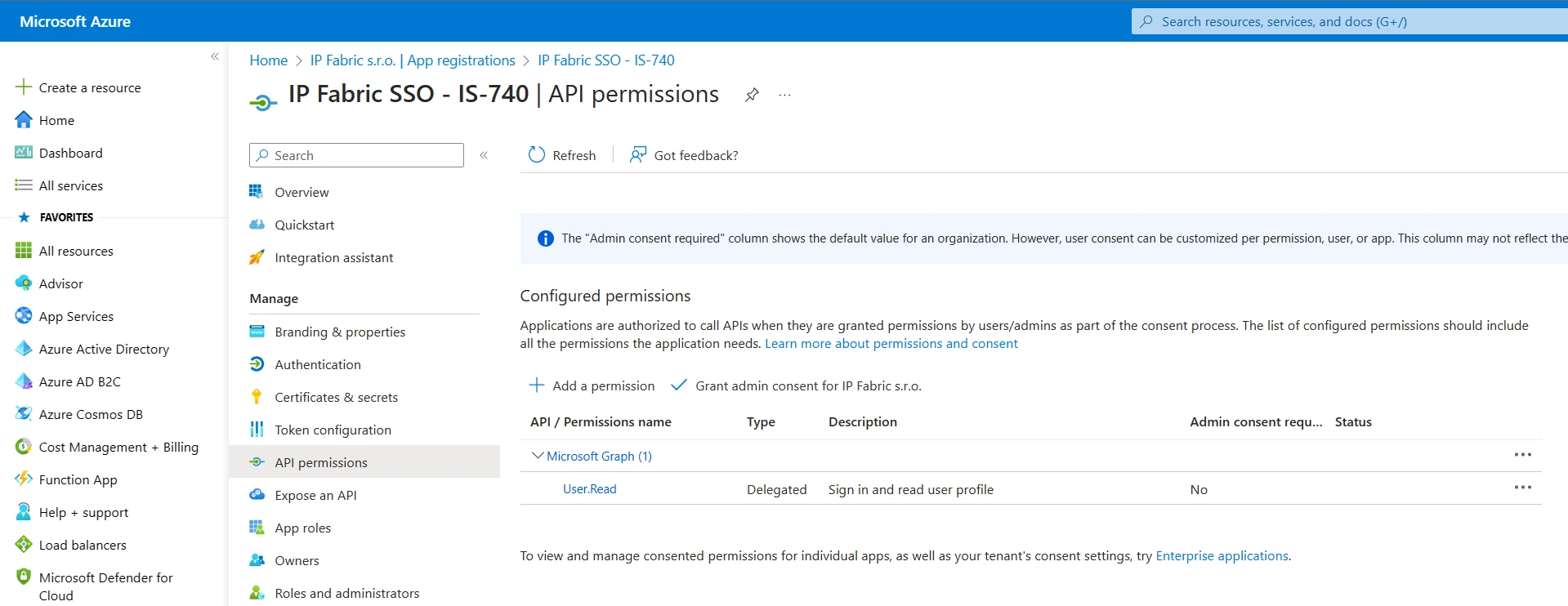

8. From the API permissions menu, select + Add a permission.

9. Find the User.Read permission (under Microsoft Graph) and grant it to the created application:

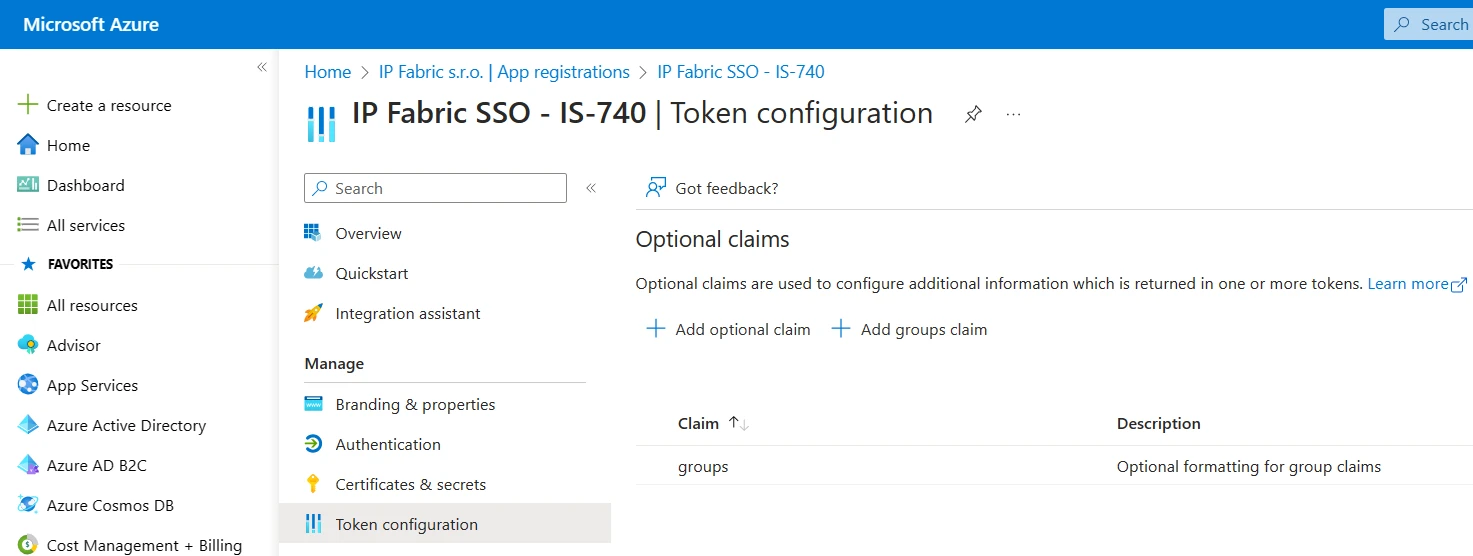

10. From the Token Configuration menu, select + Add groups claim:



    - All groups: Emits security groups, distribution lists, and roles.

    - Security groups: Emits security groups of which the user is a member in the groups claim.

    - Directory roles: If the user is assigned directory roles, they’re emitted as a wids claim. (The group’s claim won’t be emitted.)

    - Groups assigned to the application: Emits only the groups which are explicitly assigned to the application and of which the user is a member. Recommended for large organizations due to the group number limit in token.

11. From the Azure Active Directory → Enterprise applications menu, search for the app that you created. E.g., IP Fabric SSO.

12. From the Users and groups menu of the app, add any users or groups requiring access to the service.

SAML Connector

SAML Connector is obsolete

SAML is not recommended, please use OpenID Connect (OIDC) or OAuth2 instead.

Please review the Dex documentation on SAML for all configuration options and potential caveats.

connectors:
  - type: saml
    id: sso_saml
    name: SSO SAML
    config:
      ssoURL: <SSO_URL>
      ssoIssuer: <SSO_ISSUER>
      redirectURI: https://<FQDN>/dex/callback
      caData: "LS0t ... 0tLS0tCg=="
      # ca: /path/to/file
      usernameAttr: name
      emailAttr: email
      groupsAttr: groups
      nameIDPolicyFormat: emailAddress

• type – Dex connector type.
• id – User-defined arbitrary ID. (Not used anywhere.)
• name – User-defined arbitrary name. (Not used anywhere.)
• redirectURI – issuer URL with /callback appended.
  • Can be found in api.json under dex
    OR can be found in ipf-dex.yaml.
• ssoURL – SSO URL used for POST value.
• ssoIssuer – (optional) Issuer value expected in the SAML response.
• Pick and use one of the following options to validate the signature of the SAML response:
  • caData – Base64-encoded certificate chain.
  • ca – Path to the file containing the certificate chain.
• usernameAttr – Maps SAML name value to IP Fabric’s username.
• emailAttr – Maps SAML email value to IP Fabric’s email.
• groupsAttr – Maps SAML groups value to IP Fabric’s groupName.
• nameIDPolicyFormat – The connector uses the value of the NameID element as the user’s unique identifier, which Dex assumes is both unique and never-changing. Use nameIDPolicyFormat to ensure this is set to a value which satisfies these requirements.

YAML Validation

While the validity of the actual configuration is determined by Dex itself, it can be handy to verify parsing of the configuration YAML. You can use the following command to get a JSON representation of /etc/ipf-dex.yaml:

python3 -c 'import sys, yaml, json; y=yaml.safe_load(sys.stdin.read()); print(json.dumps(y))' < /etc/ipf-dex.yaml  | jq .

Correct YAML

Let’s assume the following YAML fragment as an input:

connectors:
  - type: microsoft
    id: sso_azure
    config:
      scopes:
        - openid
        - profile
        - email
        - groups

The output of the command will be:

{
  "connectors": [
    {
      "type": "microsoft",
      "id": "sso_azure",
      "config": {
        "scopes": [
          "openid",
          "profile",
          "email",
          "groups"
        ]
      }
    }
  ]
}

As you can see, scopes has been correctly parsed as a list.

Incorrect YAML

Let’s assume the following YAML fragment as an input:

connectors:
  - type: microsoft
    id: sso_azure
    config:
      scopes:
      - openid
        - profile
        - email
        - groups

The output of the command will be:

{
  "connectors": [
    {
      "type": "microsoft",
      "id": "sso_azure",
      "config": {
        "scopes": [
          "openid - profile - email - groups"
        ]
      }
    }
  ]
}

As you can see, scopes has been completely incorrectly parsed as a multiline string.

Restarting Services

After making changes to /opt/nimpee/conf.d/api.json, you need to restart the API service:

systemctl restart nimpee-api.service

Consequently, after making changes to /etc/ipf-dex.yaml, you need to restart the Dex service:

systemctl restart ipf-dex.service

Debugging Dex

Dex logs can be found in /var/log/syslog.

Example successful login message

~# grep 'connector_id=' /var/log/syslog
Oct  3 12:30:37 ipf-server dex[692]: time=2024-10-03T12:30:37.496Z level=INFO msg="login successful" connector_id=sso username="IPF User" preferred_username="" email=ipf.user@ipfabric.io groups="[Everyone Solution Architecture]"

The groups attribute must be returned in order for IP Fabric to match the role assignment in the /opt/nimpee/conf.d/api.json file. Please note that group names can have spaces like in the example above and that Everyone and Solution Architecture are two separate groups. It is best to consult the SSO provider for the group names as the log messages can be difficult to read.

{
  "roleAssignments": [
    {
      "groupName": "Solution Architecture",
      "roleName": "admin"
    }
  ]
}

If groups are not returned from the SSO provider the following configuration will allow any authenticated user to be mapped to the example read-only IP Fabric role.

{
  "roleAssignments": [
    {
      "groupName": "any",
      "roleName": "read-only"
    }
  ]
}
