Update Network Configuration

To change the IP address, subnet, gateway, DNS, or proxy configuration of your IP Fabric appliance from the CLI, follow these steps:

1. Connect to the IP Fabric appliance via SSH as the osadmin user.

2. Run:

   sudo ipf-cli-config -n


   Note

   To keep the current configuration for any item, select OK and press Enter.

3. The first two options are to modify the hostname and the DNS domain name. See Update Hostname or DNS Domain Name.

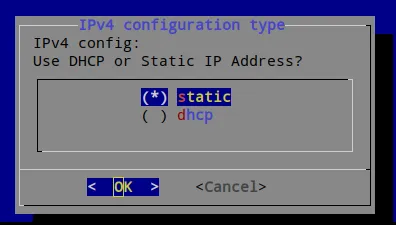

4. Next, select DHCP or static IP address assignment. Use the up/down and Space keys to change () to (*).

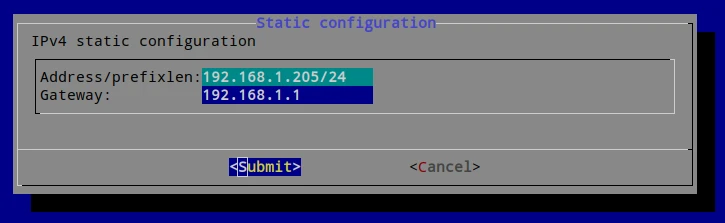

5. If you selected static IP address assignment, then enter:

   • IP address
   • netmask
   • gateway

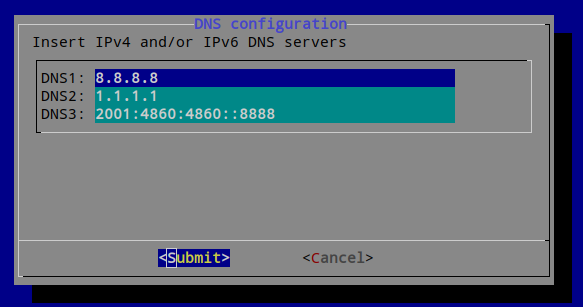

   • primary DNS
   • secondary DNS

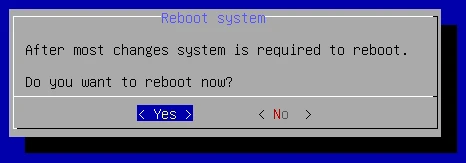

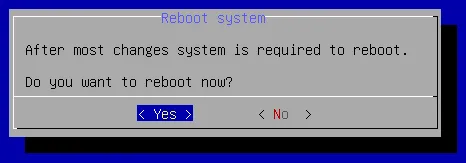

6. Select Yes to reboot the system:
