IP Fabric v7.8

Unreleased Version

This is an upcoming IP Fabric version, which has not been released yet and is not available for download.

Upgrade Version Policy

We support the following upgrade paths:

  • The latest version in the previous major line → any version in the current major line (for example: 6.10.7 → 7.3.23).
  • Any version in the current major line → any newer version in the current major line (for example: 7.0.15 → 7.3.23).
  • An upgrade to 7.5.x can be only performed from version 7.3.23 or newer.

Clearing Browser Cache

After upgrading IP Fabric to a newer version, you should see the Your application has been updated and must be refreshed dialog in the main GUI.

It is usually sufficient to just click the Refresh button.

However, in case of issues with the main GUI or if you did not see the mentioned dialog, please force refresh your browser cache.

The key combination for doing this depends on your operating system. In your browser window with your IP Fabric appliance’s URL open, use one of the following key combinations:

  • Windows: Ctrl + F5
  • macOS: Command + Shift + R
  • Linux: Ctrl + F5

This will only affect the browser cache for the IP Fabric appliance.

Known Issues

.

v7.8.X (UNRELEASED)

.

Fixes

.

v7.8.0 (UNRELEASED)

.

New Features

  • Device Attributes Import/Export: Added the ability to bulk import and export device attributes using CSV files for easier management.

Improvements

.

Technology Tables

New Tables

A new IPv6 Managed IP Summary table has been added under Technology → Addressing → Managed-IP,

GUI

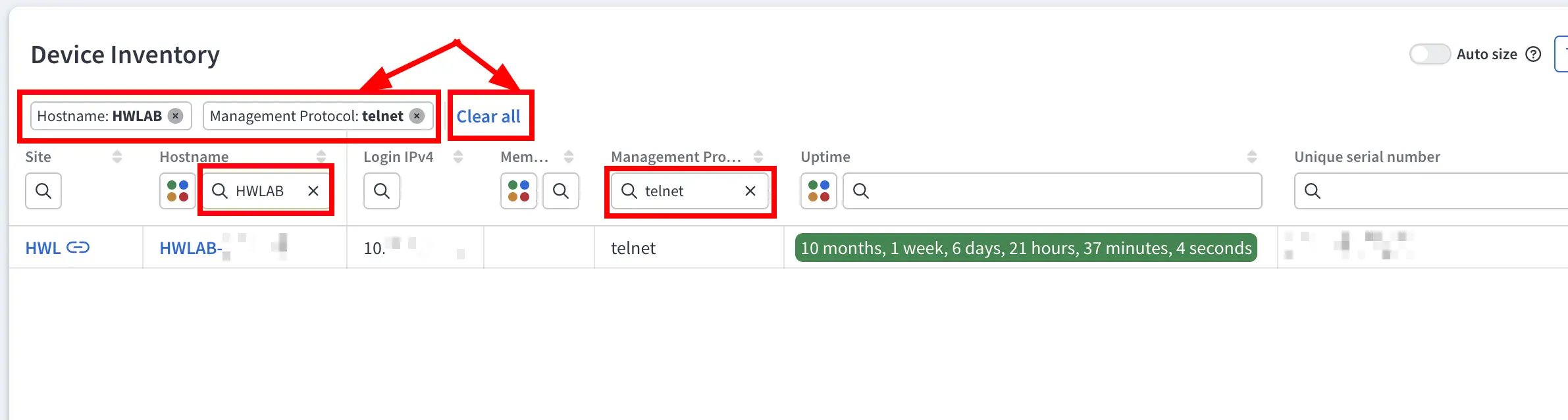

  • An overview of active filters, with buttons to easily remove them, was added to all tables.
  • It is now possible to display interface descriptions on diagram edges in the form of line cap labels.

Path Lookup

.

Vendor Support and Improvements

  • Added IPv6 support for the Palo Alto AAA, NTP, SNMP, Syslog and OSPFv3 tasks.
  • Added IPv6 support for the Cisco NX-OS AAA, ACL, SNMP and Syslog tasks.
  • Aruba IAP - AOS 10+
    • Virtual Controllers are no longer created as devices in IP Fabric due to architectural changes introduced in AOS 10.
    • The cluster group name is now displayed in a new column, AP Cluster Name, within the table: Technology/Wireless/Access points.
  • Added support for Fortinet IPv4 and IPv6 route summary tables.
  • Added support for Cisco ASA, ACI, IOS XR, NX-OS, FTD and Palo Alto IPv6 route summary tables.
  • Added port-channel support and management interface for Meraki switches.
  • Fixed xDP interface numbering for Meraki firewalls.
  • Added switchport support on the LAN side of Meraki firewalls.

API Changes

  • Introduced a new API error code: API_VENDOR_CONNECTION_TEST_FAILED. Updated the AWS API connection tester to use this new error code instead of the previous API_URL_NOT_REACHABLE.

API Endpoint Deprecation

.

Experimental Features

.

Miscellaneous
