Device data is collected through the Meraki API. This approach presents certain challenges, as not all information is consistently available. In some cases, specific workarounds have been implemented to ensure data completeness. For more details, see the Workarounds for Not Available Data section below.

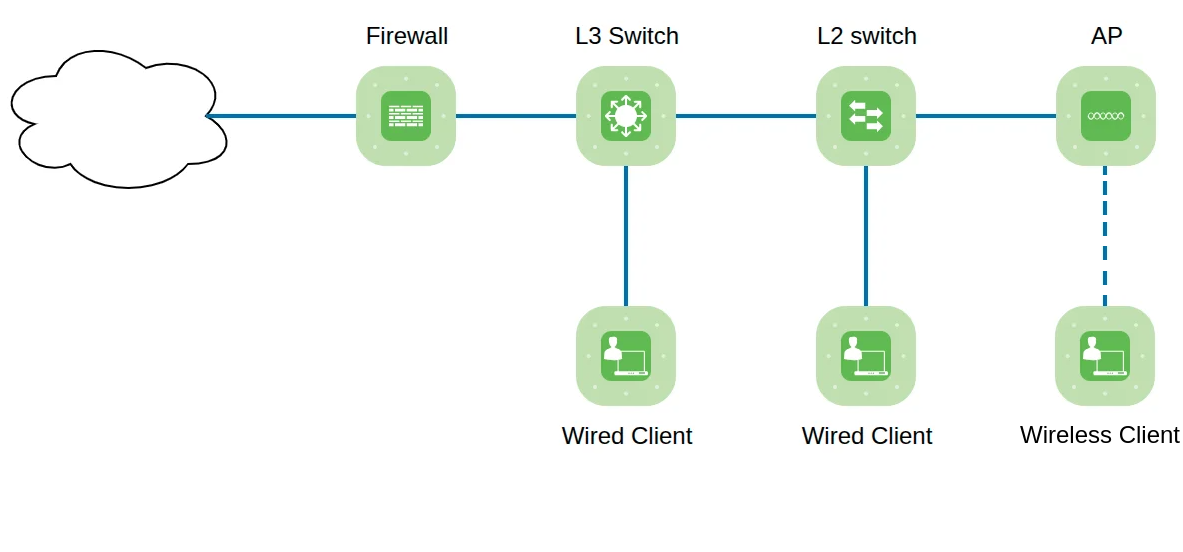

Network Diagram

As of version 7.8, the Meraki network diagram displays:

  • L1 connections using the LLDP/CDP protocol
  • L2 connections based on the RSTP protocol
  • L3 links derived from ARP and routing information

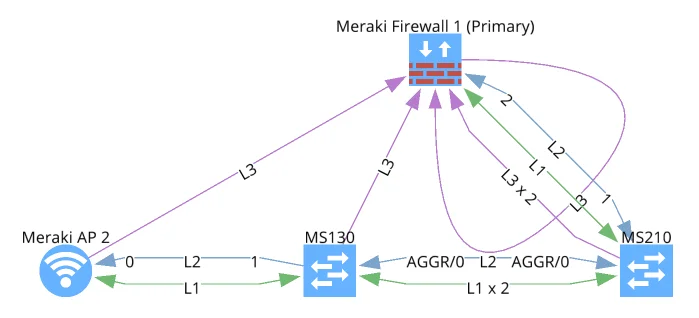

Meraki Network

Path Lookup

Currently supported path types include:

  • Switches – may consist solely of Meraki devices or a mix of Meraki and non-Meraki switches.
  • Meraki Firewalls (FWs) – VLAN Routed mode.
    • Limitation: For ARP data, only the client table is used, and no MAC table is available. As a result, traffic is flooded to all internal (LAN/VLAN) interfaces.

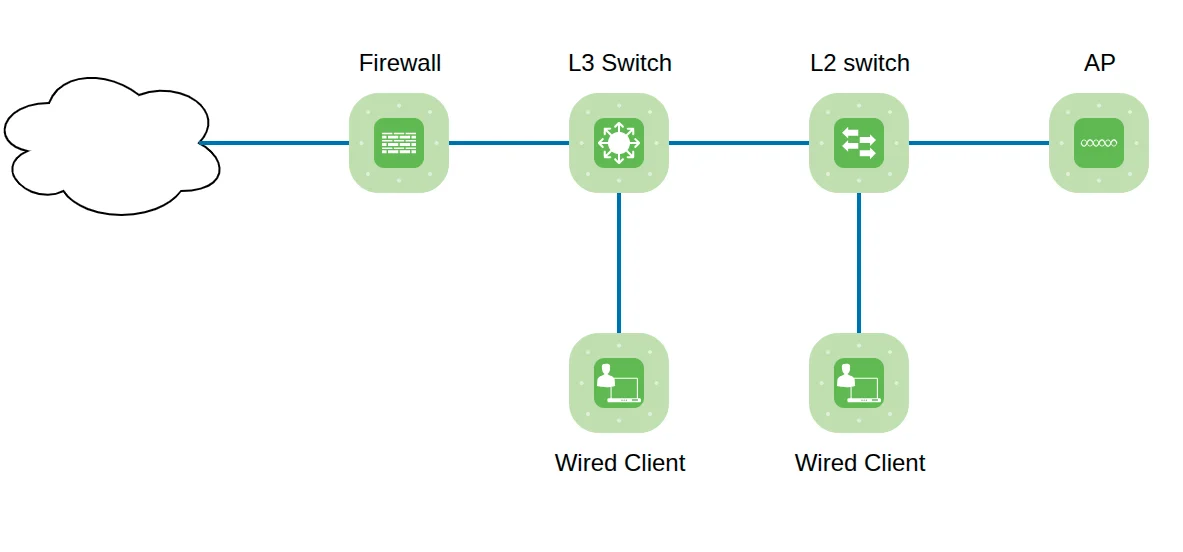

Meraki Path Lookup 1

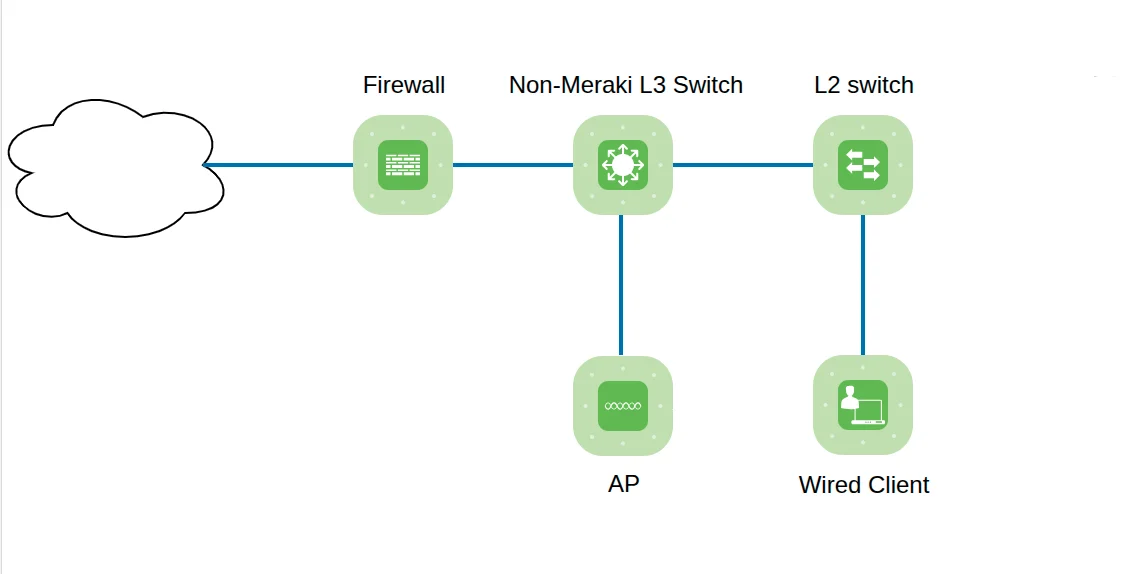

Meraki Path Lookup 2

## Example

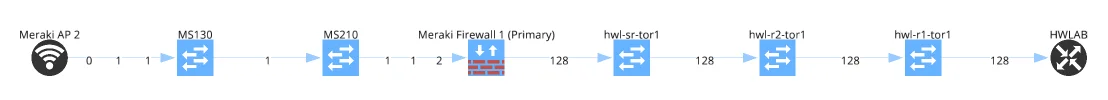

From LAN via FW

The absence of a MAC table is illustrated here. The orange firewall floods traffic to all internal (LAN/VLAN) ports.

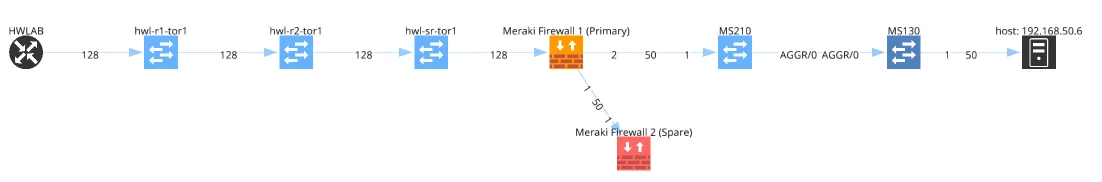

To LAN via FW

Workarounds for Not Available Data

Firewalls

  • Firewalls have switch ports on the internal (LAN/VLAN) side but do not support STP. To generate L2 links, all firewall ports are treated as part of STP, with ports in a forwarding state when enabled.
  • The ARP table is not available for firewalls. Instead, the client table is used, which provides only ARP-like data for devices on the internal (LAN/VLAN) side of the firewall.
