ipf-checker

ipf-checker is a Python script, which is inspired by rpk redpanda check resource checker. It reports whether the hardware requirements, environment checks and dependencies are all met by the IP Fabric appliance to ensure smooth operation.

It can display the results in a clean, readable table and also write them to a file. The end goal is to include it in every deployment of IPF appliances and trigger it automatically with each techsupport generation.

Use

Execute shell command ipf-checker and use options if needed.

ipf-checker [-h] [-q] [-c] [-d [TIMEOUT_MINUTES]] [-b [username] [password] | -t [x-api-token] | -a [access-token] | -s]

Resource validation tool for the IP Fabric appliance that displays a table in the terminal and shows the results of various environment checks in real time.

options:
  -h, --help            show this help message and exit
  -q, --quiet           Quiet option for ipf-checker with no output in console.
  -c, --no-color        No color or style output in console.

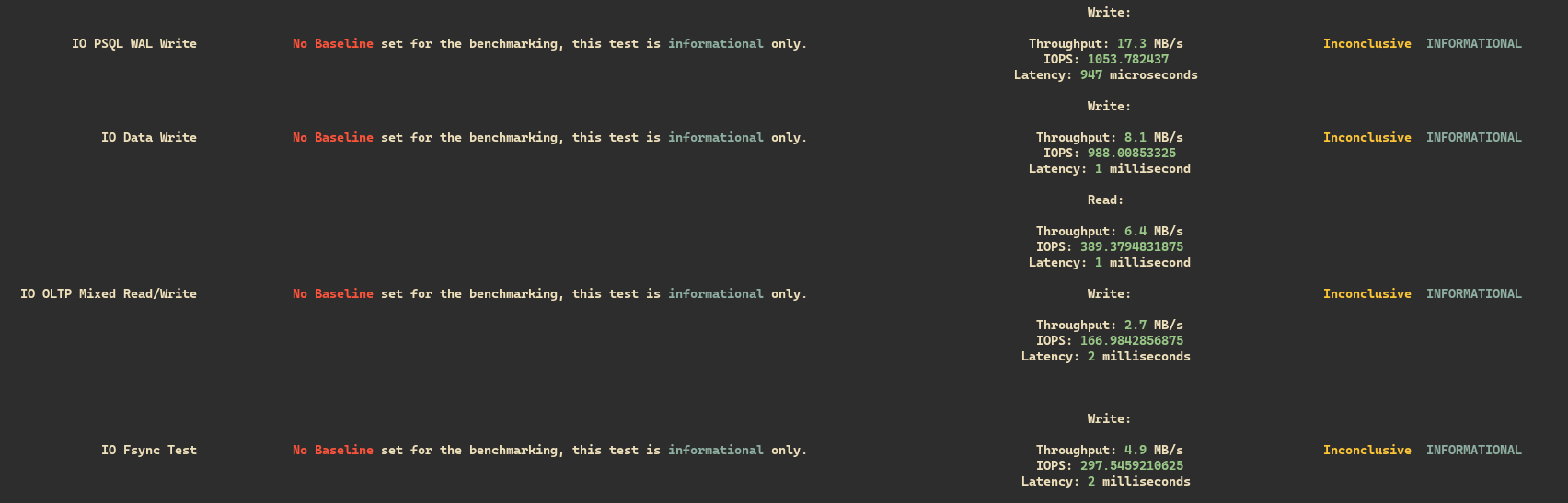

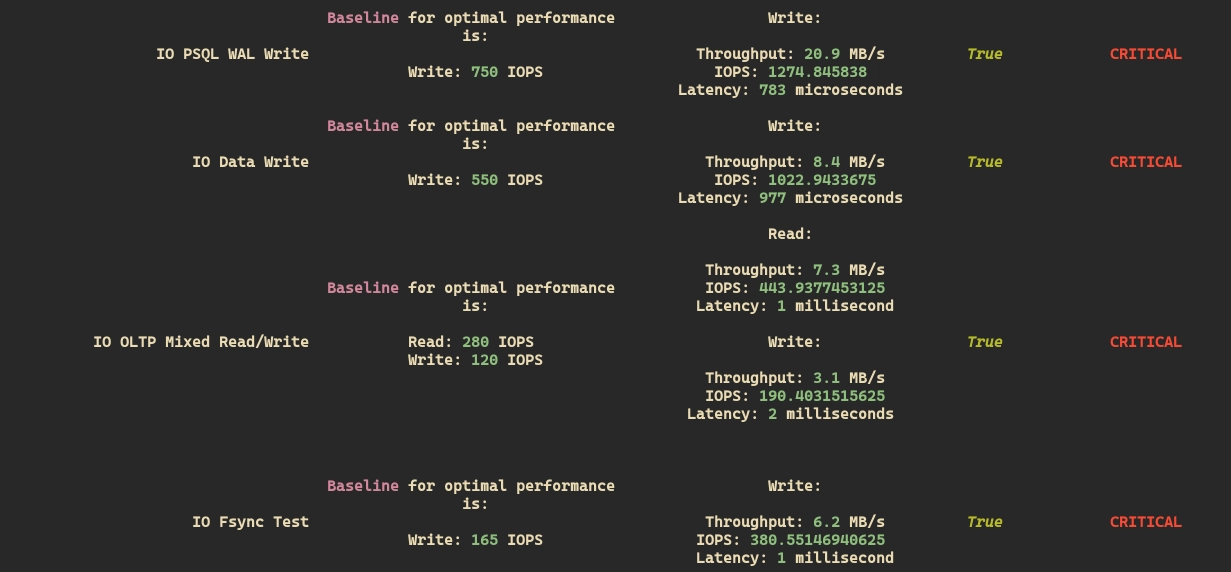

  -d [TIMEOUT_MINUTES], --disk-benchmark [TIMEOUT_MINUTES]
                        Perform a read and write disk benchmark on the machine. An optional argument can be passed to specify the timeout in minutes. WARNING!!! The test might take a really long time.
  -b [username] [password], --basic [username] [password]
                        Passing basic credentials for calling IP Fabric endpoints.
  -t [x-api-token], --x-api-token [x-api-token]
                        Passing X-API-TOKEN for calling IP Fabric endpoints.
  -a [access-token], --access-token [access-token]
                        Passing basic credentials for calling IP Fabric endpoints.
  -s, --skip-auth       Skipping tests that need authentication.

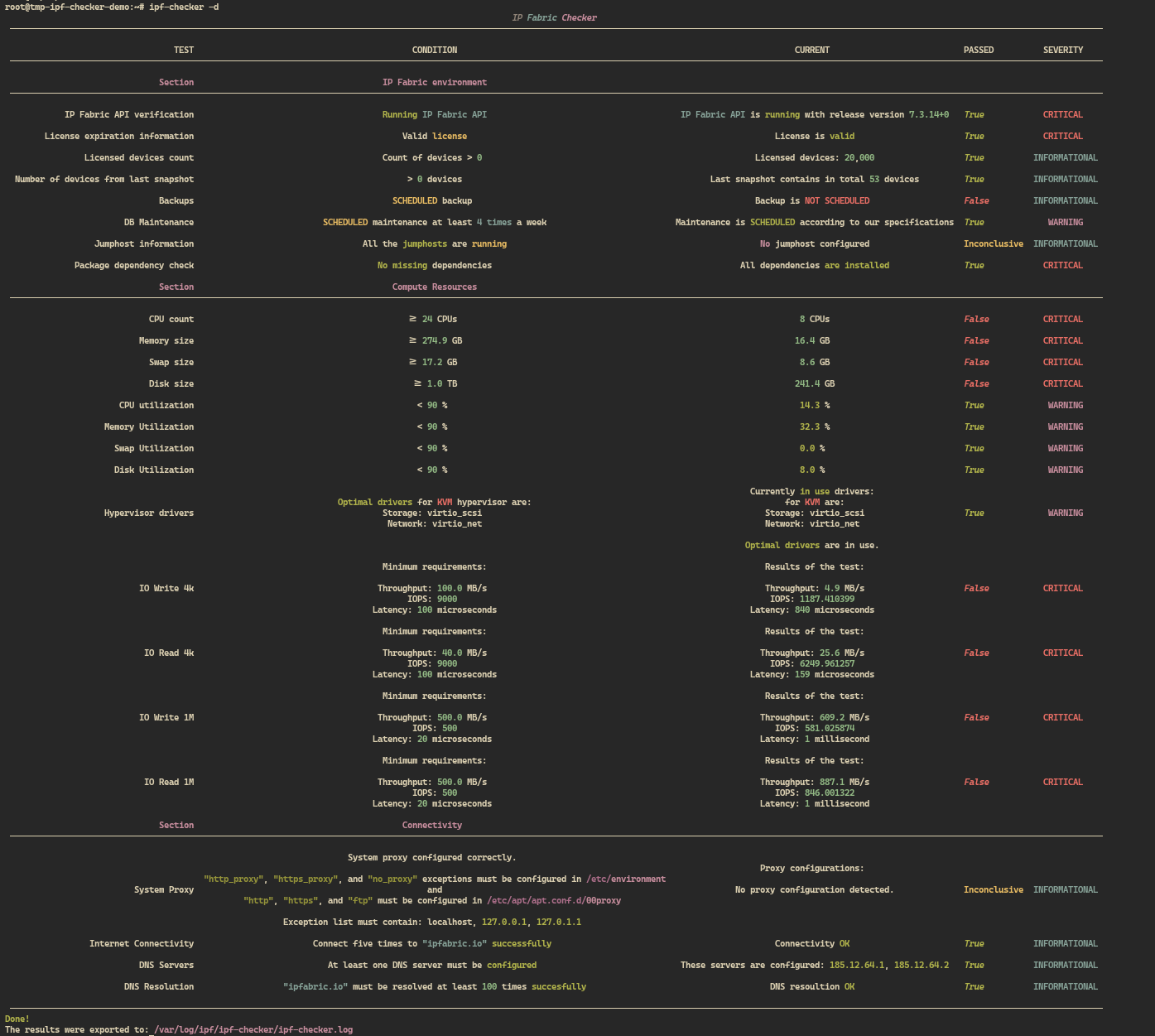

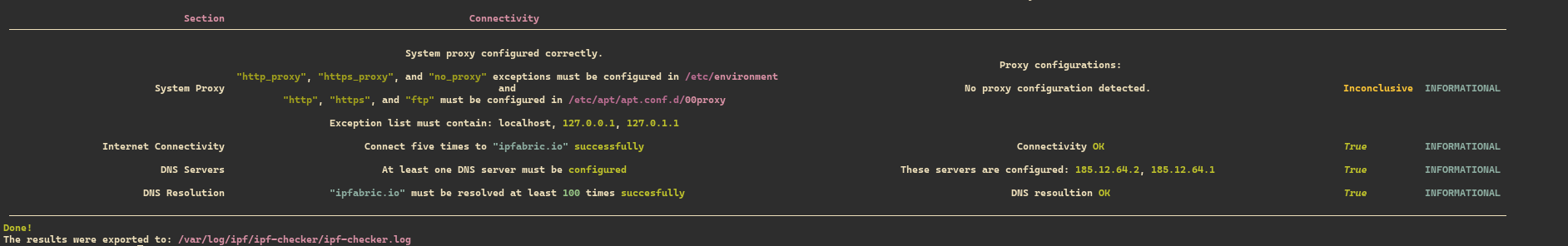

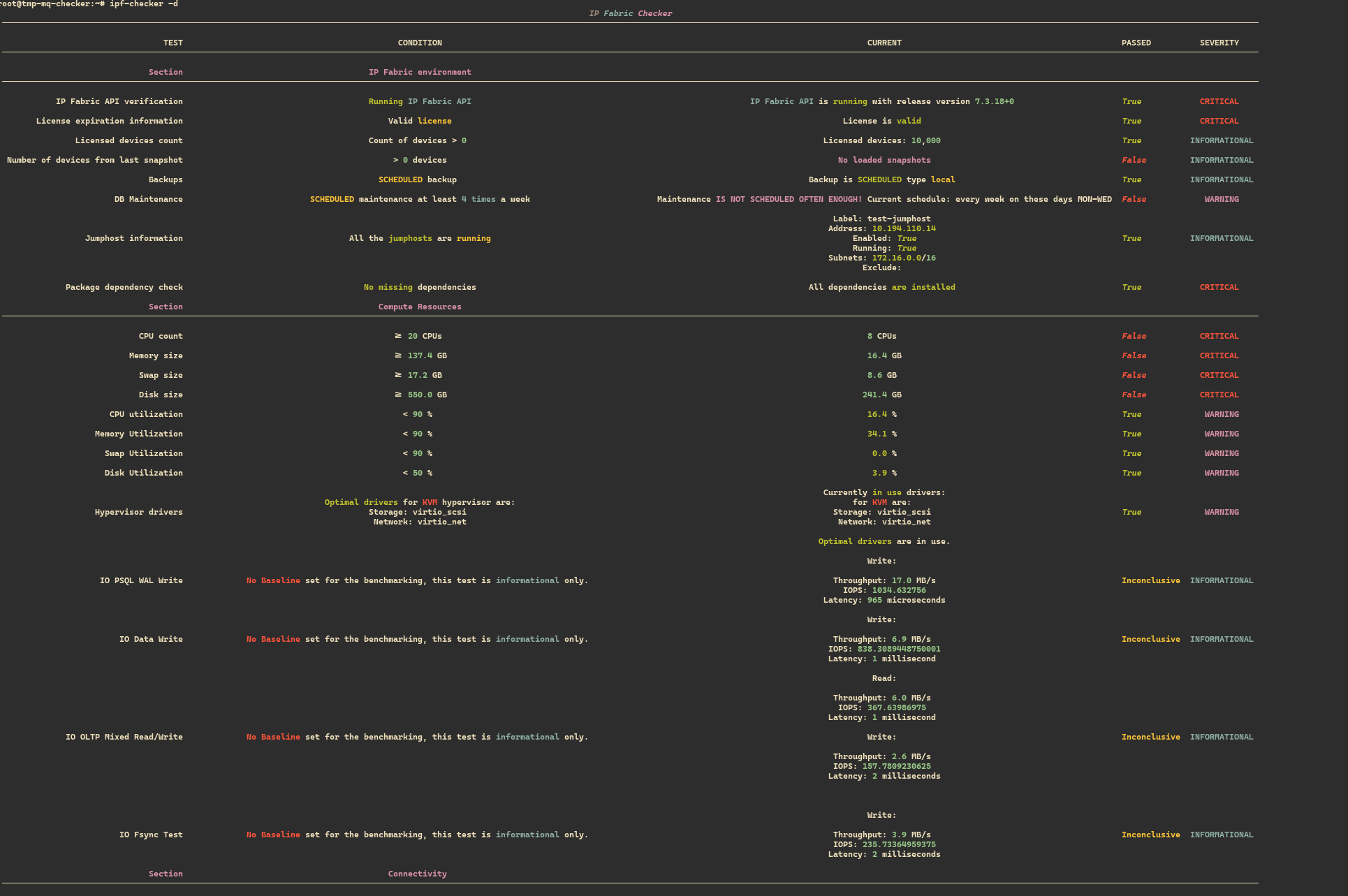

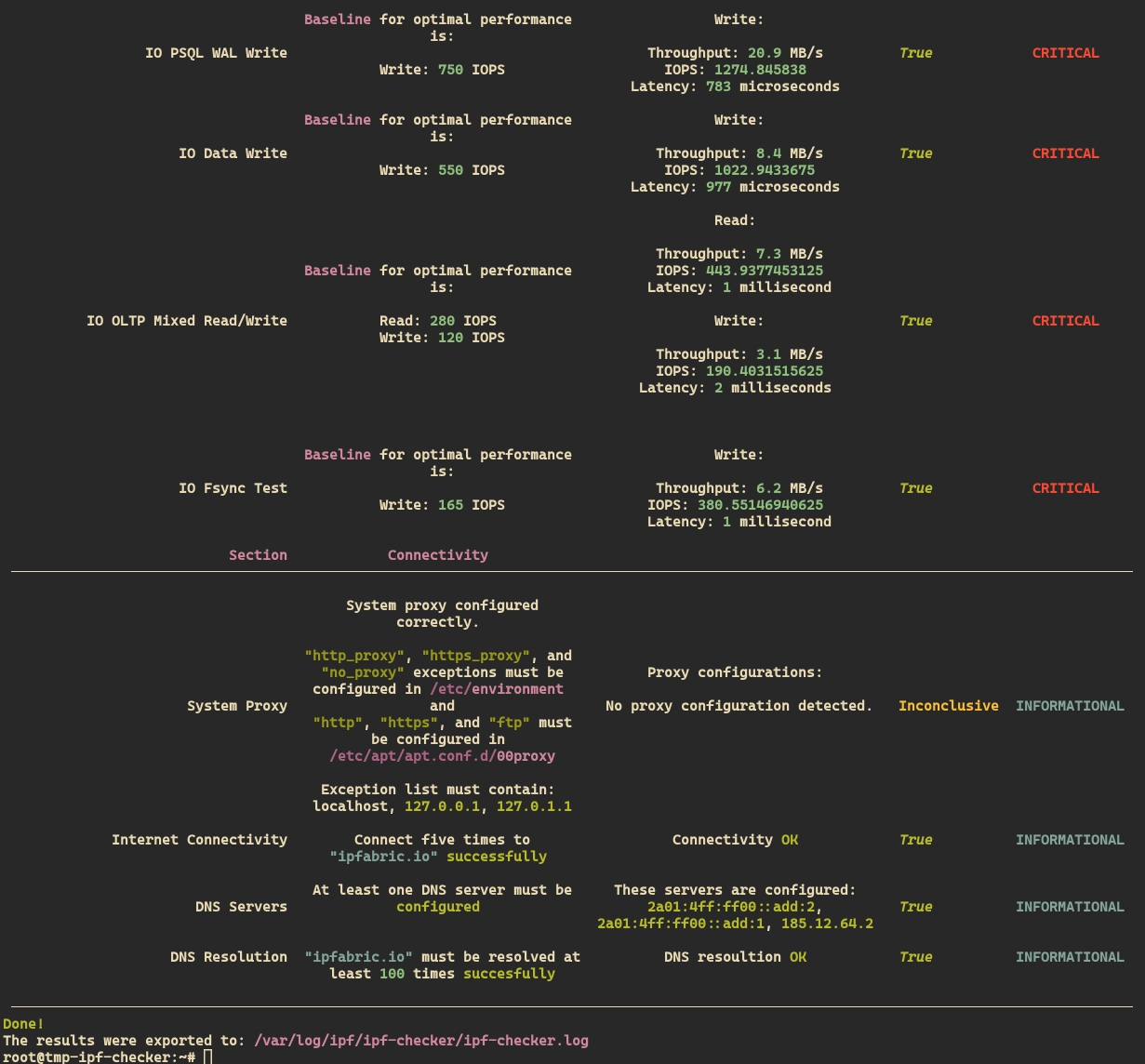

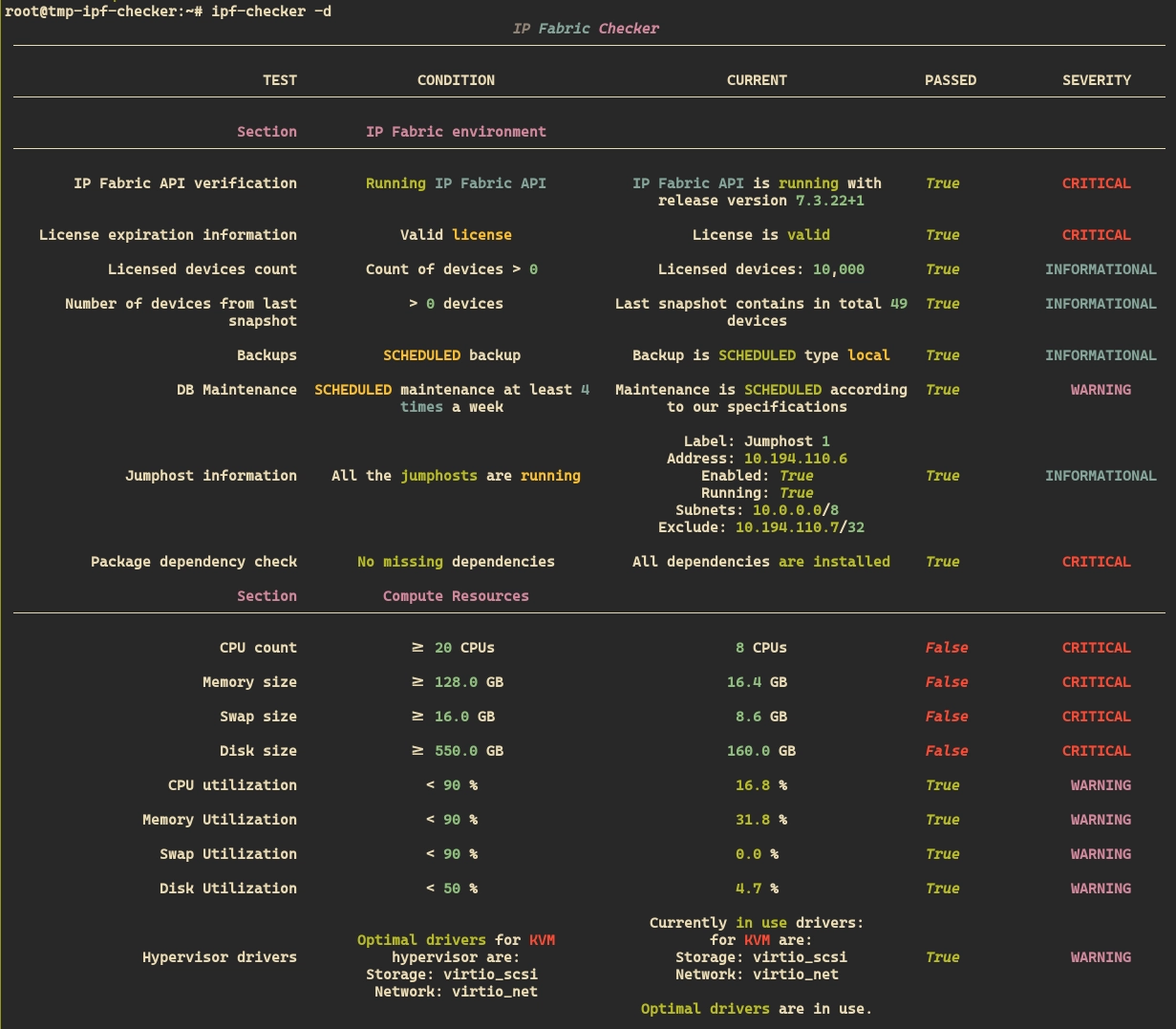

Results table

The script will generate a table with the results of the checks performed. Example ipf-chekcer output

Environment variables

In your home directory, you can create the .ipf-checker/env file, which can contain any of the following environment variables:

IPF_CHECKER_LOG_LEVEL= # default is INFO
IPF_CHECKER_TOKEN=
IPF_CHECKER_DISK_BENCHMARK_TIMEOUT= # default is 45

If the token is set in an environment variable, it will be used automatically when executing the script. Shell authentication arguments override the token.

Generating API Token

An API token is required when executing the script with authenticated tests enabled. You can generate the token in the IP Fabric UI.

There is an ipf-checker role you can choose for the token, ensuring the tool has access only to the necessary endpoints and nothing more.

Token generation

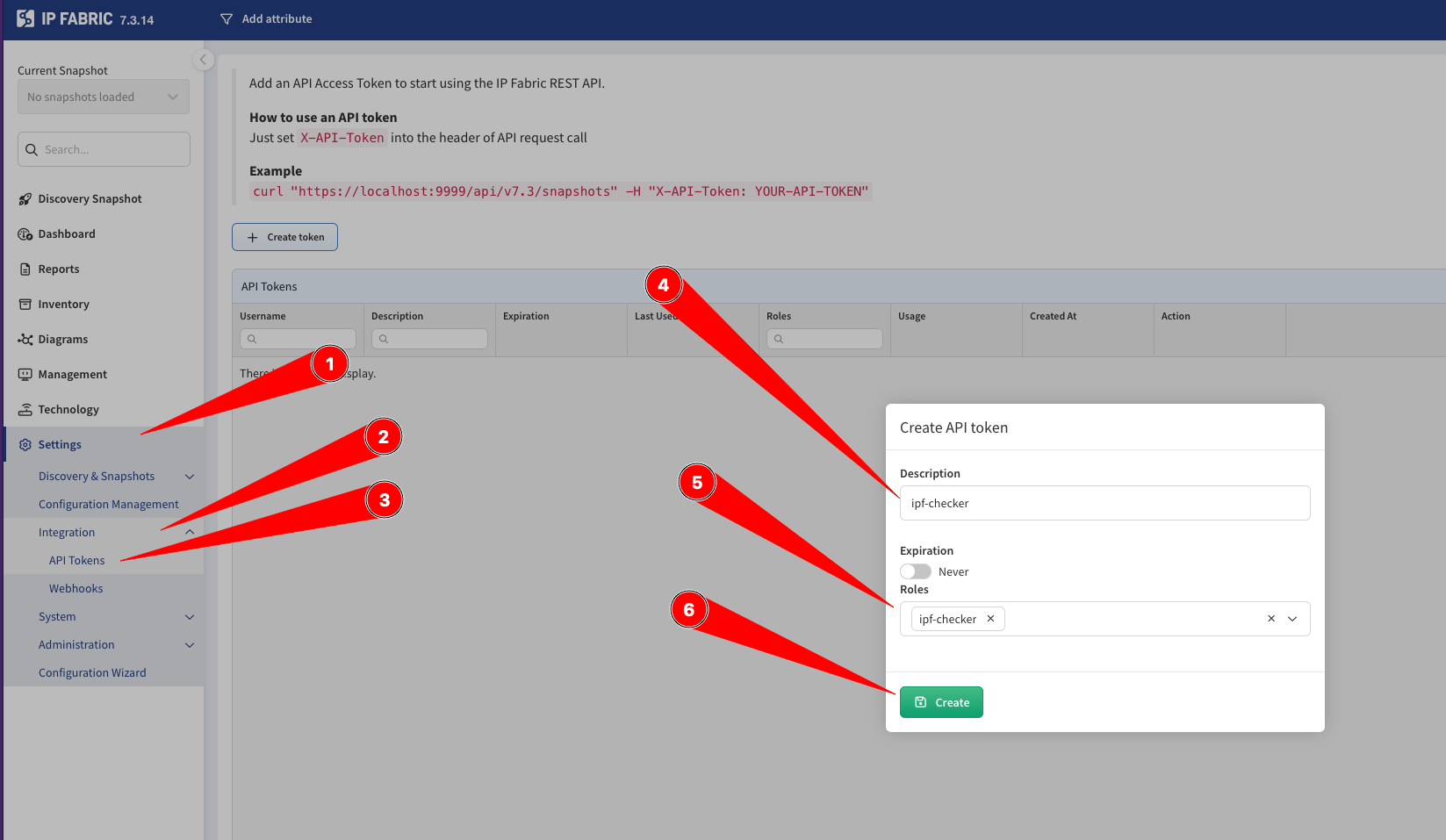

The API token can be generated in the IP Fabric UI by going to Settings -> Integrations -> API Tokens and clicking on the Generate Token button. Copy the token and use it with the -t option or set it in the .ipf-checker/env file as IPF_CHECKER_TOKEN.

Example token geneartion
