Global Filter

Applying an Attribute filter in the IP Fabric GUI will quickly limit the scope of data that will be displayed in tables. Currently, adding a filter will not update Intent Rules or the Dashboard (in development).

Attribute filter

The options for filtering are:

  • Site Name
  • Routing Domain
  • STP Domain
  • Any Snapshot Local Attribute1

Select attribute

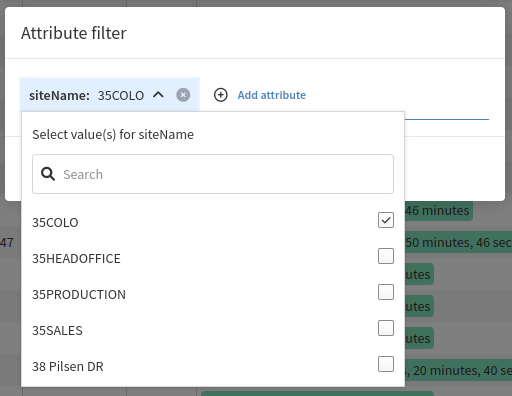

In this example, we are filtering on siteName with the value 35COLO.

Select value(s) for siteName

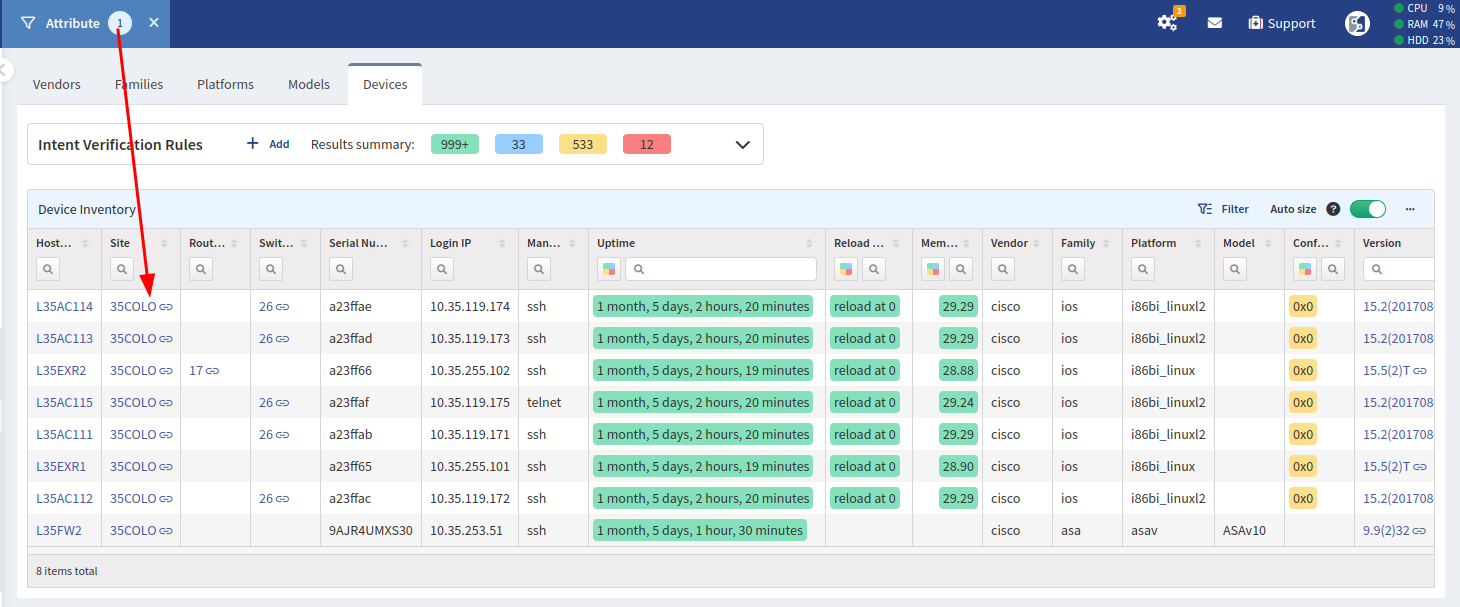

In Inventory → Devices, we can see that the Device Inventory table is filtered to show only devices from the Site 35COLO.

siteName 35COLO selected

Attribute filter for siteName 35COLO applied

  1. See Device Attributes. Please note that after configuring a new Device Attribute globally, a new snapshot must be run for applying it.
