PoE

Useful information about power consumption over the PoE protocol can be found in this section.

Devices

The first tab displays all devices that support PoE protocol, number of PoE interfaces, current power usage, number of ports that uses PoE and highest PoE class available on the device

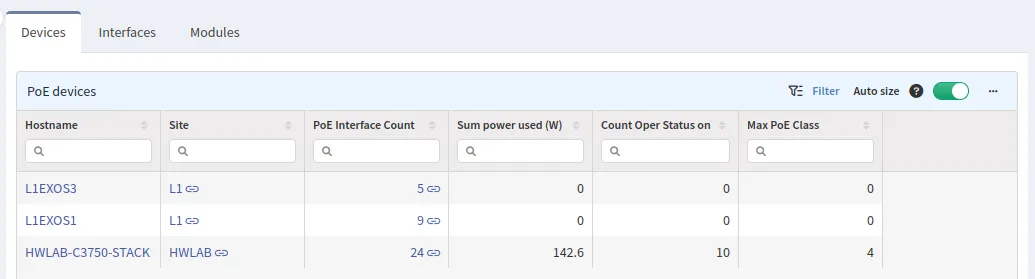

PoE devices table

Interfaces

The PoE interface tab lists all interfaces that support PoE protocol. Filters can be used to check PoE interface status on a particular device. The Admin status column shows the administrative status of an interface. It can be enabled/auto or admin-down, shutdown or disabled. Operation status lists the status of every enabled PoE port. Type/PID of powered devices are available in the Powered Device column if available. The last four columns describe PoE class and power usage.

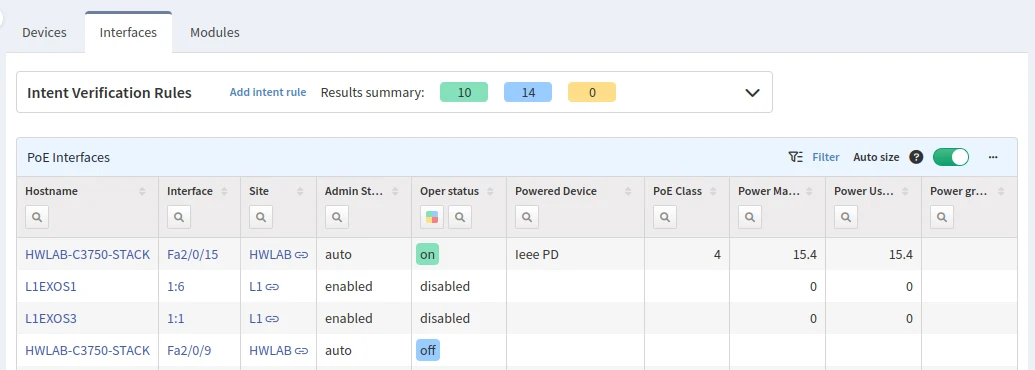

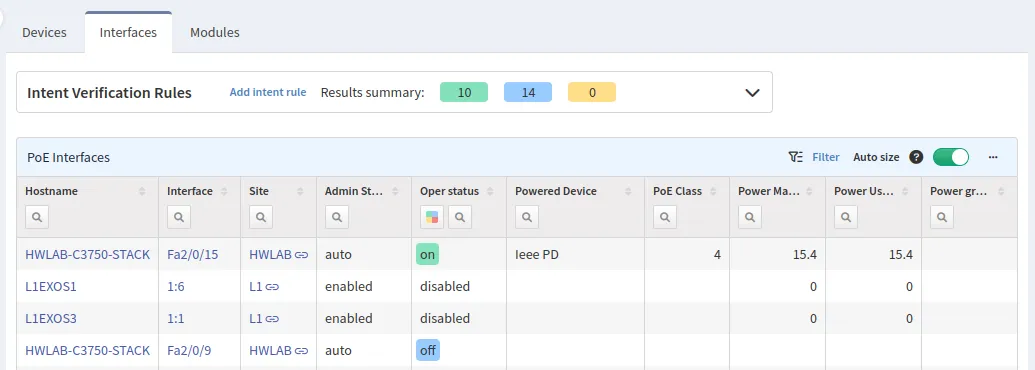

PoE Interfaces table

Modules

The last tab shows the PoE module statistics. This table is especially significant because it shows used power consumption in watts, percentage and how many watts are left.

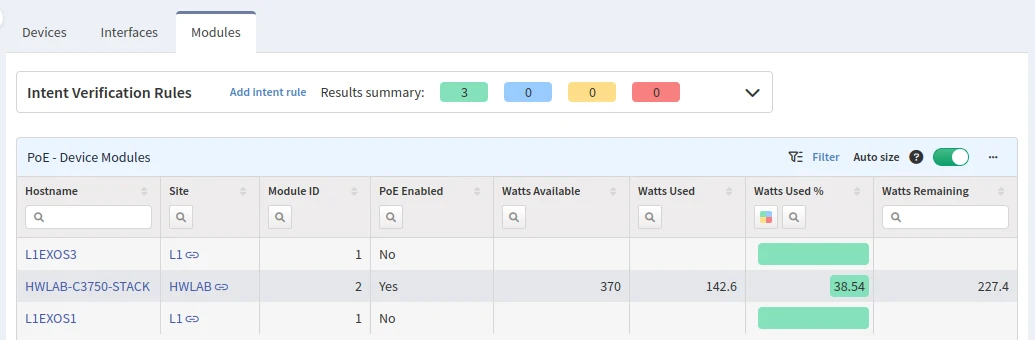

PoE - Device Modules table
