Configuration management can be found at Management → Configuration and backs up the running configuration of managed network devices based on the defined trigger. Downloaded configuration is then available for viewing in full or sanitized formats, or for comparison. Only changed configurations are stored, and these report both the time of the last change and the time of the last configuration check for a change.
Configuration can be retrieved in
sanitized forms. Sanitization removes all passwords and network identification information from the configuration to prevent sharing of sensitive information.
Network access credentials allowing the
show run command (or equivalent)
are necessary for configuration storage and configuration management to work properly. Please review Device Credentials.

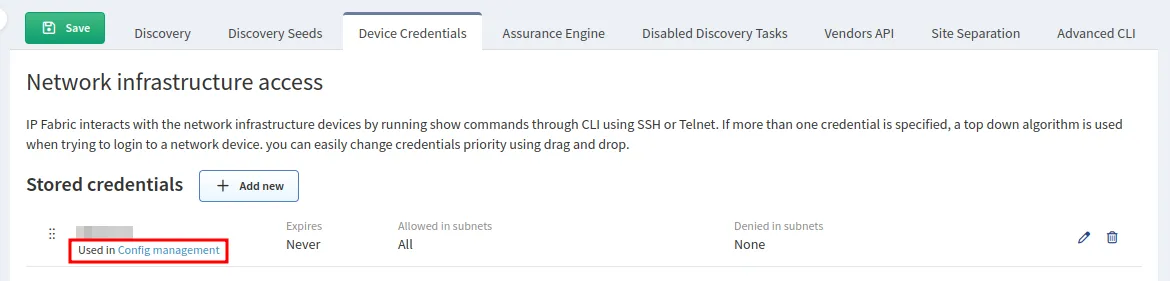

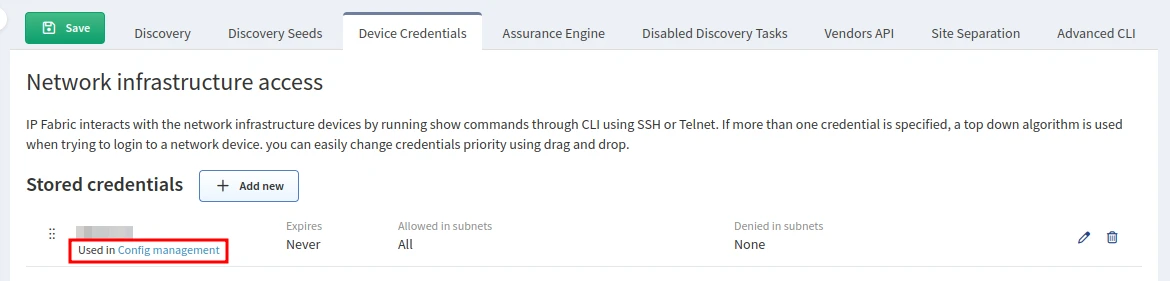

These elevated credentials need Use for configuration management box checked.
Trigger archiving can be configured in settings and can be based on a syslog message or a timed event.
How to read configuration management data
There are the following properties in the Management configuration table:
Serial Number– Serial number of the device
Hostname– Device hostname
Last Change At– The last time before the very next config change
Last Check At– The last config file check before the very next configuration change
Status– Config state indicator that tells us whether:
changed– the config changed within the last check (initial value)
no change– the config did not change within the last check
Hash– Unique ID of the configuration file
We need to realize that every table row, once we filter output for a specific hostname, represents a modified configuration file. When new configuration is found (either brand new, or different from previous) for given device, it is committed to git and new record is entered to DB, with status set to
changed. Next time the device’s configuration is checked, there are two options:
- the configuration file remains the same, in which case status field of the DB record is set to
no change, and
Last Check Atis set to the current time;
- the configuration file is changed again, in which case the new configuration is committed to git and new DB record is inserted into DB with status
Last Change Atand
Last Check Atbeing set to current time, as described above.

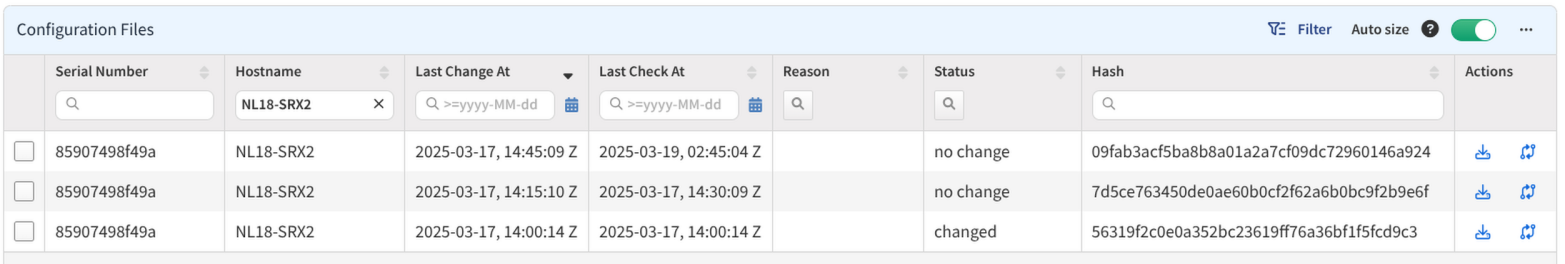

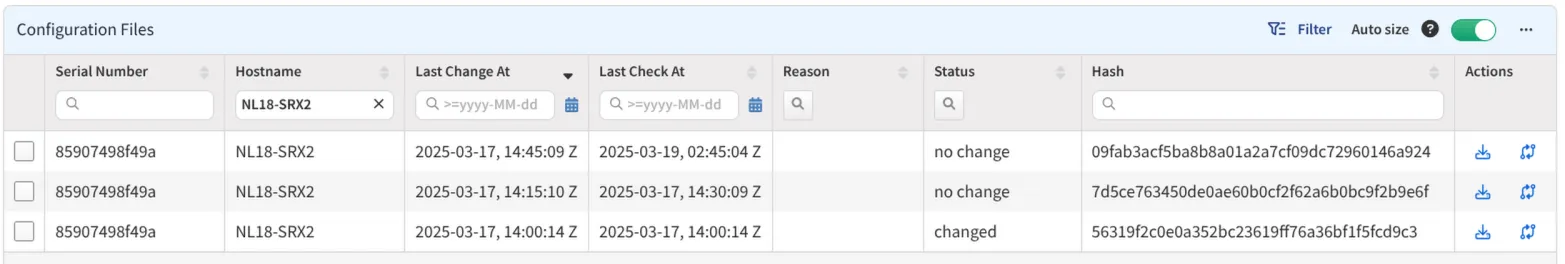

Let’s consider following example:
Let’s go from the bottom of the output:
Last change Atis
Last Check Atis
2022-06-14 01:01:17+02with status
- it means there were no configuration file changes between these two timestamps
- configuration file was checked multiple times and status transitioned from
Last Change Atis
Last Check Atis
2022-06-15 01:02:08+02with status
- it means that configuration file changed
- the status is set to
Stored configurations are displayed in a table that shows information such as the serial number of the device, the device host name, the time when configuration change was detected (
Last Change At column), and the last time a particular configuration was saved in the
Last Check At column.

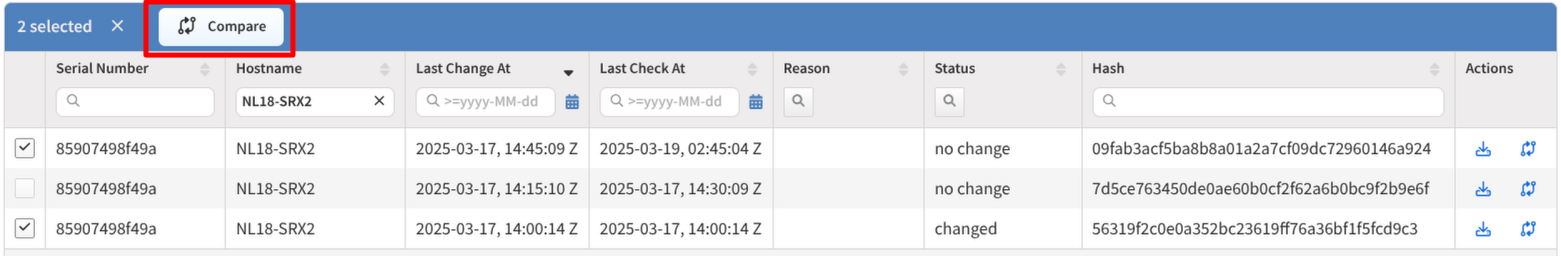

The table can be used to compare between two different configurations directly from the user interface. This is done by selecting the

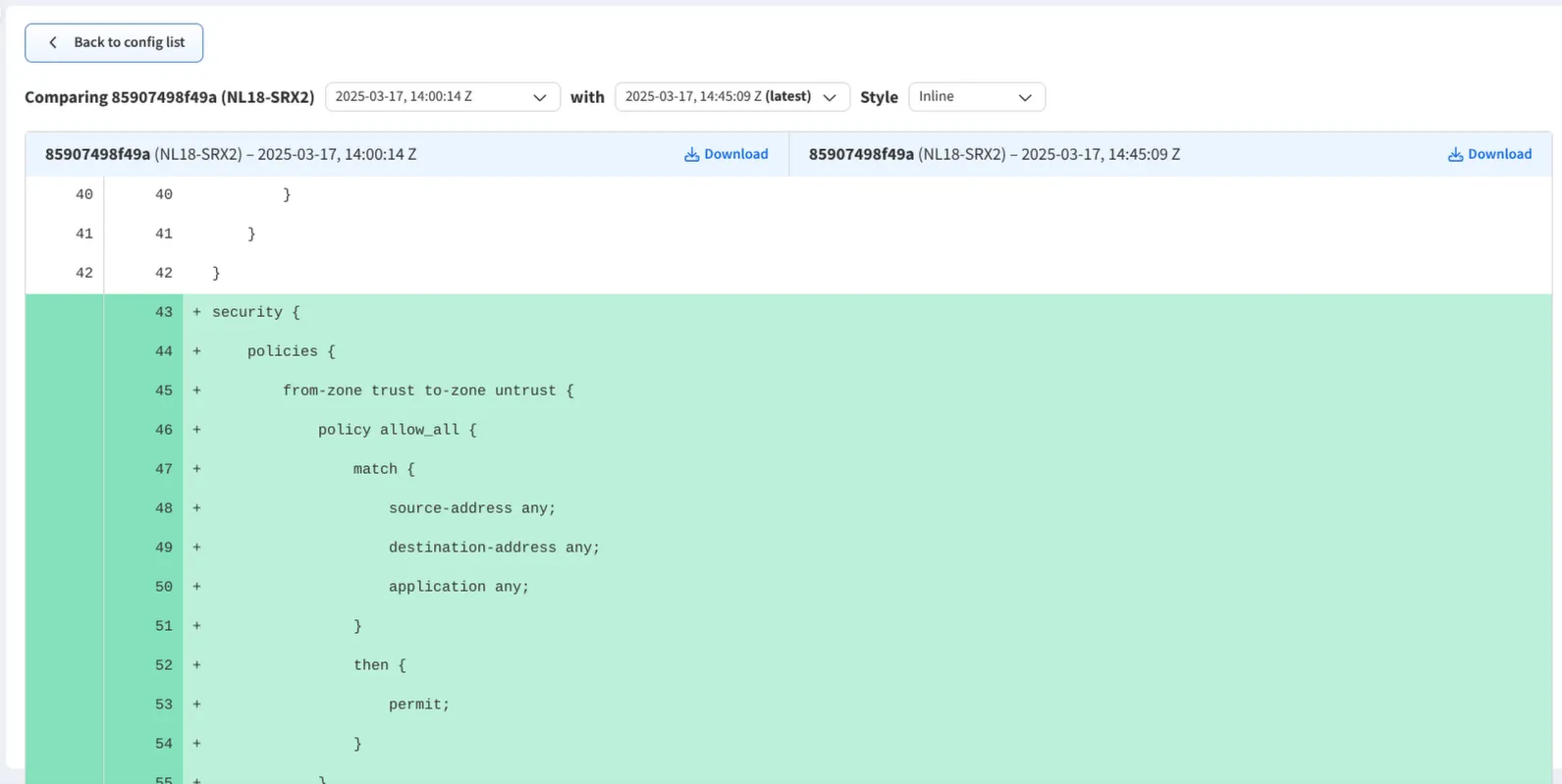

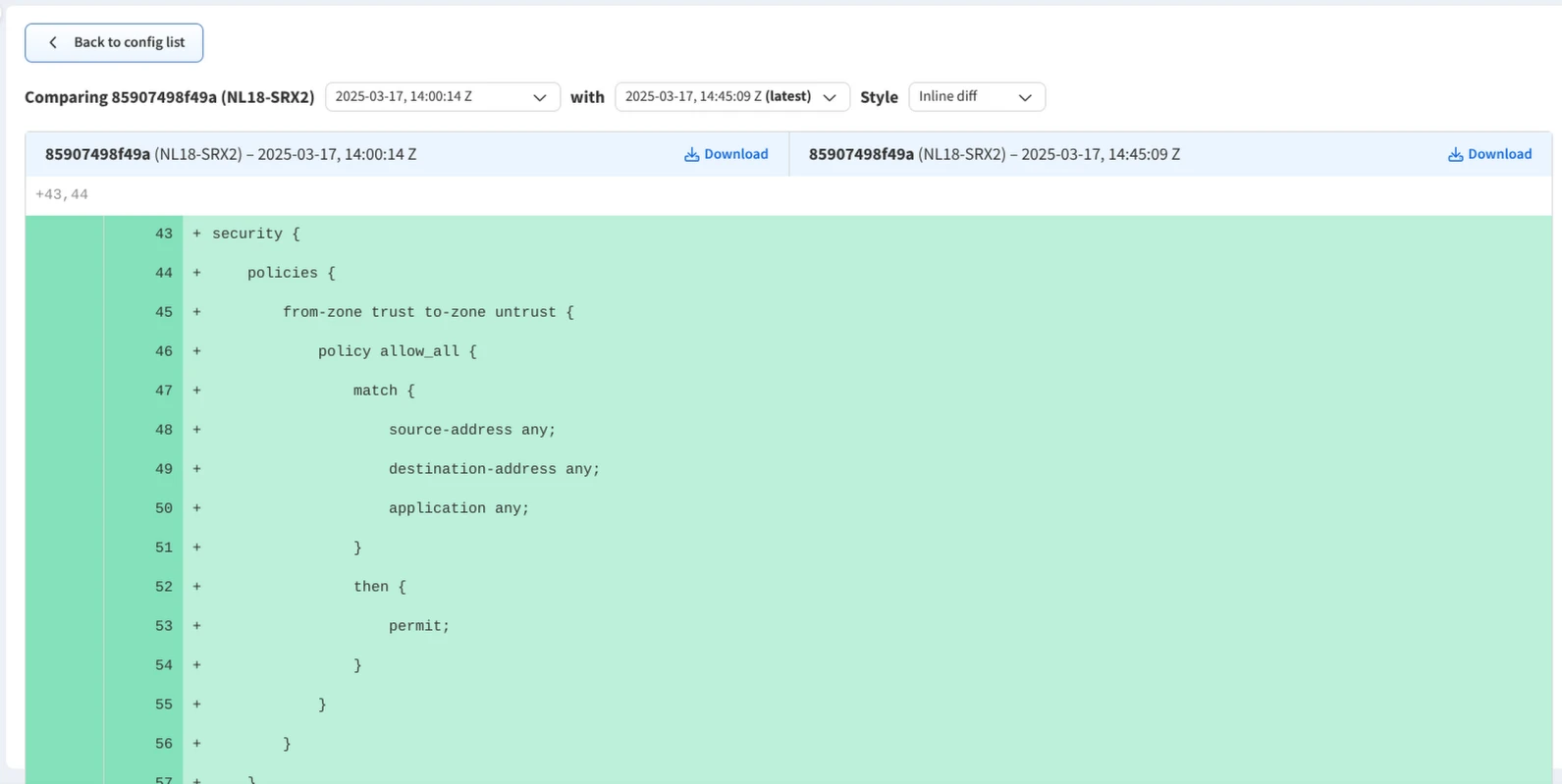

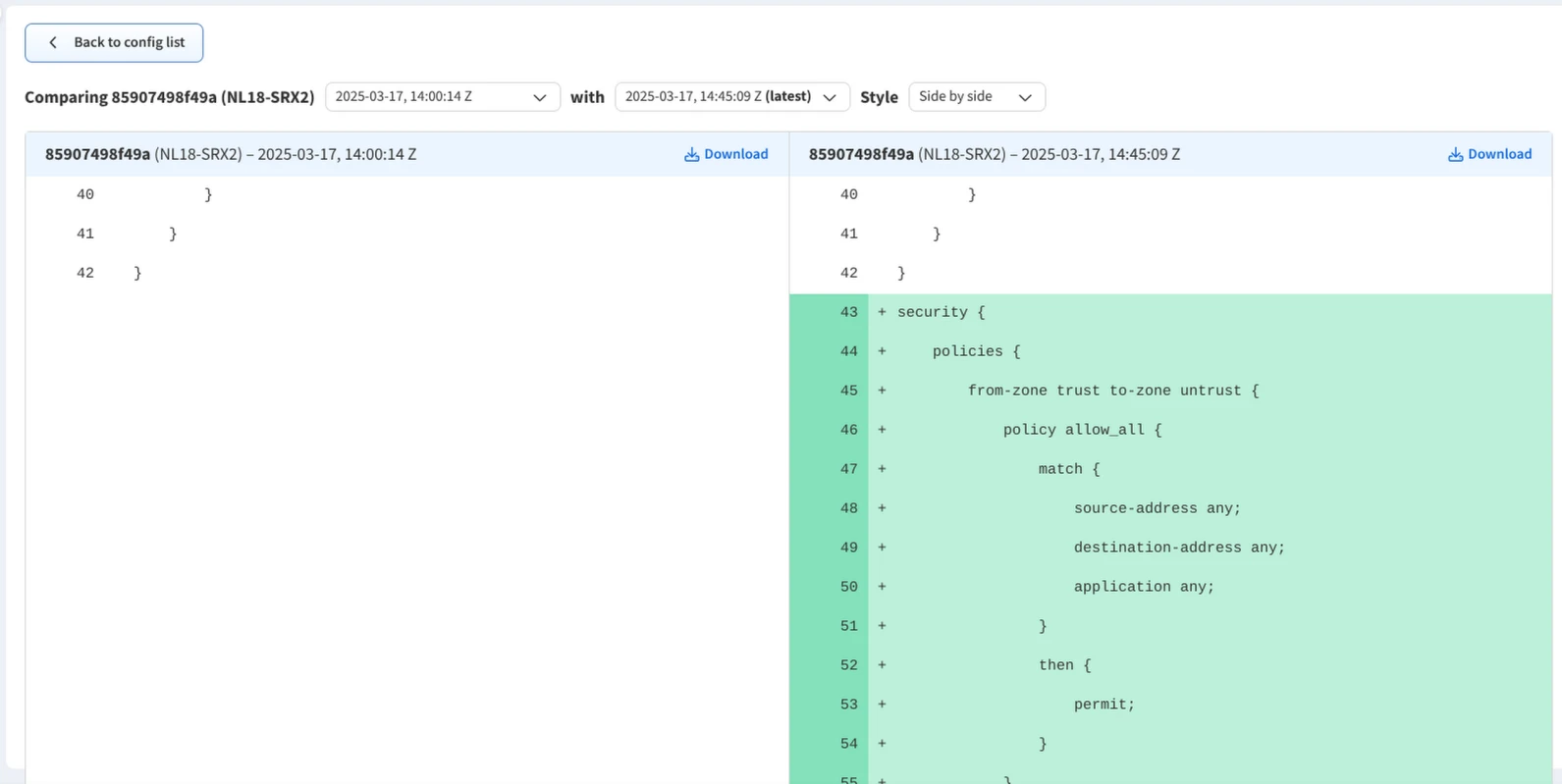

After states to compare, and the resulting differences can be displayed side-by-side, inline with all rows, or inline with only rows where the changes have occurred.
