fw ctl pstat Command Requires Admin Rights
Known Affected platforms: All
Result: Without this command collected no memory utilization will be present
ARP table contains only master
VSYS 0 entries
Known Affected Software Versions: R80.30 and R80.40
show arp dynamic all on VSx always (by mistake) shows ARP only for the
master VSYS 0 regardless of active
VSYS. It is a confirmed bug on the Check Point firewalls.
Discovery of Security Policies
- Dynamic objects and negated services are not supported
- Settings → Discovery & Snapshots → Discovery Settings → Vendors API in the IP Fabric GUI: In case that base URL points to a multi-domain server address, domains have to be specified
Identity Awareness support
Starting with version
6.5, IP Fabric supports collecting data from the
pdpd daemon. As the
pdp command isn’t by default available from CLISH, an extended command has to be defined first.
The extended command can be defined from CLISH, but the path depends on the OS version currently installed. For example, if the OS version is
R80.40, the command would be:
> add command ipf_pdp path /opt/CPsuite-R80.40/fw1/bin/pdp description "PDP for IP Fabric" > save config
Alternatively, you can define the extended command from the expert mode by using the environment variable
$FWDIR. The parameter
-s saves the configuration:
# clish -s -c "add command ipf_pdp path $FWDIR/bin/pdp description \"PDP for IP Fabric\""
Don’t forget to update the related role and add the
ipf_pdp extended command to it if needed. See the official Check Point documentation.
IP Fabric uses the
ipf_pdp monitor all command to collect information about active users. Log in to the Check Point management server with the credentials used by IP Fabric discovery and run the command to verify the configuration.
Ensure that the predefined
fwm extended command is also enabled for discovery. For more information, see the section below.
Required Permissions For Successful Discovery Over CLI
To successfully discover a Check Point Gateway, correct role have to be assigned to a user. IPF requires role features set as read-only, except of “Virtual-System” where read-write is needed (only if VSX firewalls are in your network, otherwise read-only is enough).
How To Setup a Role From Web GUI
Open Check Point Gaia web interface
Navigate to User Management -> Roles in the left menu

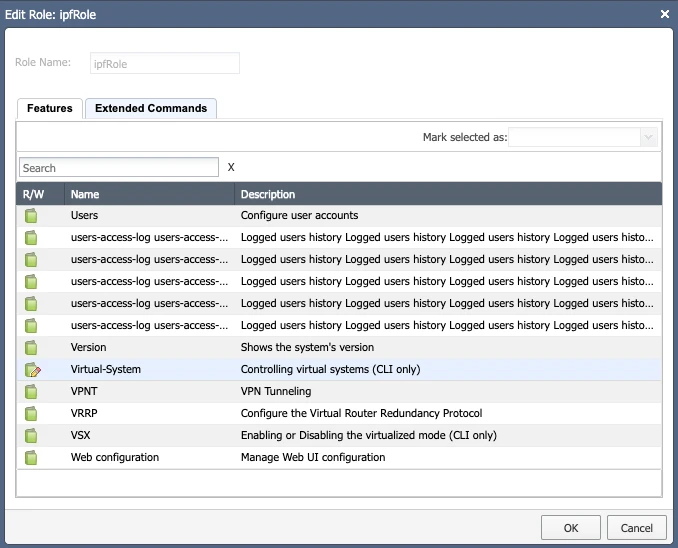

Click Add, fill in the name. In the Features tab select all items and mark them as Read-Only. These permissions from the Extended Commands tab are needed (only if Gaia acts as a management server):
If you have VSX firewall in your network, you have to set Virtual-System feature to Read-Write (we call
set virtual-system \<ID>to switch to proper virtual system). This allows IPF just to change context and can’t be used for anything else.
Assign the role to the user used for IPF discovery
Not all the features are needed for IPF. But as we will add support of new features, it can change. List of currently required features for minimal working setup (IPF 4.0, Gaia R81):
Advanced VRRP, ARP, BGP, Cluster, Display Configuration, Domain Name, Host Name, Management Interface, Netflow Export, Network Interfaces, Network Management, NTP, OSPF, Route, Routing Monitor, SNMP, System Configuration, Virtual-System, VRRP, VSX.
