Techsupport

Info

The techsupport file from IP Fabric is one of many ways how you can share the discovered data with our support team and engineers. This quick tutorial demonstrates how to generate the file and share it with us. The techsupport file is encrypted. Only IP Fabric support staff is able to decrypt the data.

Generating Techsupport File

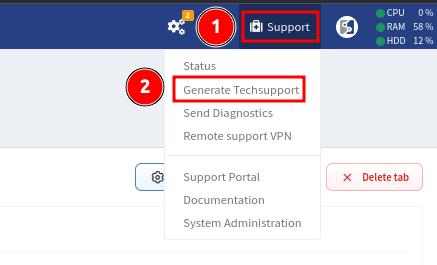

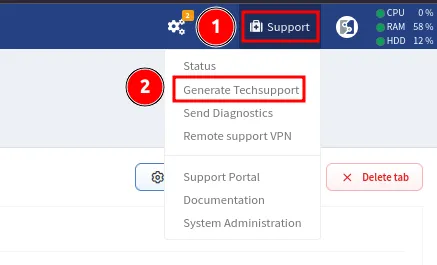

Go to Support → Generate Techsupport

Generate techsupport

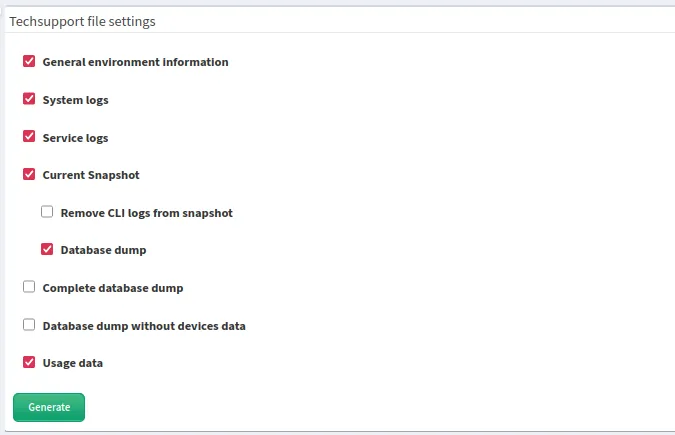

Select data to be included in a Techsupport file (leave in default when in doubt)

Configure techsupport

Uploading a Techsupport File

WEB / HTTPS

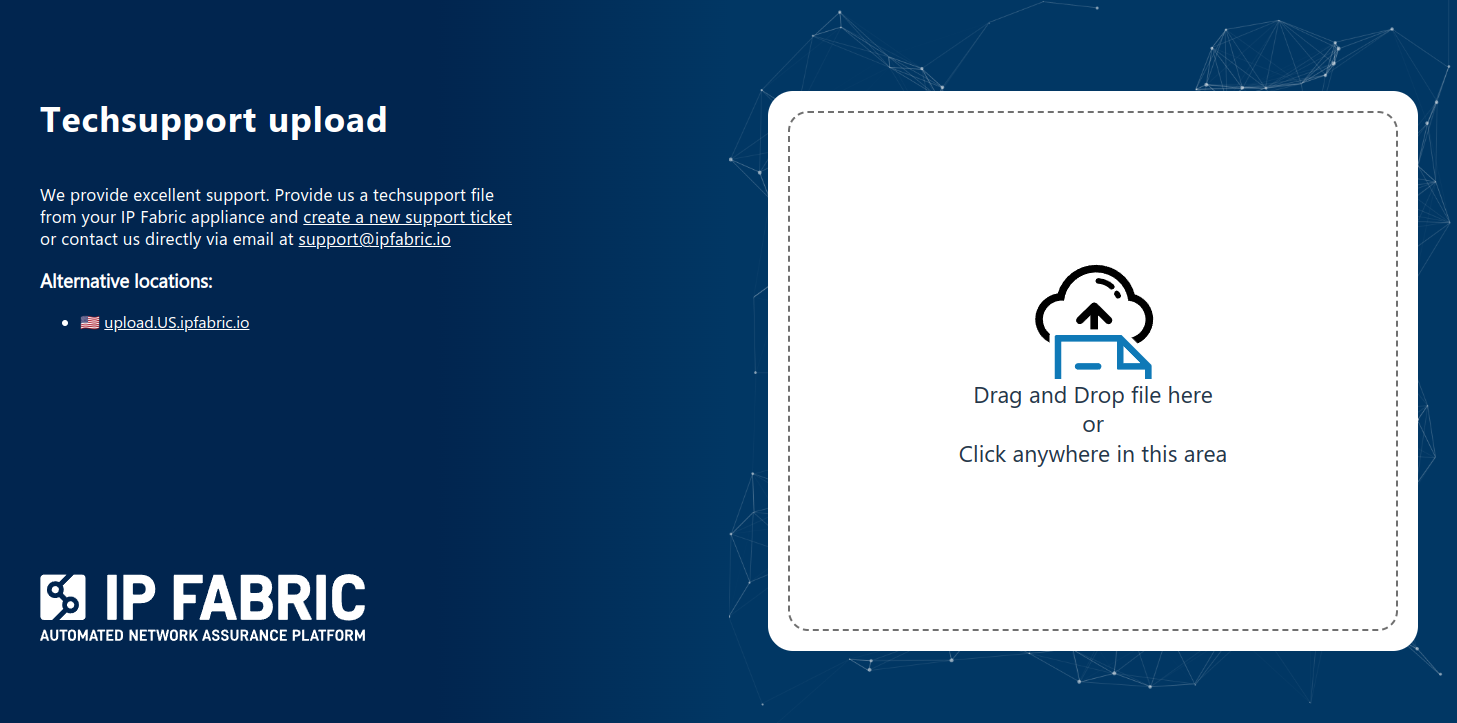

Please, visit https://upload.ipfabric.io with your browser to upload a generated techsupport for IP Fabric team.

curl

If your IP Fabric machine has direct internet access, you can upload techsupport directly from it using the following curl command:

curl --user username:password \
-T "/home/autoboss/files/techsupport-xxx.tar" \
-X POST https://upload.eu.ipfabric.io/upload \
-f

Generated techsupport files are located in /home/autoboss/files/ folder. Username and password are provided by technical support.

What Is Included In The Techsupport File?

  1. System logs – Includes syslog, dmesg, RabbitMQ, MongoDB, ArangoDB and IP Fabric API service logs. Customer data are not included.
  2. Service logs – Includes IP Fabric discovery service logs without CLI.┬áCustomer┬ádata are limited, only IP addresses which were used during discovery and serial numbers of devices.
  3. Current Snapshot – Includes selected snapshot

    • Remove CLI logs from snapshot – Removes devices CLI logs from snapshot
    • Database dump – Includes database dump of selected snapshot.
  4. Complete database dump – Includes database dump of all snapshots which are loaded in memory

  5. Database dump without devices data – Removes all collected data from devices. Dump contains only error and service tables.

Info

Snapshot and database dump doesn’t include any customer credentials (passwords, keys etc.)
