Configuration

Overview

Configuration management can be found in Management → Configuration and backs up the running configuration of managed network devices based on the defined trigger. The downloaded configuration is then available for viewing in full or sanitized formats or for comparison. Only changed configurations are stored, and these report both the time of the last change and the time of the last configuration check for a change.

Configurations can be retrieved in full or sanitized forms. Sanitization removes all passwords and network identification information from the configuration to prevent the sharing of sensitive information.

Credential Requirements

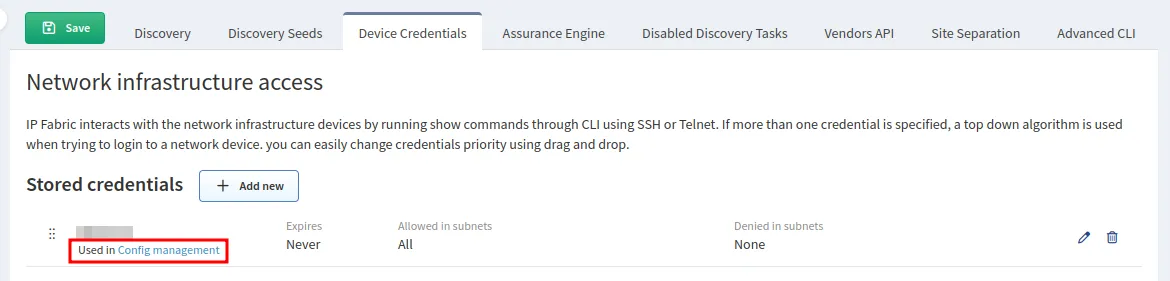

Network access credentials allowing the show run command (or equivalent) are necessary for configuration storage and configuration management to work properly. Please review Device Credentials.

These credentials need to have the Use for configuration management box checked.

Trigger

Trigger archiving can be configured in settings and can be based on a syslog message or a timed event.

How To Read Configuration Management Data

There are the following properties in the Management configuration table:

Serial Number – Serial number of the device.
Hostname – Device hostname.
Last Change At – The last time before the very next config change.
Last Check At – The last config file check before the very next configuration change.
Status – Config state indicator that tells you whether:
- changed – The config changed within the last check (initial value).
- no change – The config did not change within the last check.
Hash – Unique ID of the configuration file.

Note that every table row, once you filter output for a specific hostname, represents a modified configuration file. When a new configuration is found (either brand new or different from previous) for a given device, it is committed to git, and the new record is entered into the DB, with status set to changed. Next time the device’s configuration is checked, there are two options:

The configuration file remains the same, in which case, the status field of the DB record is set to no change, and Last Check At is set to the current time.
The configuration file is changed again, in which case, the new configuration is committed to git, and a new DB record is inserted into the DB with status changed and Last Change At and Last Check At being set to current time, as described above.

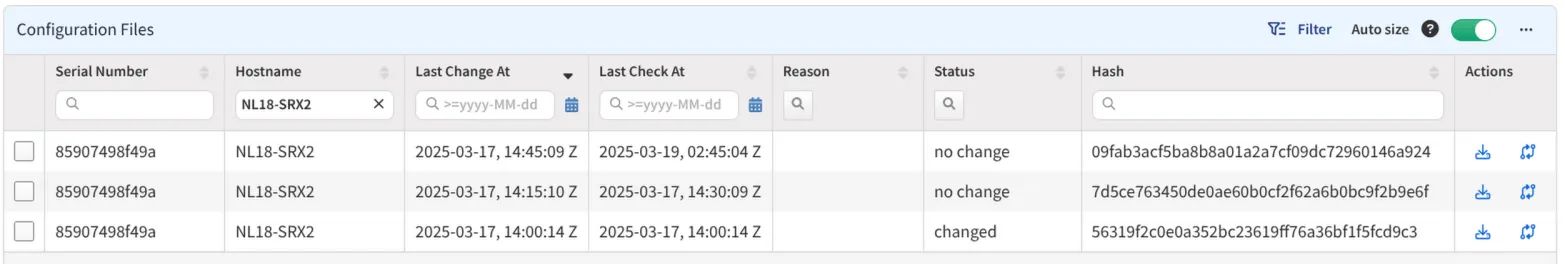

Let’s consider the following example:

Let’s go from the bottom of the output:

Last change At is 2024-01-02, 16:13:53 Z, and Last Check At is 2024-01-08, 12:33:21 Z with status no change.
- It means there were no configuration file changes between these two timestamps.
- Configuration file was checked multiple times, and status transitioned from changed to no change.
Last Change At is 2024-01-08, 12:43:55 Z, and Last Check At is 2024-01-08, 12:43:55 Z with status changed.
- It means that configuration file changed.
- The status is set to changed.

Comparing Configurations

Stored configurations are displayed in a table that shows information such as the serial number of the device, the device hostname, the time when configuration change was detected (the Last Change At column), and the last time a particular configuration was saved in the Last Check At column.

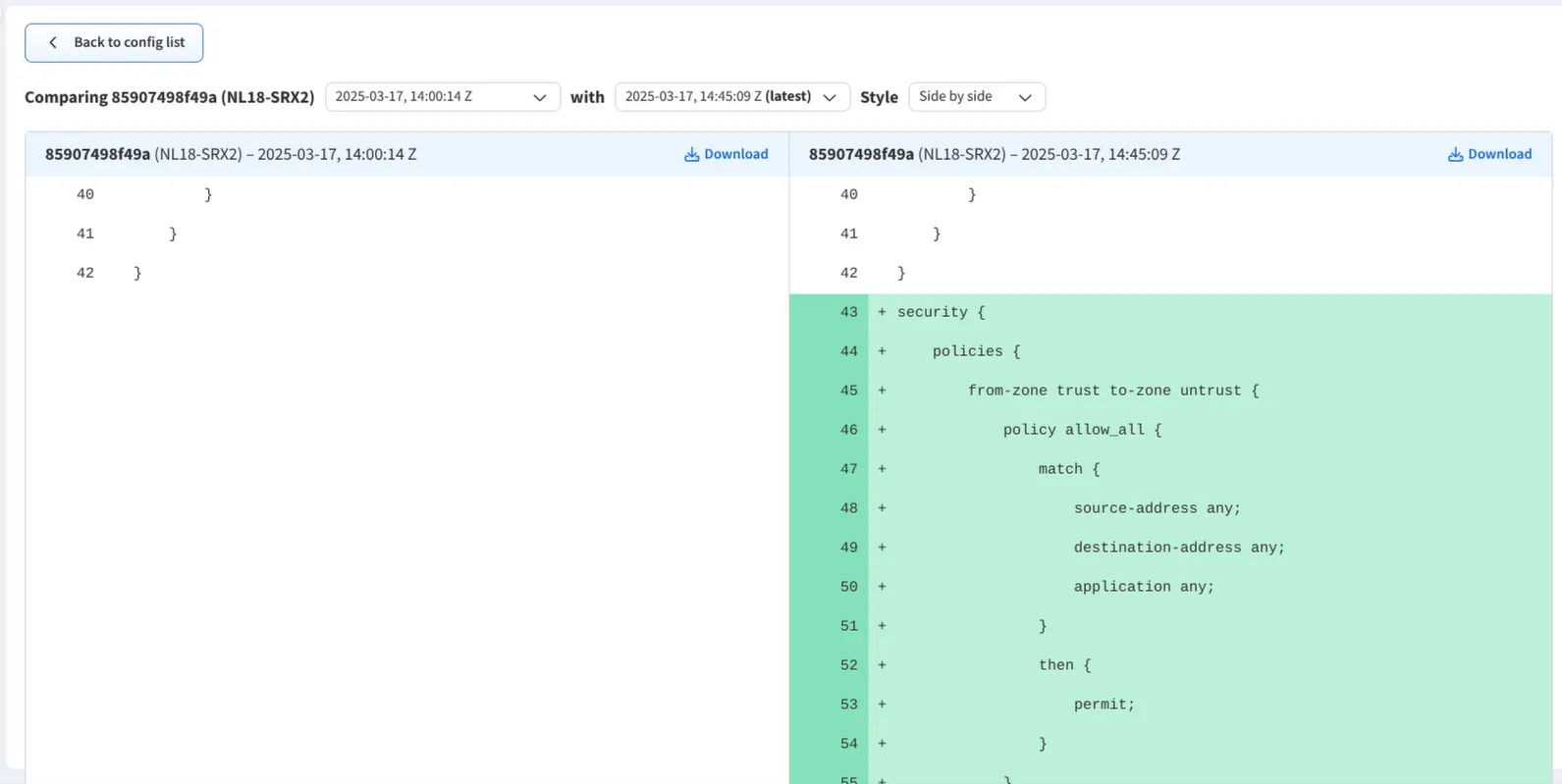

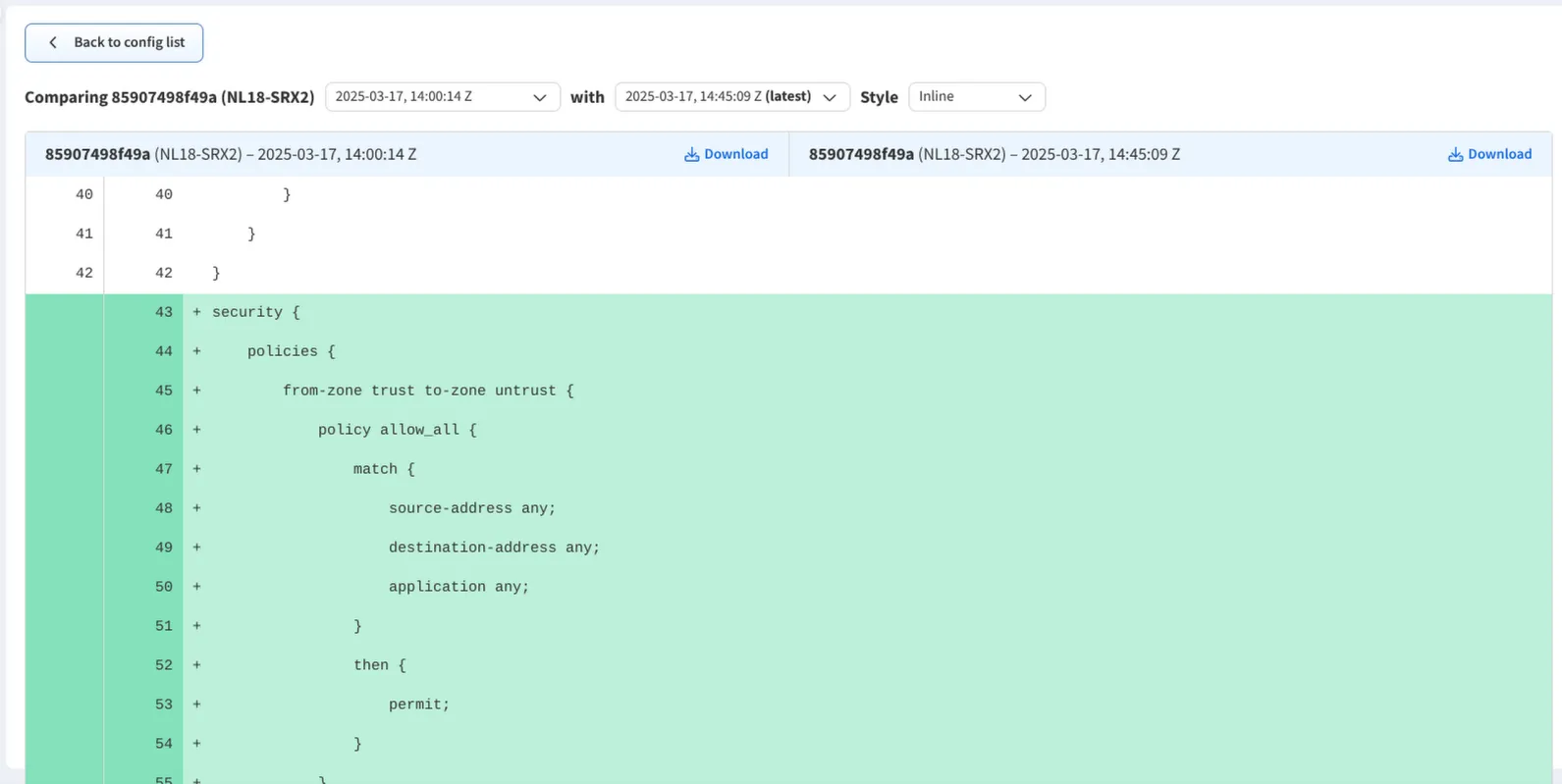

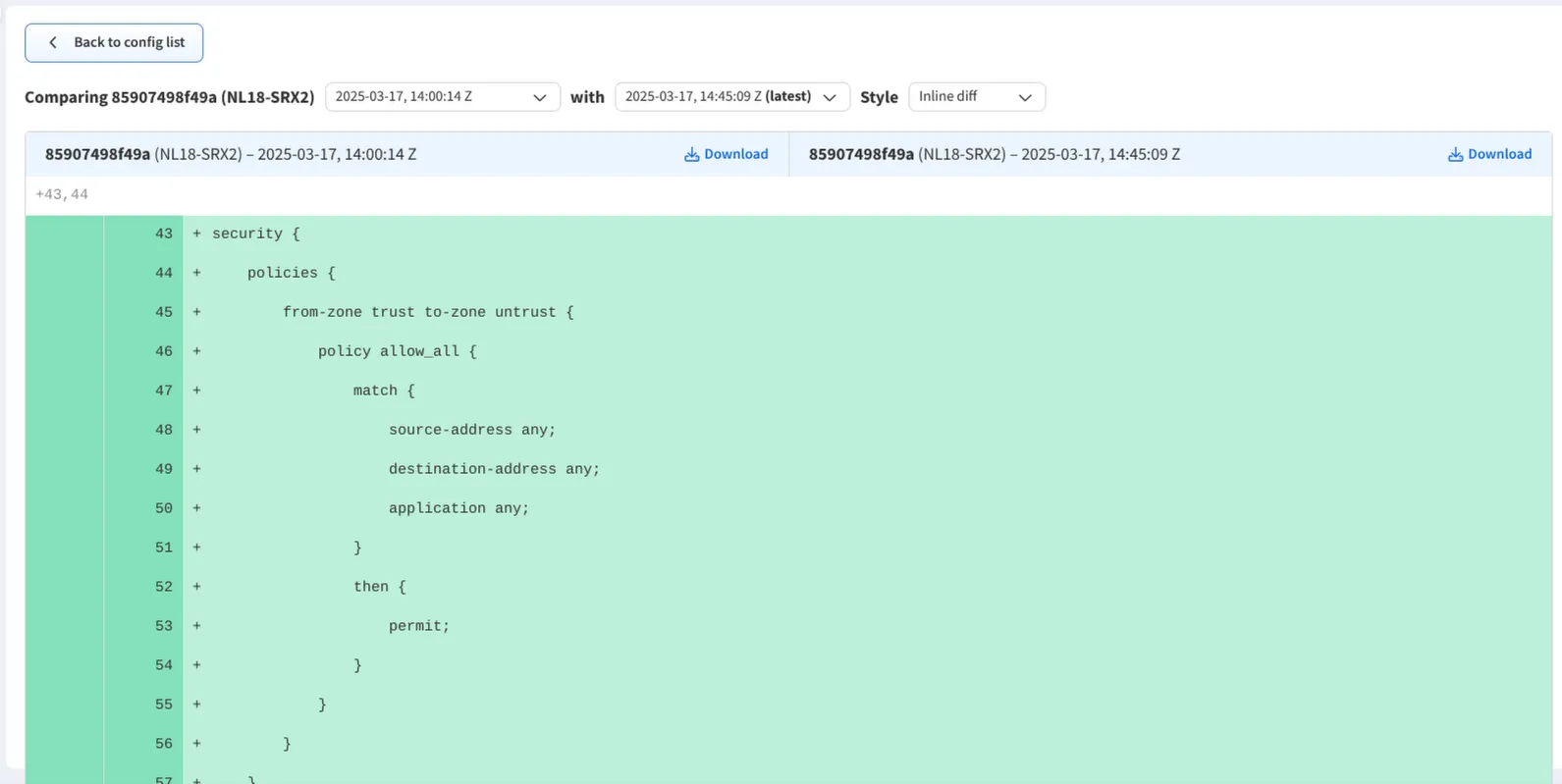

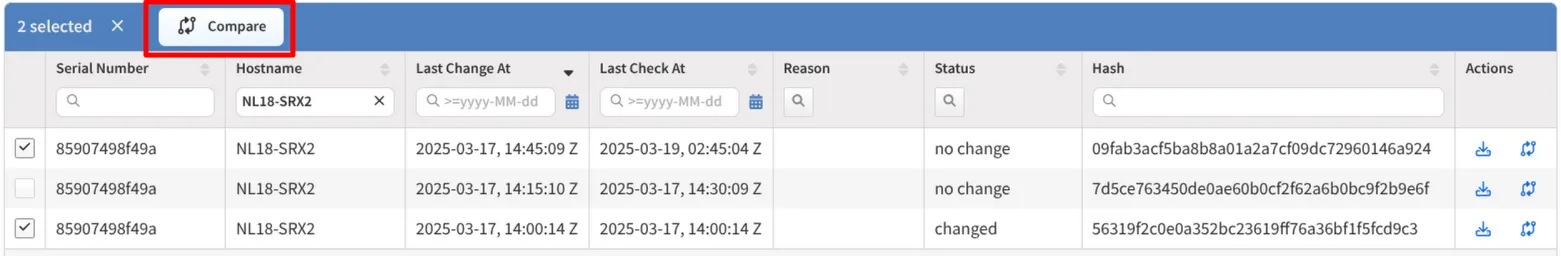

The table can be used to compare between two different configurations directly from the user interface. This is done by selecting the Before and After states to compare, and the resulting differences can be displayed side-by-side, inline with all rows, or inline with only rows where the changes have occurred.
