Device Credentials

IP Fabric interacts with the network infrastructure devices by running show commands through CLI using SSH or Telnet. Credentials added in Settings → Discovery & Snapshots → Discovery Settings → Device Credentials will be used by IP Fabric to access the CLI of the network devices.

Credential Selection Logic

The credential priority can be changed using drag and drop. The credential selection algorithm will match the device’s IP address to the subnets specified in the credential’s Use in subnets field, and will try the credentials in the order of the longest prefix match. Within the same prefix match length, the credentials are tried in top-down order.

flowchart TD
    A([Start]) --> discoveryHistory{Is the IP address in<br/>the <strong>Management →<br/>Discovery History</strong><br/>table?}
    discoveryHistory --> |Yes|previousUsername[Try the previously discovered username.]
    discoveryHistory --> |No|configuredAuth{Does the IP address fall within<br/>the <strong>Use in subnets</strong> range in<br/>the <strong>Settings → Discovery & Snapshots →<br/>Discovery Settings → Device Credentials</strong><br/>table?}
    configuredAuth --> |Yes|tryAuth[Try the configured <strong>Device Credentials,</strong><br/>starting from the longest prefix match and<br/>using top-to-bottom order as a tie-breaker.]
    configuredAuth --> |No|loginFailed([<strong>Login failed.</strong>])
    tryAuth --> |Login succeeded|loginSucceeded([<strong>Login succeeded.</strong>])
    tryAuth --> |Login failed|otherCreds{Are there other<br/>credentials to try?}
    previousUsername --> |Login succeeded|loginSucceeded
    previousUsername --> |Login failed|configuredAuth
    otherCreds --> |Yes|tryNext[Try the next credential.]
    otherCreds --> |No|loginFailed
    tryNext --> |Login succeeded|loginSucceeded
    tryNext --> |Login failed|otherCreds

    style loginFailed fill:#dd3300
    style loginSucceeded fill:#33dd00
    linkStyle 2,4,6,8,10,12 stroke:red;
    linkStyle 1,3,5,7,9,11 stroke:green;

Configure Network Infrastructure Access

Read-only (Privilege 1) credentials are sufficient for basic functionality. Security-sensitive operations and advanced functionality might require higher privileges. See the full list of used command in the documentation.

When adding new credentials, you can limit the validity of the credentials just for a part of your network using the Use in subnets and Don’t use in subnets fields. Please be aware that the Use in subnets field will also affect the credential selection algorithm.

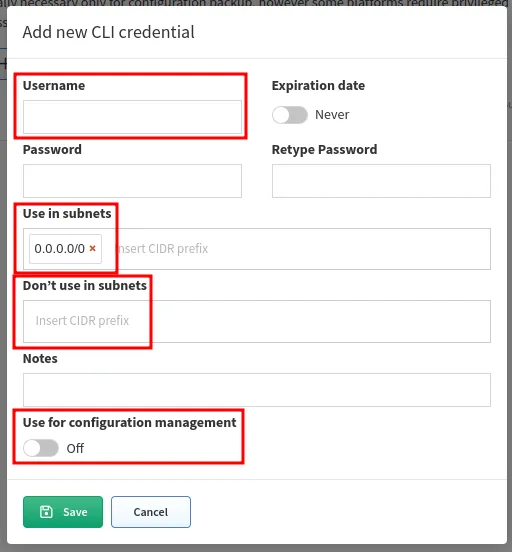

Add new CLI credential

Provided credentials can be used for configuration change tracking and saved configuration consistency (i.e., they allow commands such as show run and show start).

To use these credentials for configuration change tracking, please check the Use for configuration management box.

Password Character Restrictions

The password will only be decrypted if ASCII characters are used. If you are using special characters, please make sure that the password is within the [A-Za-z0-9+-!?@#$%^&*()_`~[]{}<>,./|\:;'" ] range.

(Optional) Passwords for Enable Mode

Privileged credentials are generally only necessary for configuration management. However, some platforms require privileged credentials to access basic network state information, such as MST spanning-tree state or 802.1X session information.

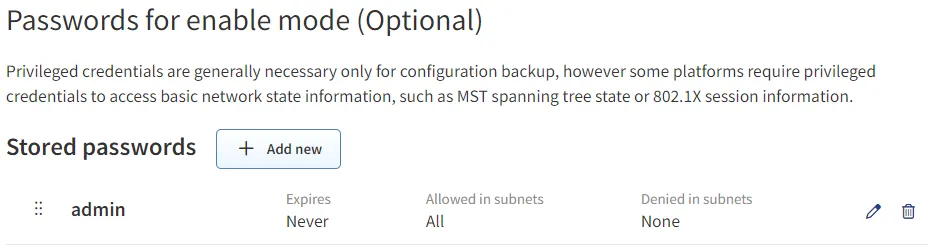

Passwords for enable mode
